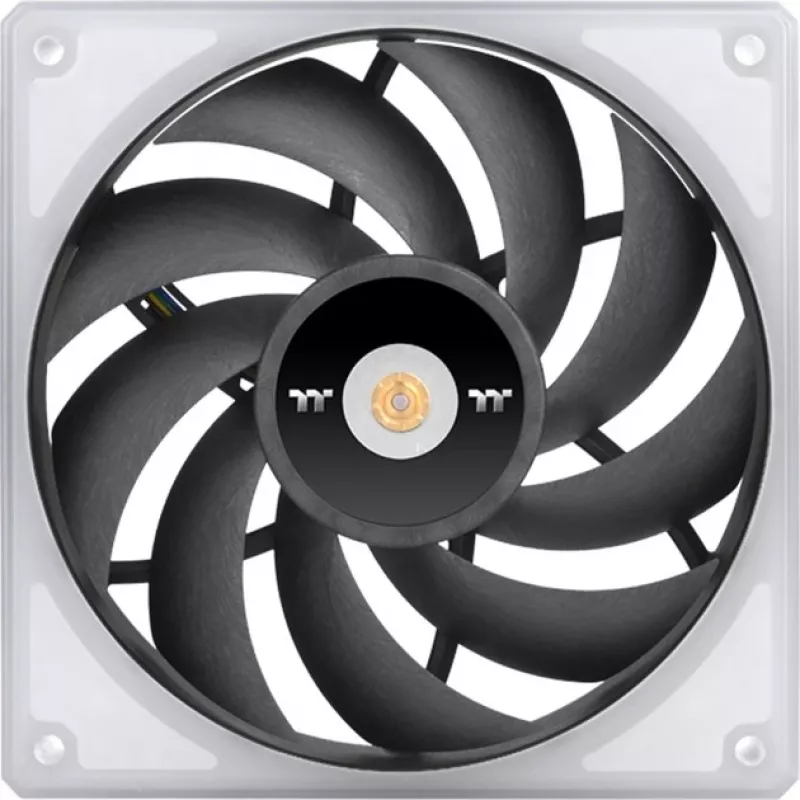

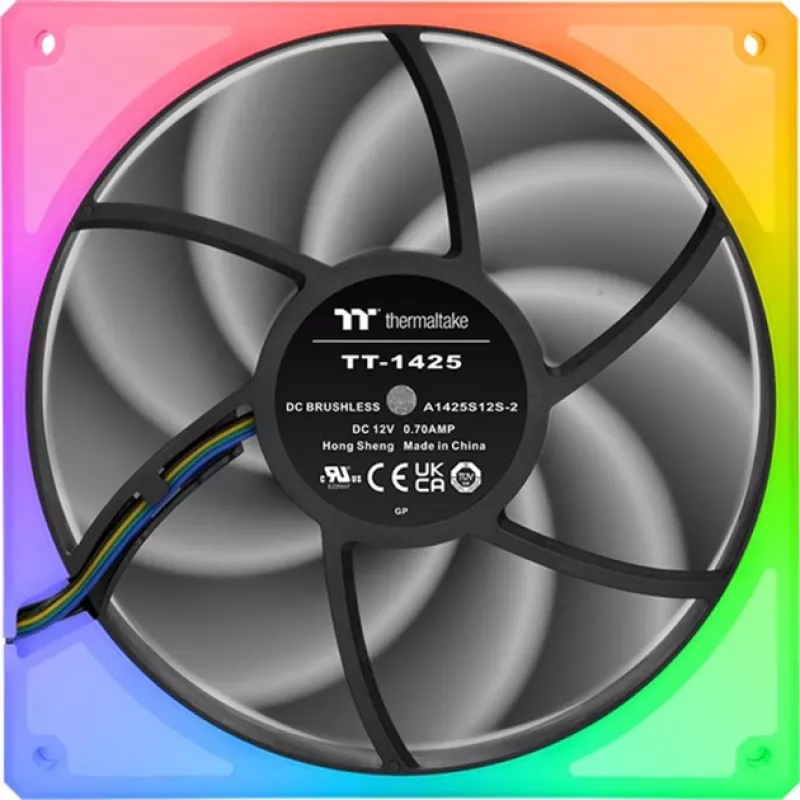

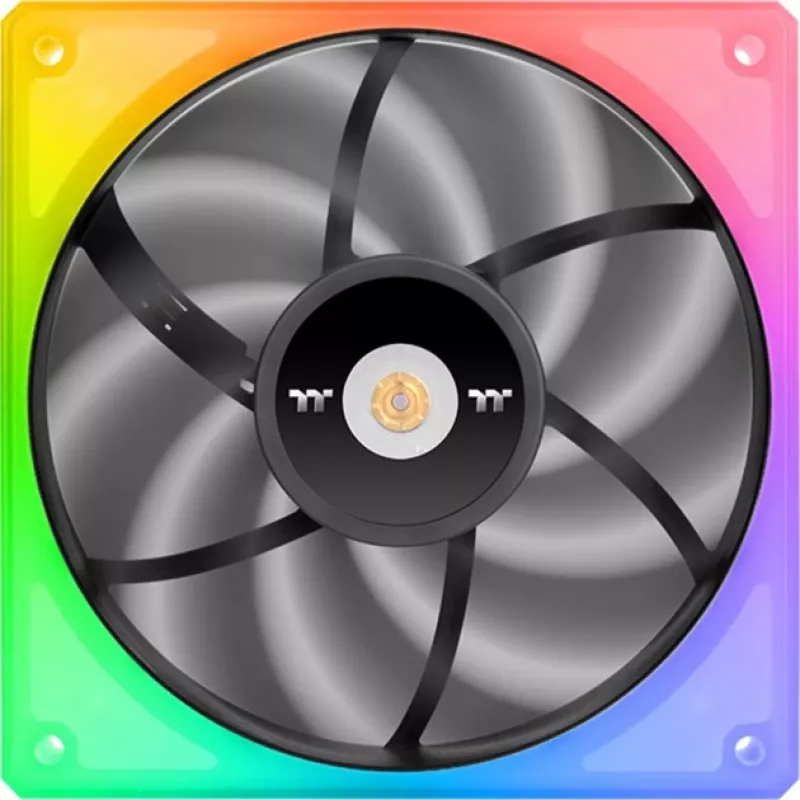

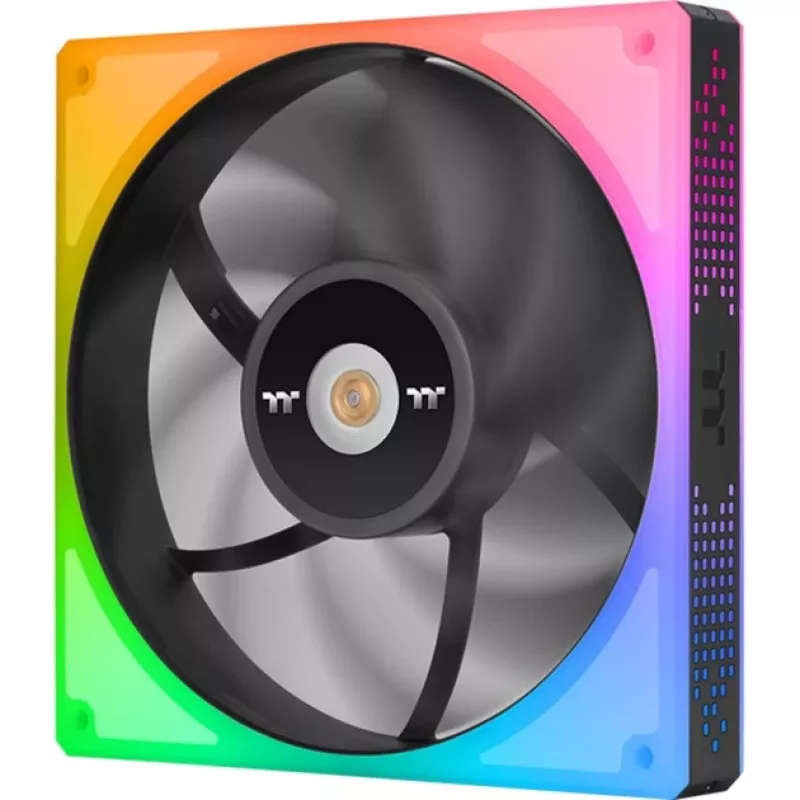

Ventoinha Thermaltake TOUGHFAN 14 RGB

The Thermaltake TOUGHFAN 14 RGB is a 140 mm case fan designed to combine strong airflow, high static pressure and customizable RGB lighting. It features a 4th generation software controller for stable TT RGB Plus synchronization, 24 addressable LEDs with 16.8 million colors integrated into a luminous frame, a full-steel motor hub for durability, and a 2nd generation hydraulic bearing for reduced noise and extended lifespan. Constructed with liquid crystal polymer (LCP) fan blades and supplied in white, this fan is suitable for system and radiator cooling where both performance and visual customization are required.

Advantages

TOUGHFAN 14 RGB delivers up to 2000 RPM and a consistent airflow of 107 CFM with 3.04 mm-H2O static pressure while maintaining a low noise level of 30.7 dB-A. The integrated 24-addressable LED frame supports 16.8M color effects and stable synchronization via the updated controller. A full-steel motor hub improves stability and durability, LCP blades reduce operating noise, and the 2nd generation hydraulic bearing prolongs service life. Transparent anti-vibration rubber pads dampen vibration and preserve lighting visibility from multiple angles.

Suitable for

• Case cooling for gaming and workstation PCs

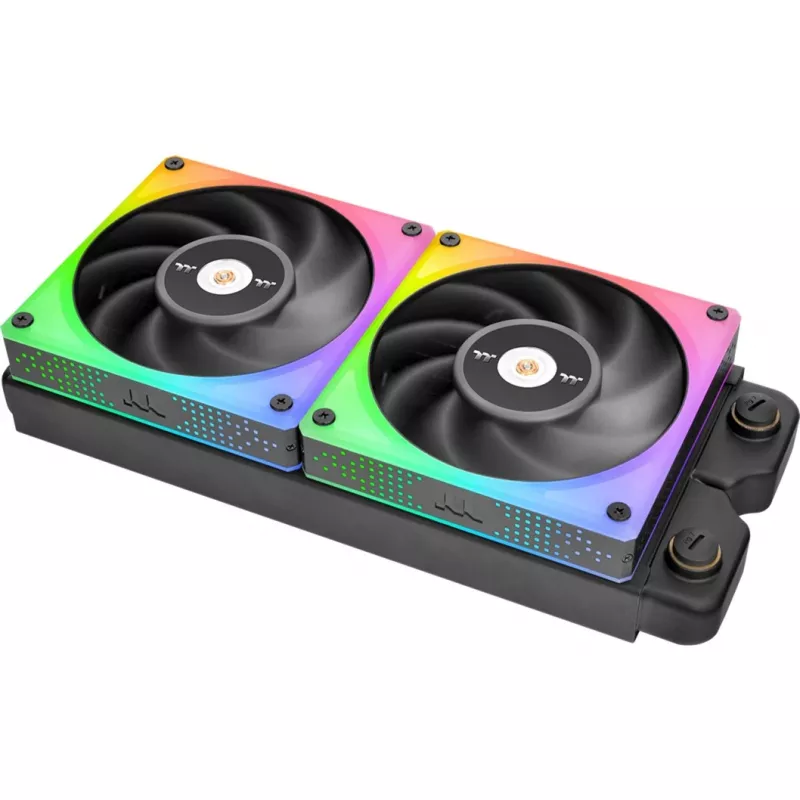

• Radiator and liquid-cooling setups requiring high static pressure
• Builds where RGB lighting synchronization with TT RGB Plus is desired

Key specifications

• Type: Fan
• Fan diameter: 140 mm
• Maximum speed: 2000 RPM
• Airflow: 107 CFM
• Static pressure: 3.04 mm-H2O
• Noise level: 30.7 dB-A
• Bearing: 2nd generation hydraulic bearing
• Lighting: 24 addressable LEDs, 16.8 million colors, TT RGB Plus compatible
• Motor hub: Full steel
• Blade material: Liquid crystal polymer (LCP)
• Colour: White

How to use

Install the TOUGHFAN 14 RGB in your case or on a radiator using the included mounting hardware and the transparent anti-vibration rubber pads on each corner to minimize vibration. Connect the fan power and RGB cables according to your motherboard or Thermaltake controller instructions; use the TT RGB Plus software to configure lighting effects and synchronize multiple devices. Ensure the fan orientation matches the intended airflow direction for intake or exhaust and verify secure cable routing to prevent interference with other components.

Recommendations

For optimal cooling and lighting performance, position TOUGHFAN 14 RGB where airflow is unobstructed and set fan curves in BIOS or software to balance noise and cooling. Use TT RGB Plus for stable multi-device synchronization and periodically check mounting pads and bearings for dust to extend service life.
