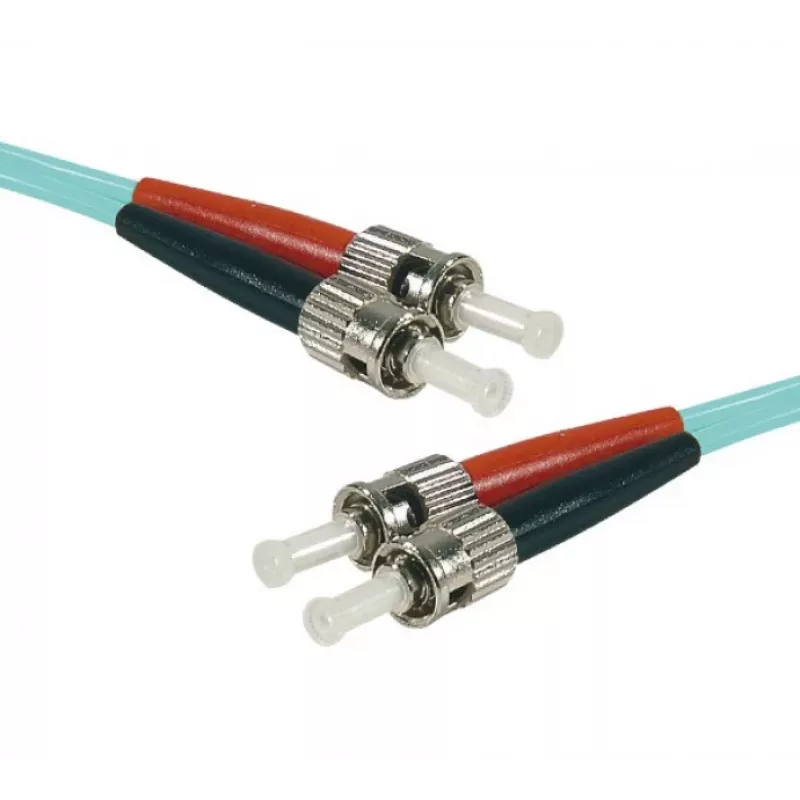

CUC Exertis Connect 392773 cabo de fibra ótica 3 m ST OM3 aqua

This OM3 multimode fibre optic cable with ST connectors stands out for its aqua-coloured LSZH jacket, combining high bandwidth with safety in demanding environments. The duplex zipcord construction keeps the two fibres neatly paired while allowing easy separation for individual routing.

Highlights

• OM3 multimode fibre supports 10 Gigabit Ethernet up to 300 m at 850 nm
• ST connectors on both ends provide a reliable bayonet-style connection
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• 50/125 µm core/cladding diameter optimised for laser-based transmission

In daily use

This 3 m patch cable is ideal for short-distance, high-speed links in data centres, enterprise networks, and fibre-to-the-desk applications. The aqua jacket is the industry-standard colour for OM3, making it easy to identify among other fibre types. The ST connectors are robust and suitable for frequent reconnections, though they are larger than LC or SC.

Full specifications

• Cable length: 3 m
• Fibre type: OM3 multimode
• Connector 1: ST
• Connector 2: ST
• Core/cladding diameter: 50/125 µm
• Jacket material: LSZH
• Jacket colour: Aqua
• Cable construction: Duplex zipcord
• Insertion loss: max 0.3 dB per connector
• Return loss: min 20 dB
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C

Final note

A dependable OM3 patch cable for high-speed multimode links, with the safety of an LSZH jacket.
