Datalogic PowerScan PM9600 - kit RS-232 - leitor de códigos de barras (PM9600-HP433RBK20)

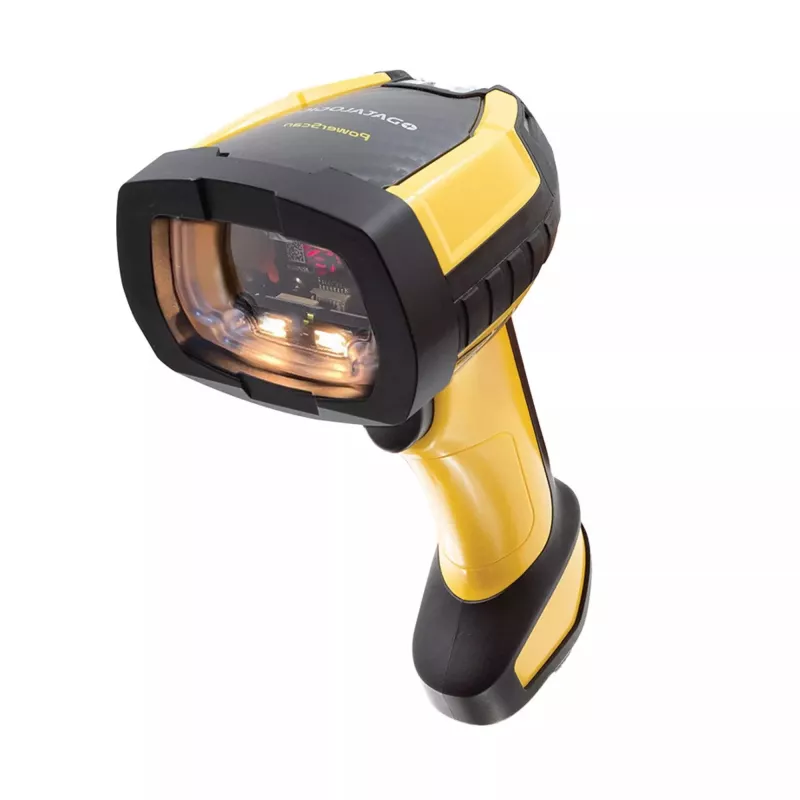

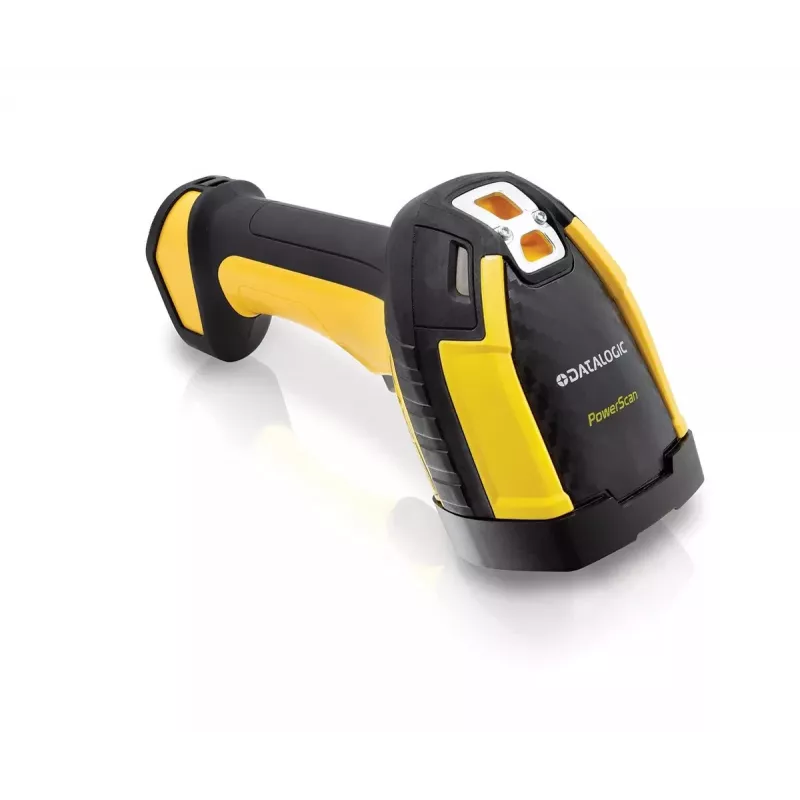

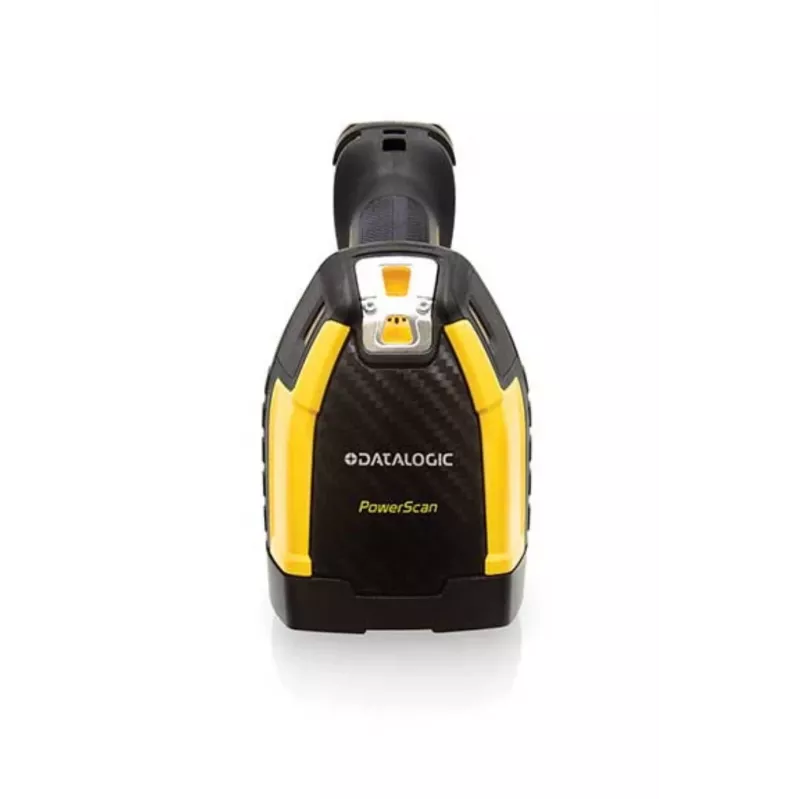

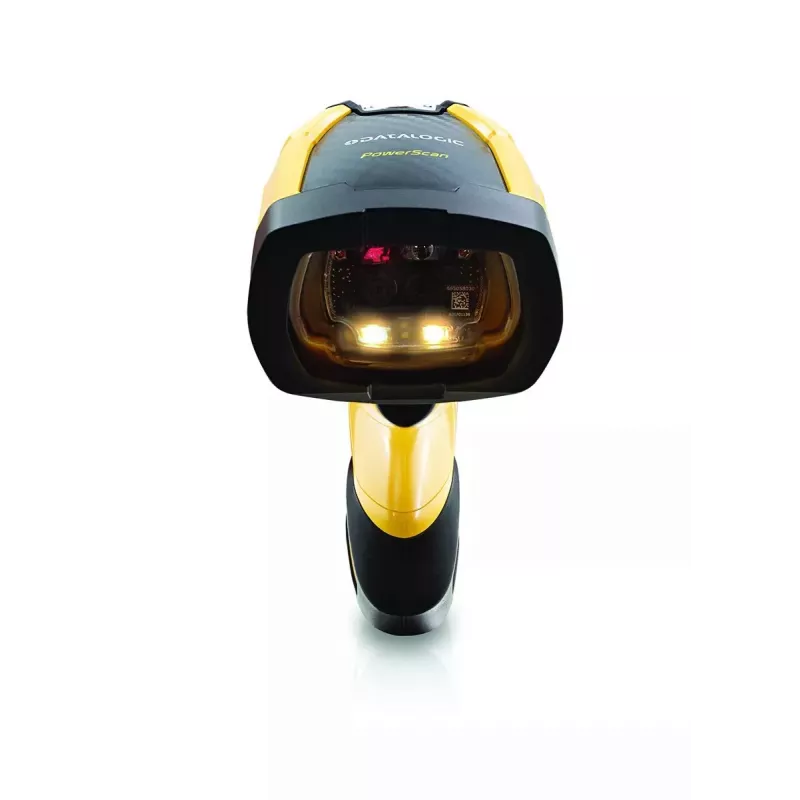

With an open-air communication range of up to 50 metres, the Datalogic PowerScan PM9600-HP433RBK20 keeps critical scanning operations moving across warehouses, loading docks, and production floors. This high-performance 2D area imager captures 1D, 2D, and postal codes with precision, even on damaged or poorly printed labels.

Overview

The PowerScan PM9600 is Datalogic's flagship industrial handheld scanner, engineered for the toughest environments. This kit includes the PM9600 scanner, a desk/wall mount cradle with RS-232 interface, power supply, and serial cable. The scanner communicates wirelessly via Datalogic's STAR Cordless System at 433 MHz, delivering reliable data transmission without the clutter of cables.

What stands out

• Exceptional durability: IP65-rated against dust and water, withstands 2.5 m drops onto concrete.
• Long-lasting removable lithium-ion battery: 3350 mAh capacity delivers up to 100,000 scans per charge.
• Datalogic's 'Green Spot' technology provides instant visual confirmation of a good read.
• Wide operating temperature range from -20 °C to 50 °C for use in cold storage or hot manufacturing areas.
• High-resolution wide VGA sensor (752 x 480 pixels) reads 1D codes down to 4 mil and 2D codes down to 6.6 mil.

Technical details

• Scanner type: Handheld industrial barcode scanner
• Scanning technology: 2D area imager (high performance)
• Connectivity: Wireless RF (433 MHz) to cradle; cradle interface: RS-232
• Decode capability: 1D, 2D, postal codes, Digimarc
• Battery: Lithium-Ion, 3350 mAh, removable, rechargeable in approximately 4 hours
• Feedback: Beeper, Green Spot, good read LED
• Colour: Black / Yellow
• Kit contents: Scanner, desk/wall mount cradle, power supply, RS-232 serial cable

Our verdict

The PM9600-HP433RBK20 is a top-tier choice for demanding industrial applications where wireless freedom, ruggedness, and decoding performance are non-negotiable. Its long battery life and reliable RF link minimise downtime, while the RS-232 cradle ensures easy integration with existing systems.
