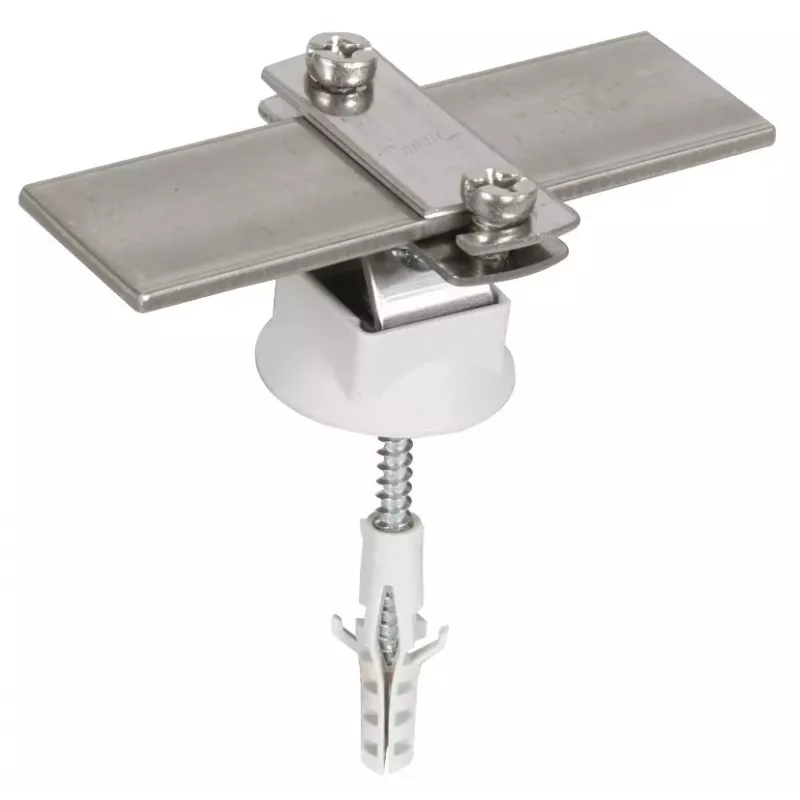

DEHN suporte de condutor NIRO FL30/Rd6 mm aço inoxidável para proteção contra raios 274230

Conductor holder for securing flat conductors up to 30 mm width or round conductors up to 6 mm diameter in lightning protection and earthing systems. Made from stainless steel (NIRO) for high corrosion resistance and designed for outdoor surface mounting.

Advantages

Stainless steel construction ensures durability in harsh weather conditions. The clamp-type design provides secure fixation of one conductor, suitable for both flat and round types.

Suitable for

• Lightning protection systems (LPS)
• Earthing systems
• Outdoor installations exposed to weathering

Key specifications

• Material: Stainless steel (NIRO)
• Max. flat conductor width: 30 mm
• Max. round conductor diameter: 6 mm
• Mounting method: Surface mount
• Corrosion resistance: High
• UV resistance: Yes
• Temperature range: -40 °C to +80 °C
• Standards: EN 62561-1

Recommendations

Use with appropriate fasteners for secure attachment to building structures. Verify conductor dimensions before installation to ensure proper fit.
