DEHNclip terminal de ligação equipotencial 372219 horizontal aço inoxidável para condutores redondos 8-10mm e planos 30x3,5mm

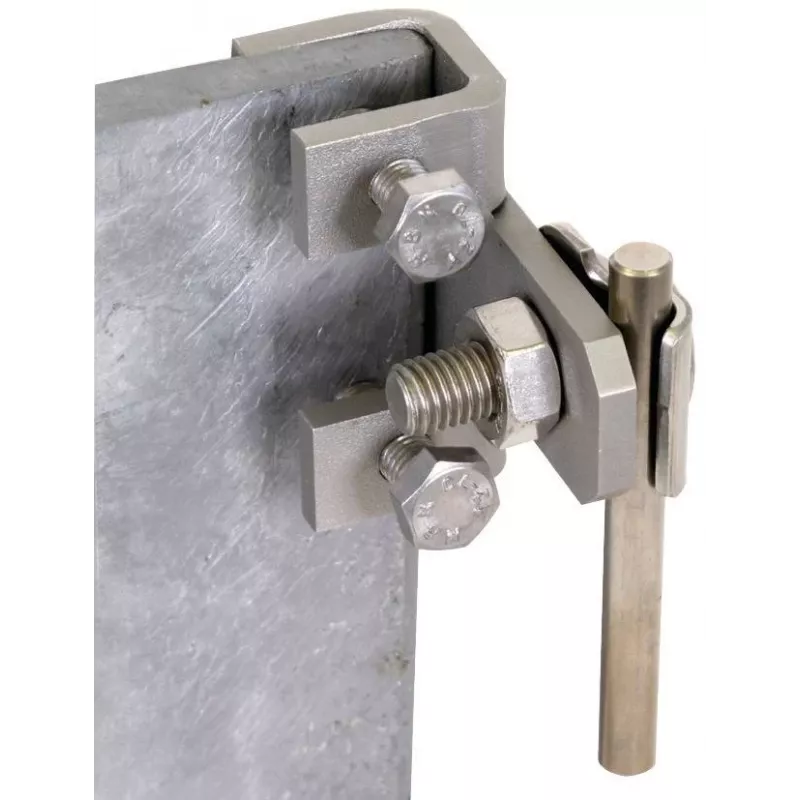

Equipotential bonding and earthing connections on structural steel or earth electrodes often suffer from corrosion or unreliable contact over time. The DEHNclip 372219 solves this by providing a low-resistance, corrosion-resistant clamp made entirely of stainless steel (NIRO). It clips onto the mounting surface and secures either round conductors from 8 to 10 mm diameter or flat conductors up to 30 x 3.5 mm with an M8 screw connection. The horizontal orientation suits installations where the conductor runs parallel to the mounting plane.

Who is it for

Electricians and lightning protection installers who need a durable, maintenance-free bonding clamp for main equipotential bonding bars, earth electrodes, or structural steel in outdoor or harsh environments.

Main features

• Stainless steel (NIRO) construction for high corrosion resistance and UV stability.
• Accepts round conductors Ø 8–10 mm or flat conductors 30 x 3.5 mm.
• M8 screw connection ensures a secure, low-resistance bond.
• Clip-on installation method speeds up mounting without special tools.
• Horizontal mounting orientation for parallel conductor routing.

Specifications

• Material: Stainless Steel (NIRO)
• Mounting orientation: Horizontal
• Conductor type (round): Ø 8 - 10 mm
• Conductor type (flat): 30 x 3.5 mm
• Connection type: Screw connection (M8)
• Application: Equipotential bonding, earthing, lightning protection
• Corrosion resistance: High
• Installation method: Clip-on
• Standard compliance: IEC 62561-1, VDE 0185-305-3 (EN 62305-3)
• Suitable for: Main equipotential bonding bars, earth electrodes, structural steel
• Temperature range: -40°C to +80°C
• Resistance: Low-resistance connection
• UV resistance: Yes
• Number of conductors: 1 (main connection)

Tips

For outdoor use, ensure the contact surfaces are clean before tightening the M8 screw to achieve the specified low-resistance connection. The stainless steel material requires no additional anti-corrosion coating.
