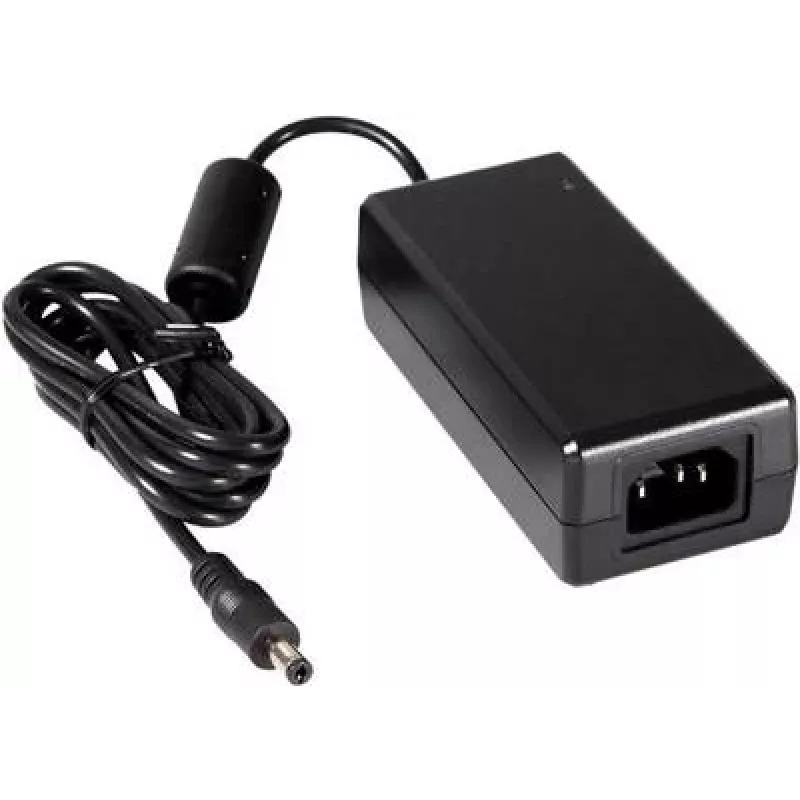

Dehner Elektronik ATS 072T-P240 Fonte de alimentação de secretária, tensão fixa 24 V/DC 3 A estabilizada

Many industrial and laboratory devices demand a stable 24 V DC supply, but generic adapters often drift under load, causing erratic behavior or even damage. The Dehner Elektronik ATS 072T-P240 eliminates that risk with a tightly regulated output, delivering clean power for sensitive electronics, LED lighting, motors, and test equipment.

Who is it for

Engineers, technicians, and hobbyists who need a dependable desktop power source for 24 V DC equipment. It suits automation systems, measurement instruments, security cameras, and any project requiring a fixed, stabilized voltage with up to 3 A current.

Main features

• Fixed 24 V/DC output with 3 A maximum current, providing 72 W of continuous power.
• Stabilized (regulated) design ensures minimal voltage fluctuation under varying loads.
• Wide input range: 90–264 V AC, 47–63 Hz, works worldwide without switches.
• High efficiency meeting DOE Level VI standards, reducing energy waste and heat.
• Built-in protections: overload, short circuit, and overvoltage safeguard both supply and load.
• Barrel connector (5.5 mm outer, 2.1 mm inner) with center-positive polarity, common for 24 V devices.
• IEC C8 input socket accepts standard figure-8 power cords (cord not included).
• Compact black plastic housing, suitable for benchtop or shelf placement.
• Certified to CE, TÜV, UL, cUL, GS, and RoHS for safety and environmental compliance.

Specifications

• Output voltage: 24 V/DC
• Output current: 3 A
• Output power: 72 W
• Input voltage: 90–264 V AC
• Input frequency: 47–63 Hz
• Efficiency level: VI (DOE Level VI)
• Output connector: Barrel 5.5 x 2.1 mm, center positive
• Input connector: IEC C8 socket
• Output cable length: approx. 1.2 m
• Protection: overload, short circuit, overvoltage
• Operating temperature: 0°C to +40°C
• Certifications: CE, TÜV, UL, cUL, GS, RoHS
• Housing material: plastic
• Colour: black

Tips

Verify your device's connector size and polarity before ordering—this unit uses a 5.5 x 2.1 mm barrel with center positive, which is standard for many 24 V devices but not universal. For continuous full-load operation, ensure adequate ventilation around the power supply. Use a properly rated IEC C8 power cord (often called a "figure-8" cord) to connect to mains.
