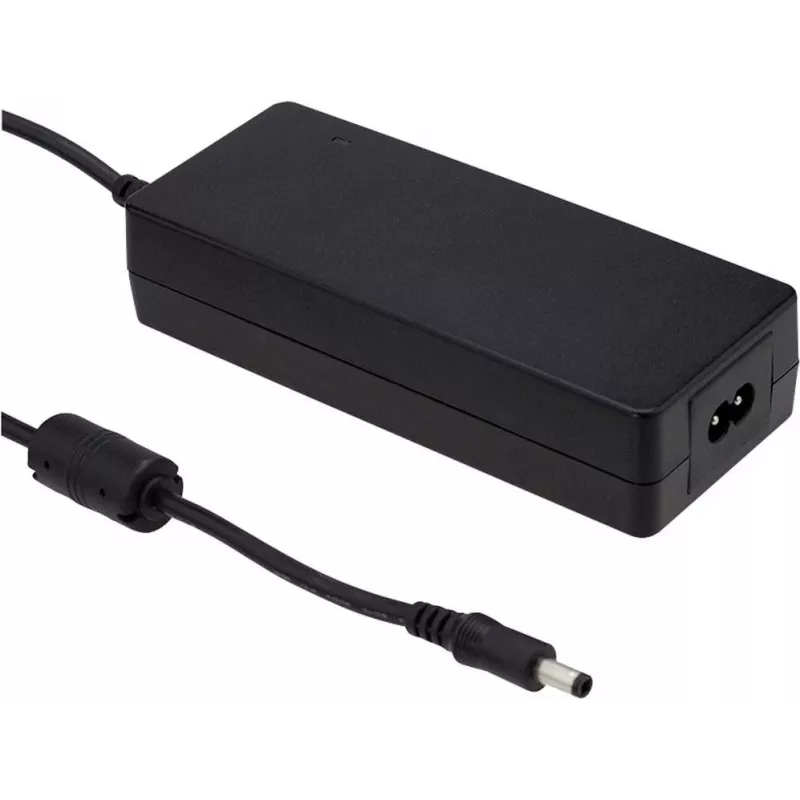

MEAN WELL GSM90B12-P1M 80W 12V 6,67A Fonte de alimentação AC/DC de secretária médica

Medical devices demand power supplies that are not only reliable but also safe for patient and operator contact. The MEAN WELL GSM90B12-P1M answers this need with a medically certified 80W desktop adapter that delivers a stable 12V DC output from any universal AC mains input. Its 2xMOPP isolation and low leakage current make it suitable for a wide range of healthcare applications, while its compact design and high efficiency ensure easy integration into medical carts, diagnostic equipment, and portable devices.

Who is it for

This power supply is engineered for medical equipment manufacturers, healthcare facilities, and system integrators who require a dependable, safety-compliant power source for devices such as patient monitors, infusion pumps, laboratory analyzers, and other medical electronics. It is also suitable for demanding industrial applications where enhanced isolation and reliability are critical.

Main features

• Medical safety approvals: IEC/EN/ANSI/AAMI ES60601-1 with 2xMOPP, ensuring patient and operator safety.
• Universal AC input: 80 ~ 264 VAC, 47 ~ 63 Hz, for worldwide use without switches or adjustments.
• High efficiency up to 91% and no-load power consumption below 0.15W, meeting Level VI energy standards.
• Comprehensive protections: short circuit, overload, over voltage, and over temperature.
• Low leakage current (< 100µA) and low ripple & noise (120mVp-p) for sensitive medical electronics.
• Standard 2.1 x 5.5mm DC plug with center positive, compatible with many devices.
• IEC 320-C14 input connector for standard AC power cords.
• Wide operating temperature range: -30 ~ +70°C, suitable for various environments.
• High reliability with MTBF over 100K hours.

Specifications

• Output voltage: 12V DC
• Output current: 6.67A
• Output power: 80W
• Input voltage range: 80 ~ 264 VAC
• Frequency range: 47 ~ 63 Hz
• Efficiency: up to 91%
• No-load power consumption: < 0.15W
• Leakage current: < 100µA
• Ripple & noise: 120mVp-p
• Operating temperature: -30 ~ +70°C
• Isolation class: Class I
• Protections: short circuit, overload, over voltage, over temperature

Tips

When integrating this power supply, ensure proper ventilation around the unit to maintain optimal operating temperatures. Use a hospital-grade AC power cord with the IEC 320-C14 inlet for compliance in medical environments. Verify that your device's DC input matches the 2.1 x 5.5mm plug and center-positive polarity before connection.
