Fonte de alimentação Mean Well 51405086 156W 24V comutada

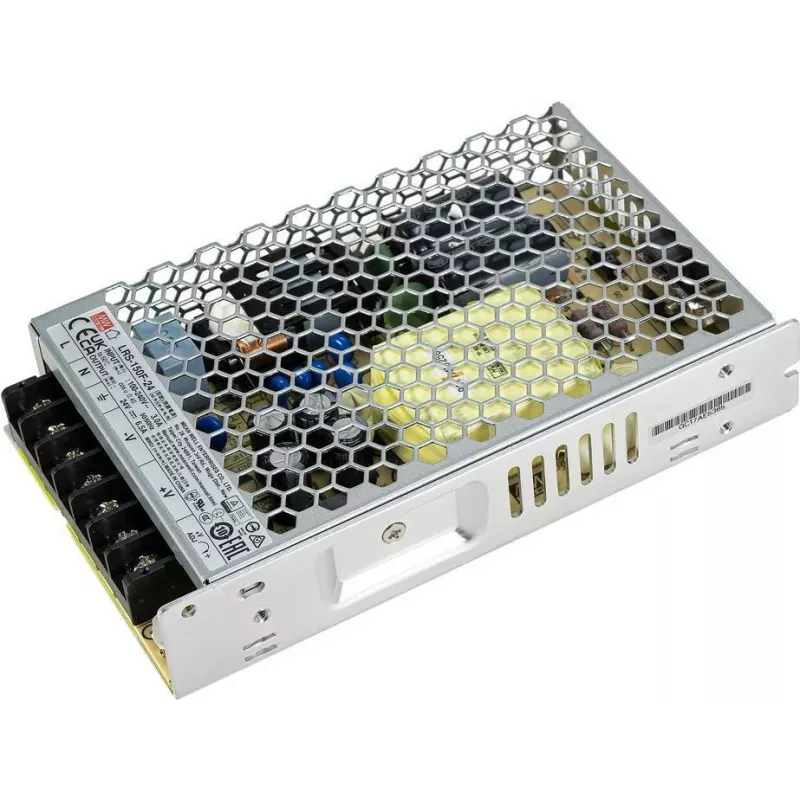

Mean Well 51405086 is a 156 W switching power supply that delivers a regulated 24 V DC output for industrial and commercial applications. The unit is intended for continuous operation in control cabinets, LED lighting installations and automation systems where consistent voltage and built-in protection features are required. The compact metal enclosure and standard mounting provisions allow integration into existing electrical panels and equipment racks.

Advantages

The device provides stable 24 V output at up to 156 watts with switching topology that improves efficiency and reduces heat dissipation compared to linear supplies. Built-in protections against short-circuit, overload and overvoltage help protect both the power supply and connected loads. Its compact dimensions and industry-standard mounting make it suitable for retrofit and new-install applications where space is limited. The robust construction supports reliable operation in industrial environments.

Suitable for

Key specifications

How to use

Install the power supply in a suitable enclosure or panel following local electrical regulations and ensuring adequate ventilation. Connect the AC input to the appropriate mains supply using correct wiring and a protective circuit breaker. Verify polarity and connect the 24 V DC output to the load, observing recommended wiring practices to minimize voltage drop. After wiring, apply power and confirm that the output voltage is within expected tolerance before connecting sensitive equipment.

Recommendations

Operate the unit within its rated temperature and load limits, provide clearance for heat dissipation, and use appropriate fusing on both the input and output sides. For long cable runs, consider larger conductor sizes to reduce voltage drop. Periodically inspect terminal connections and clean ventilation openings to maintain reliable performance.
