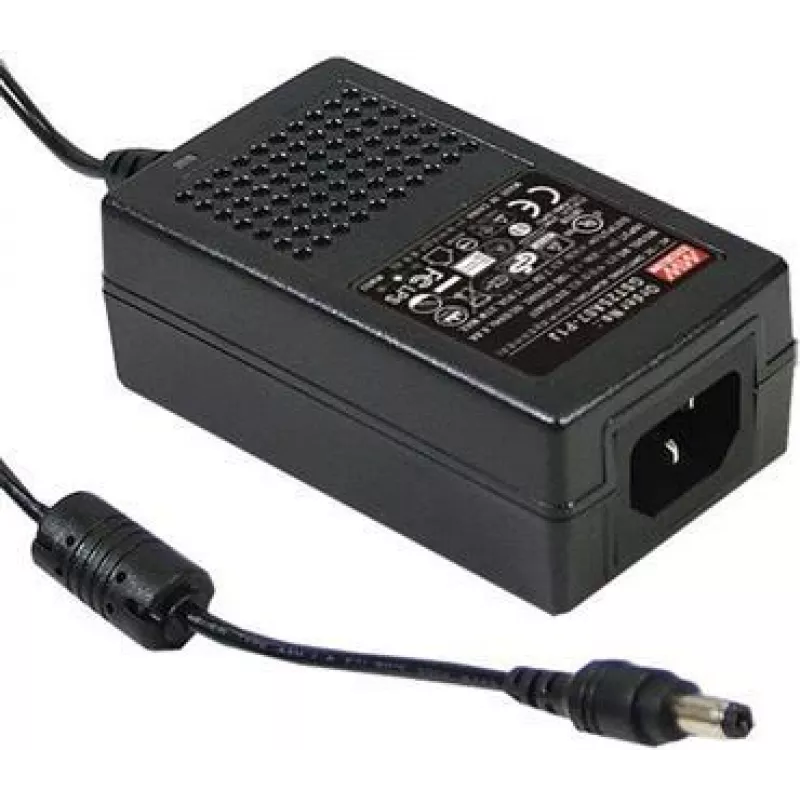

Fonte de alimentação MEAN WELL GST25A24-P1J 25W entrada 85-264V saída 24V

The MEAN WELL GST25A24-P1J is an AC-DC industrial desktop adapter delivering 24V DC at up to 1.04A with a maximum output power of 25W. It accepts a wide input voltage range of 85–264V AC and uses a 3-pole IEC320-C14 AC inlet. The compact housing (54 mm × 93 mm × 36 mm) is designed for desktop and embedded installations and the unit complies with RoHS requirements.

Advantages

This adapter provides a stable 24V output with up to 25W power, wide AC input range for global use, and a standardized IEC320-C14 inlet for easy connection. Its compact footprint simplifies integration into constrained spaces and the RoHS compliance ensures reduced hazardous substances.

Suitable for

• Small industrial equipment and control modules
• Embedded systems and single-board computers
• Laboratory bench power for low-power devices
• Replacement or upgrade for devices requiring 24V, 1.04A power

Key specifications

• Model: MEAN WELL GST25A24-P1J
• Input voltage: 85–264V AC
• Output voltage: 24V DC
• Output current: 1.04A (max)
• Output power: 25W
• AC inlet: 3-pole IEC320-C14
• Dimensions (W×D×H): 54 mm × 93 mm × 36 mm
• Compliance: RoHS

How to use

Connect the adapter to an appropriate AC mains supply within 85–264V using a matching IEC320-C13 power cord to mate with the IEC320-C14 inlet. Verify the device connected to the 24V DC output requires up to 1.04A and confirm correct polarity before powering. Place the adapter on a stable, ventilated surface and avoid covering the housing during operation.

Recommendations

For reliable operation, ensure the connected load does not exceed 1.04A and allow adequate airflow around the adapter. Use a correctly rated power cord and confirm compatibility with the target device’s input requirements. Do not expose the adapter to moisture, excessive dust, or temperatures outside the manufacturer's specified range.
