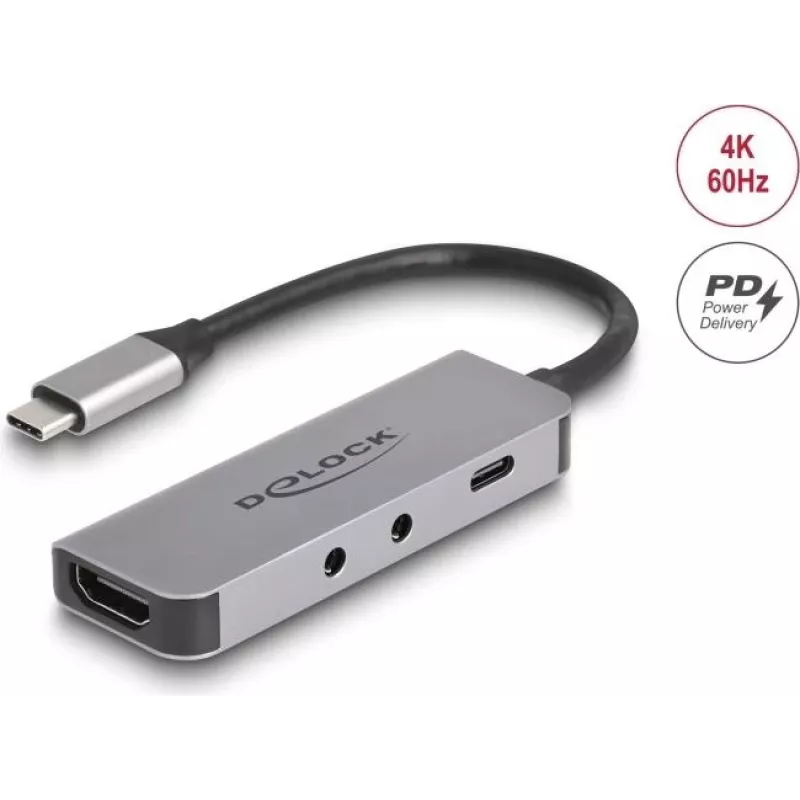

DeLOCK 61064 Hub USB Type-C 3.2 Gen 1 HDMI 3840x2160 60Hz

The DeLOCK 61064 USB Hub Type-C 3.2 Gen 1 is an adapter that connects a HDMI monitor to a computer with a USB-C™ port that supports DisplayPort alternate mode. It supports HDMI output up to 3840 x 2160 at 60 Hz and is compatible with laptops such as MacBook, Chromebook and other devices with USB-C or Thunderbolt™ 3/4 interfaces. The hub includes additional audio and USB connections and comes in a grey finish.

Advantages

The adapter provides a single-cable solution to drive a 4K 60 Hz HDMI display from a USB-C host with DisplayPort Alt Mode and also works on Thunderbolt 3 and 4 ports. It integrates two separate 3.5 mm audio jacks for headset/headphones and microphone use, and features a USB Type-C Power Delivery (USB PD 3.0) port that can charge the connected laptop or tablet with up to 95 watts while the display and peripherals are in use. The unit is compact with a short 0.15 m cable and a neutral grey colour.

Suitable for

• Connecting a 4K HDMI monitor to a USB-C or Thunderbolt 3/4 laptop
• Using a headset and separate microphone via the two audio ports
• Charging a laptop or tablet while using external display and peripherals (up to 95 W)
• Expanding connectivity for MacBook, Chromebook and similar USB-C devices

Key specifications

• Model: DeLOCK 61064
• Interface: USB-C 3.2 Gen 1 (DisplayPort Alt Mode compatible); Thunderbolt 3/4 compatible
• HDMI output: up to 3840 x 2160 @ 60 Hz
• Audio: two 3.5 mm ports (headset/headphone and microphone)
• Power Delivery: USB PD 3.0, up to 95 W
• Cable length: 0.15 m
• Colour: Grey

How to use

Connect the hub's USB-C plug to a USB-C port on the host device that supports DisplayPort alternate mode (or to a Thunderbolt 3/4 port). Plug an HDMI cable from the hub to the display to enable video output at resolutions up to 3840 x 2160 at 60 Hz. Connect headset and microphone to the corresponding 3.5 mm jacks as required. If you want to charge the host while using the hub, connect a USB-C power adapter to the hub's USB Power Delivery port; the hub supports charging up to 95 watts.

Recommendations

Ensure the host device's USB-C port supports DisplayPort alternate mode to enable HDMI video output. Use a high-quality HDMI cable rated for 4K60 to achieve the specified resolution and refresh rate. When using laptop charging, use a compatible power adapter that provides sufficient wattage (up to 95 W) and complies with USB PD 3.0.
