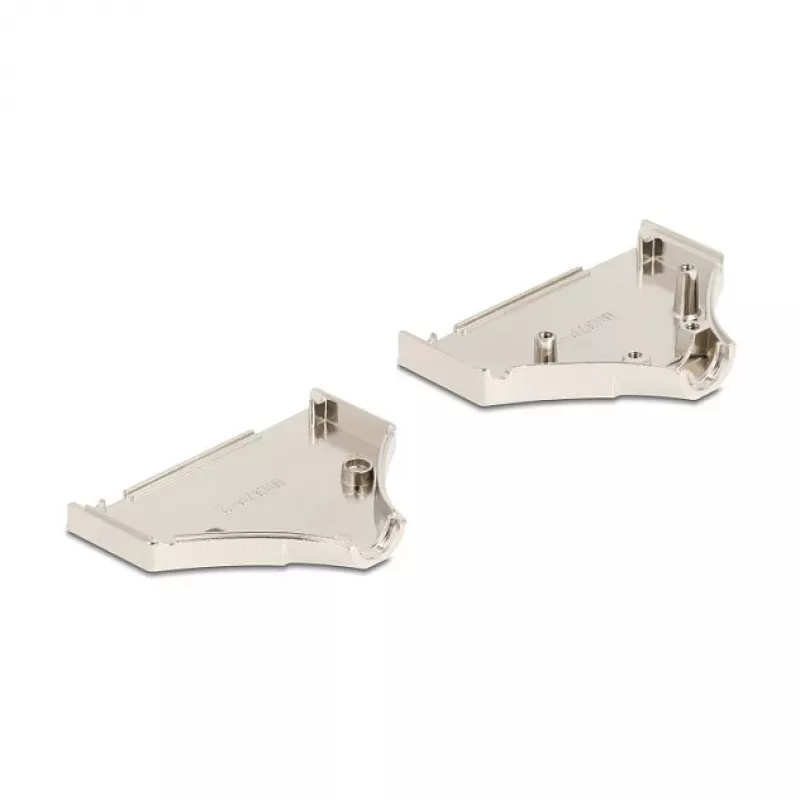

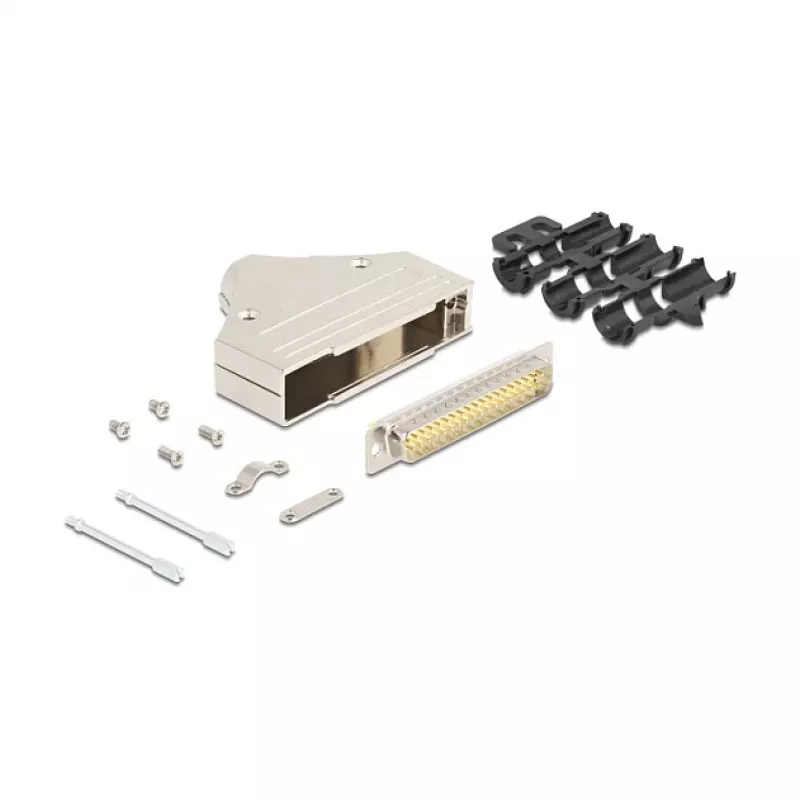

DeLOCK 67136 Ficha de cabo D-Sub 37 pinos prateado macho

The DeLOCK 67136 wire connector is a 37-pin D-Sub male connector designed for creating reliable electrical connections in equipment and cabling systems. Finished in silver, the connector has a compact housing with dimensions of 63.5 mm width, 47 mm depth and 15.6 mm height, making it suitable for use in confined spaces where a standard D-Sub interface is required.

Advantages

This metal-coloured D-Sub 37-pin male connector provides a stable mechanical fit and consistent electrical contact for multi-conductor applications. Its compact dimensions allow integration into panels, enclosures or cable assemblies without occupying excessive space. The standardized D-Sub pin layout supports interoperability with compatible female counterparts and adapters, ensuring straightforward replacement or system upgrades.

Suitable for

• Industrial control and automation wiring
• Data and signal transmission between devices
• Custom cable assemblies and repair of D-Sub connections
• Embedded systems, test equipment and laboratory setups

Key specifications

• Connector type: D-Sub 37-pin, male
• Housing colour: silver
• Width: 63.5 mm
• Depth: 47 mm
• Height: 15.6 mm
• Contact arrangement: 37 contacts in standard D-Sub layout

How to use

Mount the DeLOCK 37-pin D-Sub male connector into the appropriate panel cutout or attach it to a cable assembly according to the wiring diagram for your application. Ensure each conductor is correctly soldered or crimped to the corresponding pin, then secure the connector mechanically with screws or mounting hardware that fits the enclosure. After assembly, verify continuity and correct pin assignments with a multimeter before placing the equipment into service.

Recommendations

For reliable long-term performance, use this connector in environments within the device's mechanical and electrical limits, avoid exposure to corrosive agents, and maintain proper strain relief on attached cables. When replacing or installing connectors, follow industry-standard safety procedures for working with electrical connections.
