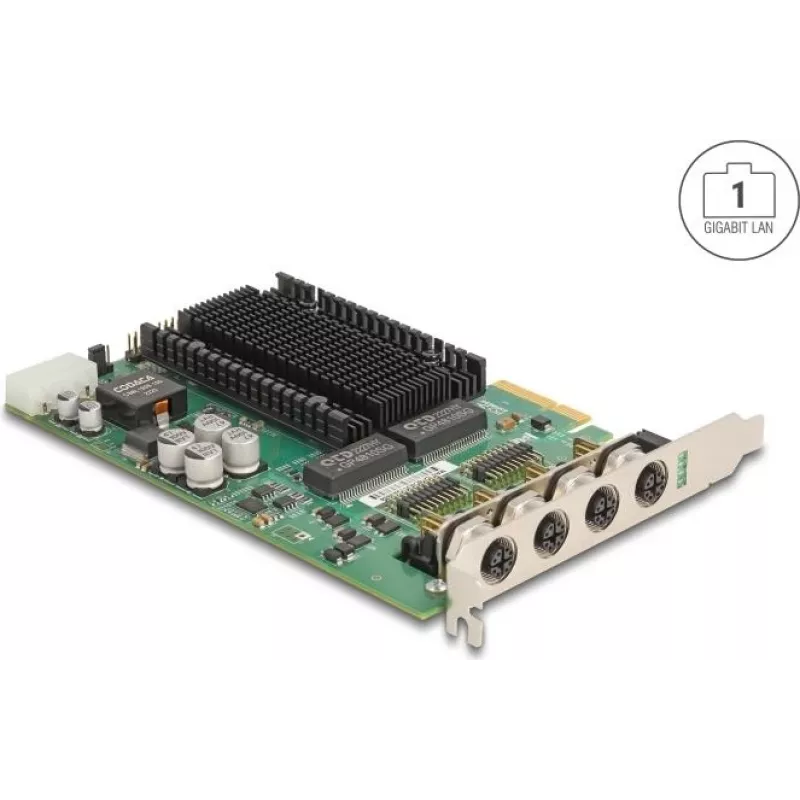

DeLOCK 86054 Placa de rede interna Ethernet 1000 Mbit/s PCI Express

The DeLOCK 86054 is an internal PCI Express Ethernet network card that provides four Gigabit RJ45 ports for wired connectivity. Designed for industrial and desktop environments, the adapter supports data transfer rates up to 1000 Mbit/s and is compatible with standard Ethernet protocols including IEEE 802.3 and IEEE 802.3ab. The card is intended for connecting devices requiring reliable wired networking and can be used where M12-connector components are present in automation or machine control systems.

Advantages

This Delock PCI Express network card offers four Gigabit ports and supports Power over Ethernet (IEEE 802.3af / 802.3at) to power PoE-enabled devices via the network cable. It supports relevant networking standards including IEEE 1588 for time synchronization and energy-efficient Ethernet (IEEE 802.3az). The card connects to a host system via PCI Express and is provided in a green-coloured design.

Suitable for

• Industrial automation and machine control systems with M12 connector components
• Desktop computers requiring additional wired Gigabit Ethernet ports
• Connecting PoE devices such as IP cameras or PoE splitters

Key specifications

• Manufacturer: DELOCK, model 86054
• Interface to host: PCI Express
• Network interface: 4 × RJ45 Gigabit Ethernet ports
• Maximum data transfer rate: 1000 Mbit/s
• Supported standards: IEEE 1588, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
• PoE support: IEEE 802.3af / 802.3at
• Product colour: Green
• EAN: 4043619860548

How to use

Install the DeLOCK 86054 into an available PCI Express slot on the host system following standard electrostatic discharge precautions. Secure the card to the chassis, connect network cables to the RJ45 ports and, if required, connect PoE-powered devices using compatible Ethernet cables. Configure the network settings in the operating system or network management software according to your environment and verify link and speed status through the OS or network diagnostic tools.

Recommendations

Use shielded Ethernet cables and proper grounding in industrial environments. Ensure the host system supports the required PCI Express lane and that PoE power budget is sufficient for connected PoE devices.
