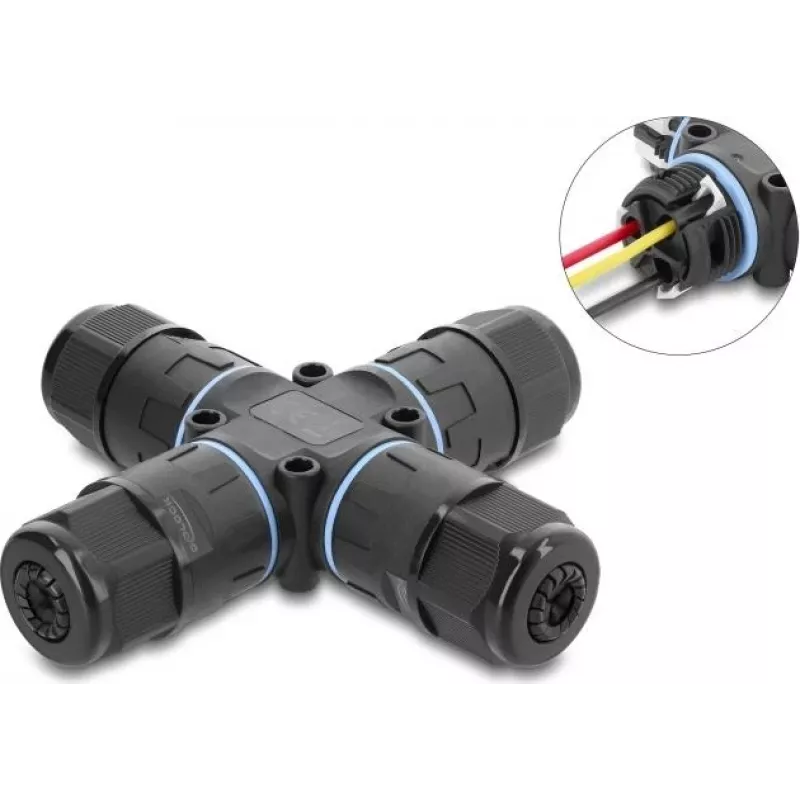

Delock Conector de Cabo em X com Terminal de Parafuso 3 Polos, IP68 à Prova de Água para Diâmetro de Cabo 5 - 9 mm, incl. Vedantes para 9 - 12 mm, sem Ferramentas Preto (87247)

The Delock X-Shape Cable Connector (model 87247) is a robust, waterproof connector designed for reliable and tool-free cable connections in demanding environments. With its innovative X-shape design and screw terminal technology, it ensures a secure and durable connection for 3-pin cables. The connector is IP68 rated, making it dustproof and waterproof, ideal for outdoor, industrial, and wet applications. It accommodates cable diameters from 5 to 9 mm directly, and with the included seals, it can also handle cables from 9 to 12 mm. The tool-free installation saves time and effort, while the black PA66 housing provides excellent durability and resistance.

Advantages

Tool-free installation for quick and easy setup. IP68 protection ensures reliable performance in harsh conditions. Versatile cable diameter range with included seals. Durable PA66 housing and copper contacts for long-lasting use. High voltage and current ratings suitable for various applications.

Suitable for

• Outdoor lighting and power connections
• Industrial machinery and equipment
• Marine and wet environment installations
• Automotive and agricultural applications

Key specifications

• Connector Type: Cable Connector
• Connector Shape: X-Shape
• Number of Pins: 3
• Connection Technology: Screw Terminal
• IP Protection Class: IP68
• Waterproof: Yes
• Dustproof: Yes
• Primary Cable Diameter Range: 5 - 9 mm
• Extended Cable Diameter Range (with included seals): 9 - 12 mm
• Installation Method: Tool-Free
• Color: Black
• Housing Material: PA66 (Polyamide 66)
• Contact Material: Copper
• Rated Voltage: Max. 450 V
• Rated Current: Max. 24 A
• Cable Cross-Section: 0.5 - 2.5 mm²
• Operating Temperature: -40 °C to 100 °C
• Number of Cable Entries: 4

Recommendations

For optimal performance, ensure cables are properly stripped and inserted fully into the connector. The included seals should be used when cable diameter exceeds 9 mm. This connector is not suitable for data or signal cables; use only for power connections.
