DELOCK Conector fêmea DC 5,5 x 2,5 mm conector fêmea versão de solda para encastrar 20 V 9 A

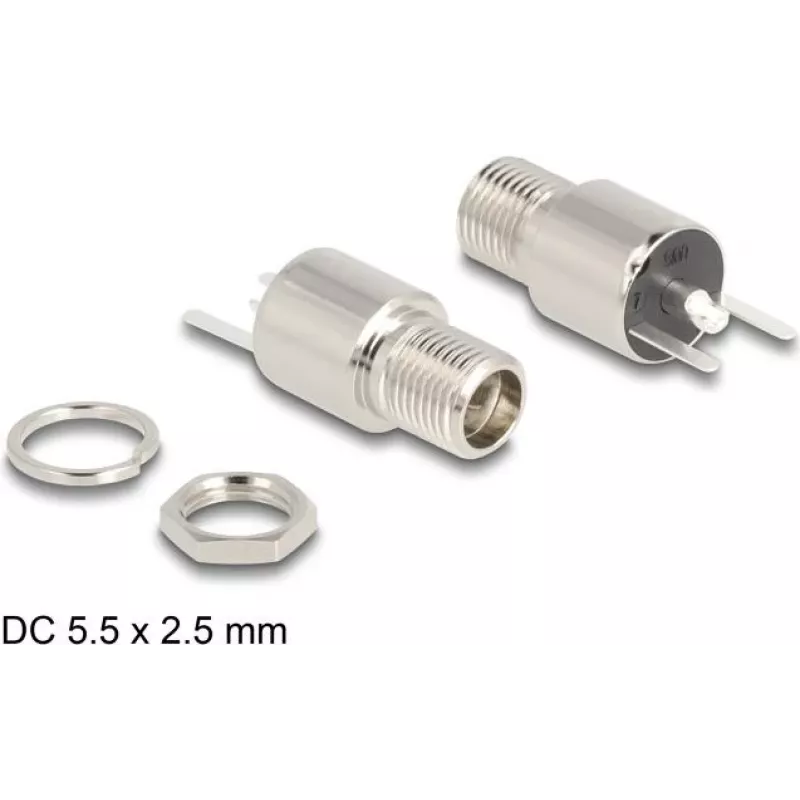

This DC female bulkhead connector by DELOCK provides a soldering-style panel mount for supplying power to housings or devices. It is a straight 5.5 x 2.5 mm female connector with a 12 mm length, designed for up to 20 V and 9 A applications and finished in silver colour.

Advantages

The connector offers a secure soldering connection and a panel-mount (bulkhead) form factor that simplifies installation into device enclosures. Its standard 5.5 x 2.5 mm dimensions ensure compatibility with common DC plugs, and the rated voltage and current (20 V, 9 A) accommodate a range of low-voltage power supplies.

Suitable for

Key specifications

How to use

Mount the bulkhead connector into an appropriately sized hole in the device housing and secure it according to the enclosure design. Solder the supply wires to the connector terminals following standard soldering practices, observing polarity. After soldering, verify mechanical stability and that the connector is flush with the panel. Connect a compatible 5.5 x 2.5 mm DC plug from the power adapter to provide power.

Recommendations

Use this connector within its rated limits (20 V, 9 A) and ensure correct polarity when wiring. For reliable operation, use proper soldering technique and strain relief on the cables to prevent mechanical stress on the solder joints.
