Delock Conjunto de blocos de terminais PCB 8 pinos, passo 3,81 mm, vertical, verde (10 unid.) 65974

8-pin PCB terminal block set with 3.81 mm pitch, rated for 8 A and 300 V, vertical orientation, green housing, 10 pieces per set.

Overview

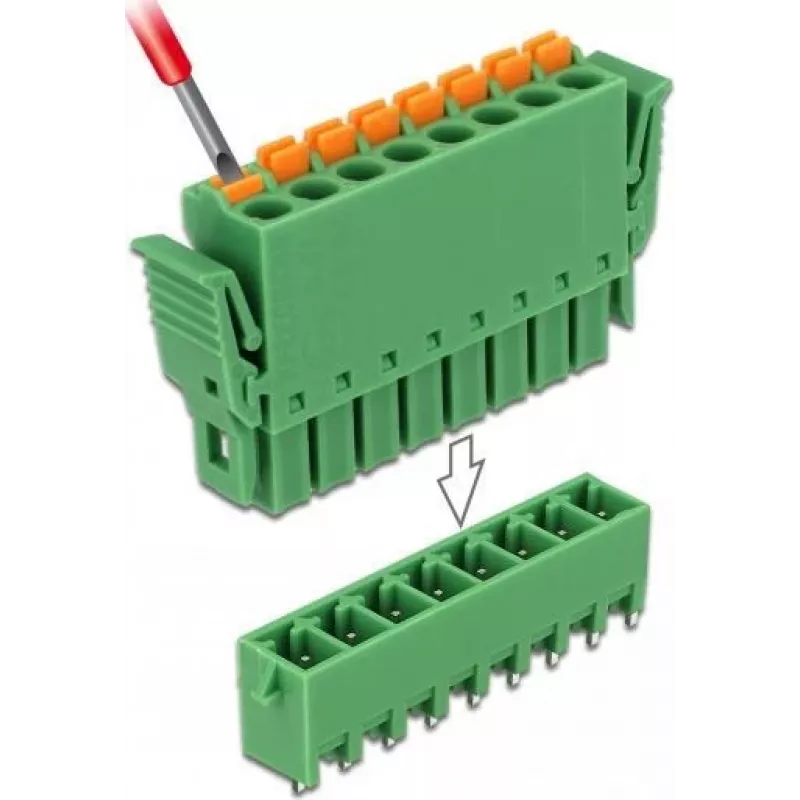

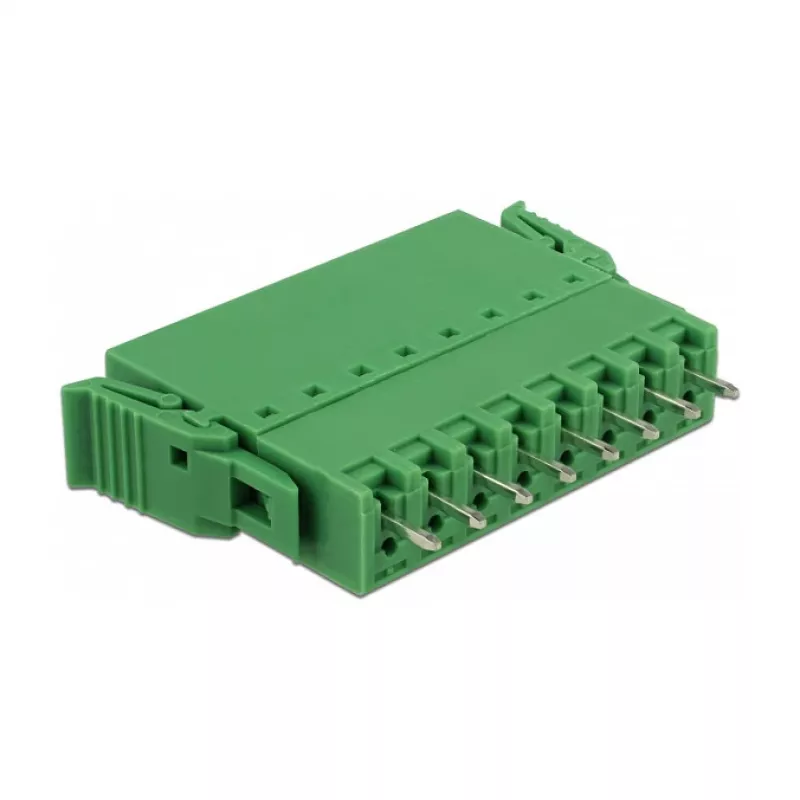

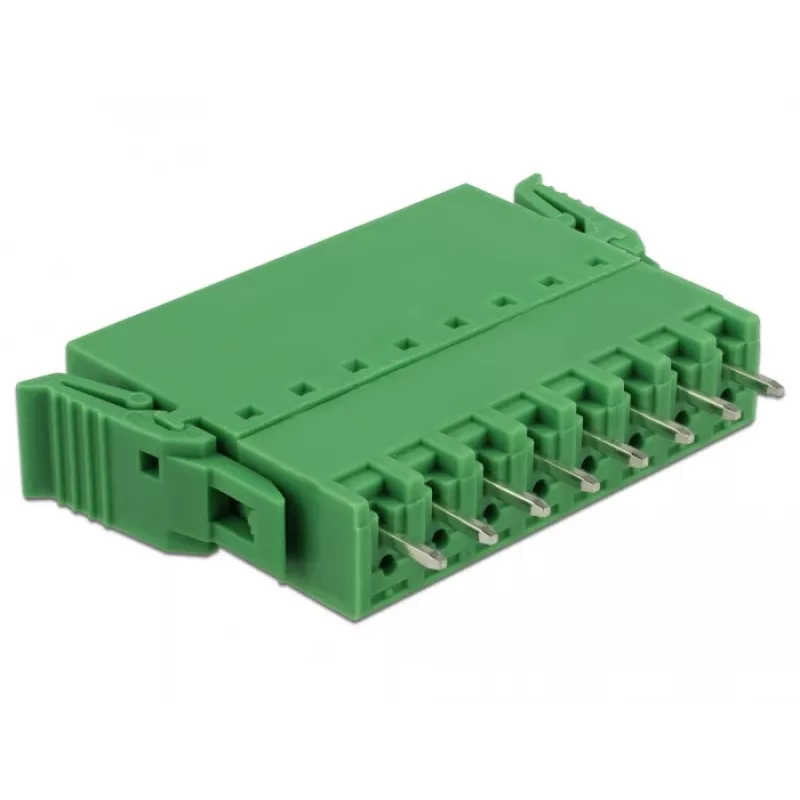

The Delock 65974 is a set of 10 vertical PCB terminal blocks, each with 8 poles and a 3.81 mm pitch. Designed for through-hole mounting, these screw terminals accept wires from 28 to 16 AWG (0.08 to 1.31 mm²) and are rated for 8 A at 300 V. The green PA66 housing is UL94V-0 rated, with brass contacts and zinc-plated steel screws.

What stands out

• 8 poles per block, 10 blocks per set
• 3.81 mm pitch for compact PCB layouts
• Vertical orientation for easy access
• Wide wire range: 28–16 AWG
• Operating temperature from -40 °C to 105 °C

Technical details

• Pitch: 3.81 mm
• Number of poles: 8

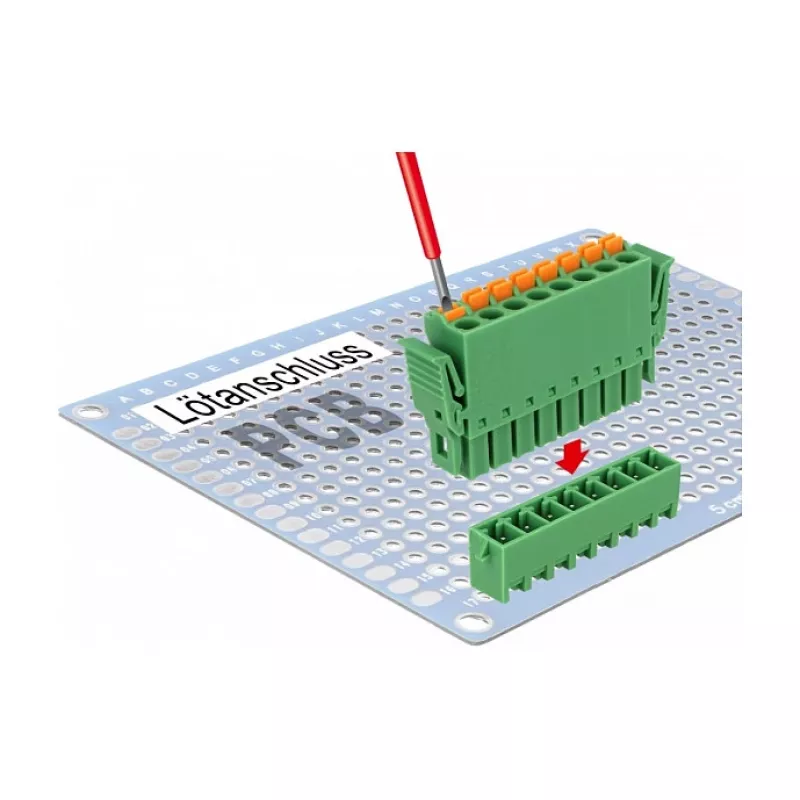

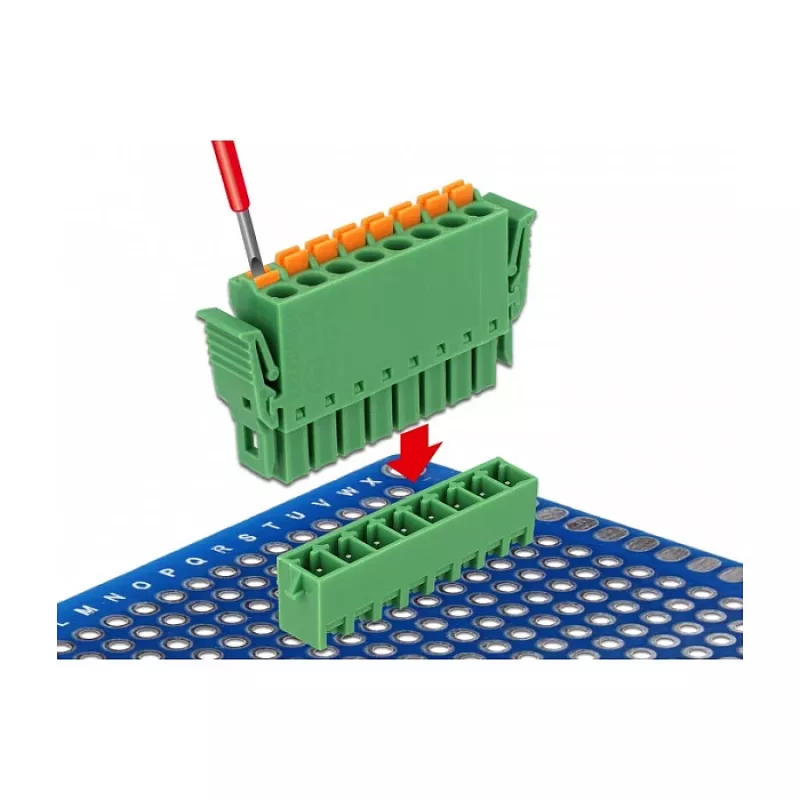

• Mounting type: Through-hole PCB
• Orientation: Vertical
• Connector type: Screw terminal
• Rated current: 8 A
• Rated voltage: 300 V
• Wire gauge: 28–16 AWG
• Wire cross section: 0.08–1.31 mm²
• Operating temperature: -40 °C to 105 °C
• Housing material: PA66 (UL94V-0)
• Contact material: Brass, tin-plated
• Screw material: Steel, zinc-plated
• Insulation resistance: 500 MΩ at 500 V DC
• Withstanding voltage: 2000 V AC for 1 minute
• Screw torque: 0.2 Nm
• Colour: Green
• Quantity per set: 10 pieces

Our verdict

A reliable set of vertical PCB terminal blocks for industrial and prototyping applications, offering a compact pitch and robust electrical ratings.
