DeLOCK D-Sub 25 pinos macho para RJ12 fêmea kit de montagem preto

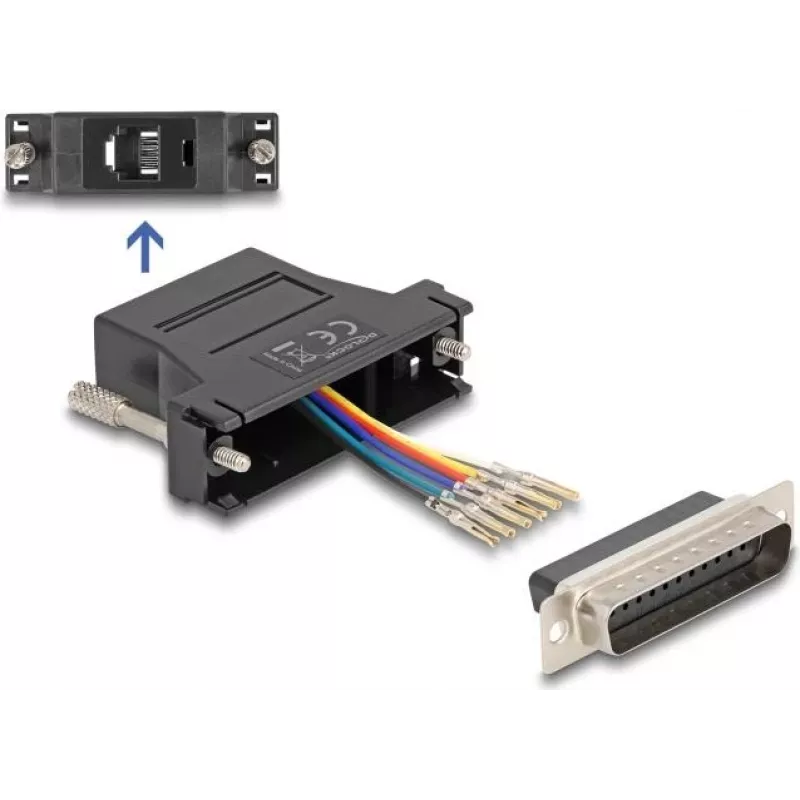

The DeLOCK D-Sub 25 pin male to RJ12 female Assembly Kit provides a D-Sub 25 male connector and an RJ12 female socket in a compact black housing. It is intended to expand or adapt a serial D-Sub 25 interface to an ISDN, telephone or RJ12 cable connection while allowing flexible assignment of pins. The kit’s contacts can be inserted into the D-Sub 25 shell according to the required wiring, and the sockets snap into place to ensure reliable contact.

Advantages

This assembly kit supports individual and flexible pin assignment for D-Sub 25 connections and enables use of standard RJ12/telephone or ISDN cables. The parts snap together with a slight click for secure mechanical and electrical contact. The black housing provides a discreet appearance and is suitable for installation in various devices or panels.

Suitable for

• Adapting a serial D-Sub 25 interface to RJ12/telephone or ISDN cabling
• Custom wiring and prototyping of D-Sub 25 connections
• Repairs or replacements of D-Sub 25 to RJ12 interfaces

Key specifications

• Connector 1: D-Sub 25 (male)
• Connector 2: RJ12 (female)
• Product colour: Black
• Compatible cable types: RJ12 / telephone / ISDN
• Manufacturer: DELOCK, MPN 67092, EAN 4043619670925

How to use

Insert the contact pins into the D-Sub 25 housing following the desired wiring scheme, then assemble the connector housing. Plug the RJ12 cable into the female socket until it clicks to secure the connection. Verify pin assignment and continuity with a multimeter before final installation to ensure correct signal routing.

Recommendations

Use this assembly kit for low-voltage serial and telephony connections. Avoid exposure to moisture and excessive mechanical strain. Confirm correct pinout for your equipment to prevent signal faults or damage.
