DeLOCK D-Sub 9 pinos macho para RJ12 fêmea kit de montagem vermelho

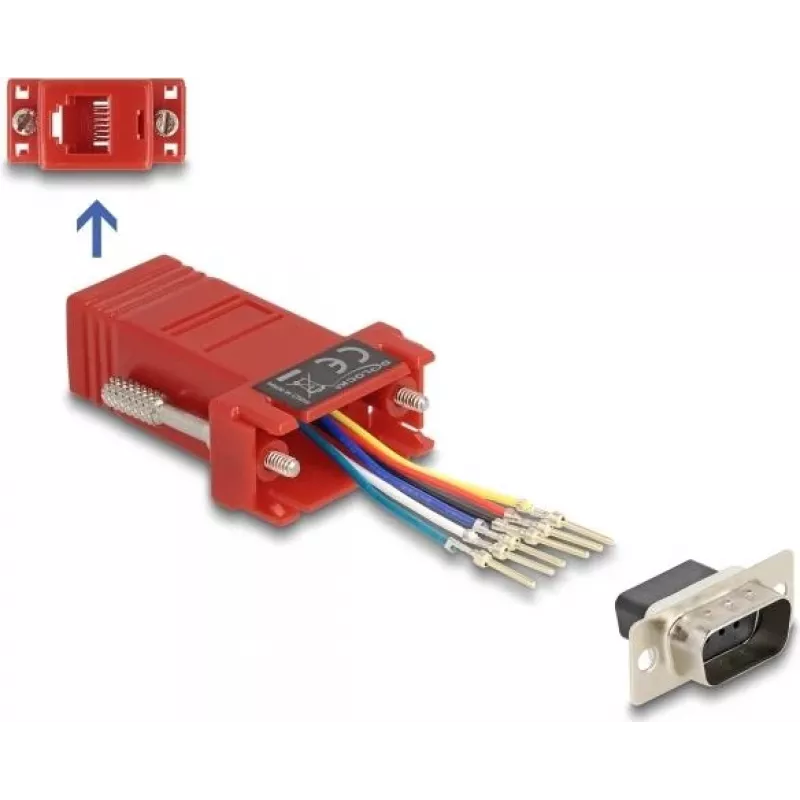

This DeLOCK assembly kit provides a D-Sub 9 pin male connector that can be wired to an RJ12 female socket using an ISDN, telephone or RJ12 cable. The kit allows flexible assignment of the D-Sub 9 contacts so you can configure the pinout to your requirements. The red housing is durable and designed for reliable electrical contact when assembled.

Advantages

The kit enables individual and flexible assignment of each D-Sub 9 contact, and the RJ12 socket snaps into the D-Sub housing with a slight click to ensure a secure connection. Its simple assembly supports field wiring and custom pinouts without needing pre-made cables.

Suitable for

• Connecting serial D-Sub 9 equipment via ISDN or telephone wiring
• Creating custom pinouts for modem, router or serial communication setups
• Field wiring and repairs where an RJ12 interface is required

Key specifications

• Connector 1: D-Sub 9 (male)
• Connector 2: RJ12 (female)
• Product colour: Red
• Brand: DELOCK, MPN: 67074, EAN: 4043619670741

How to use

Insert and route the individual wires into the D-Sub 9 housing according to the desired pin assignment, then press the RJ12 socket into place until it clicks to secure the contacts. Verify continuity and correct wiring with a multimeter before final installation. Follow any applicable safety procedures for working with communication cabling.

Recommendations

Use appropriate cable types (ISDN, telephone or RJ12) and check the pinout requirements of connected devices. Do not expose the assembled connector to moisture or mechanical stress; test connections after assembly to ensure reliable serial communication.
