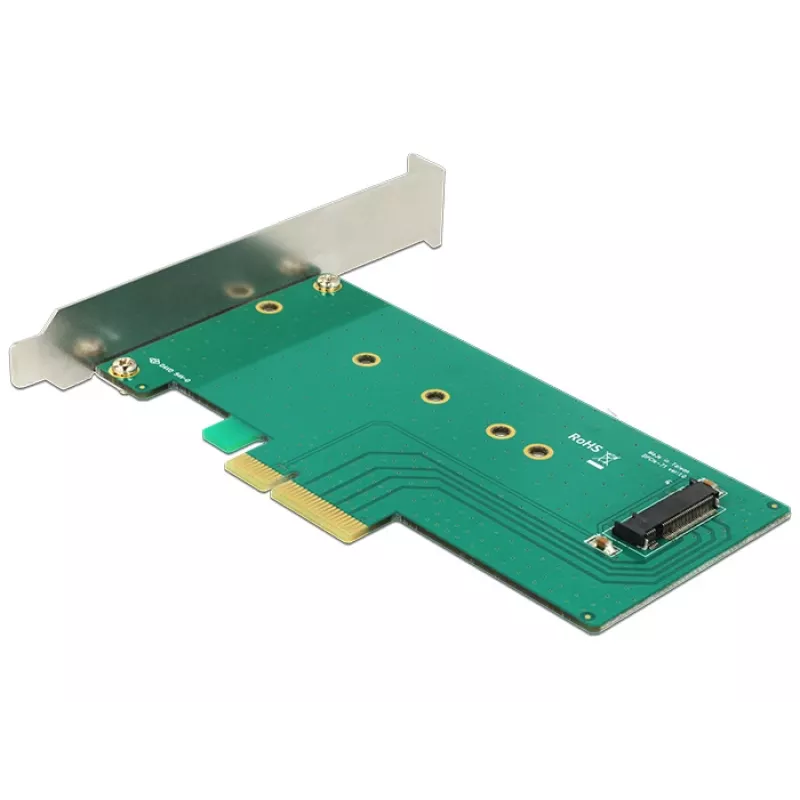

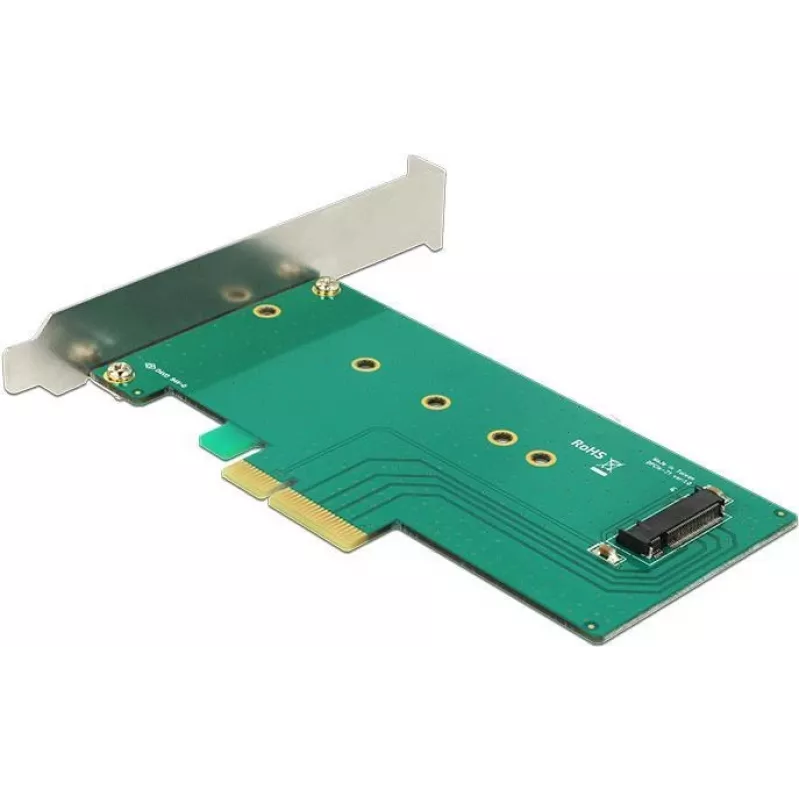

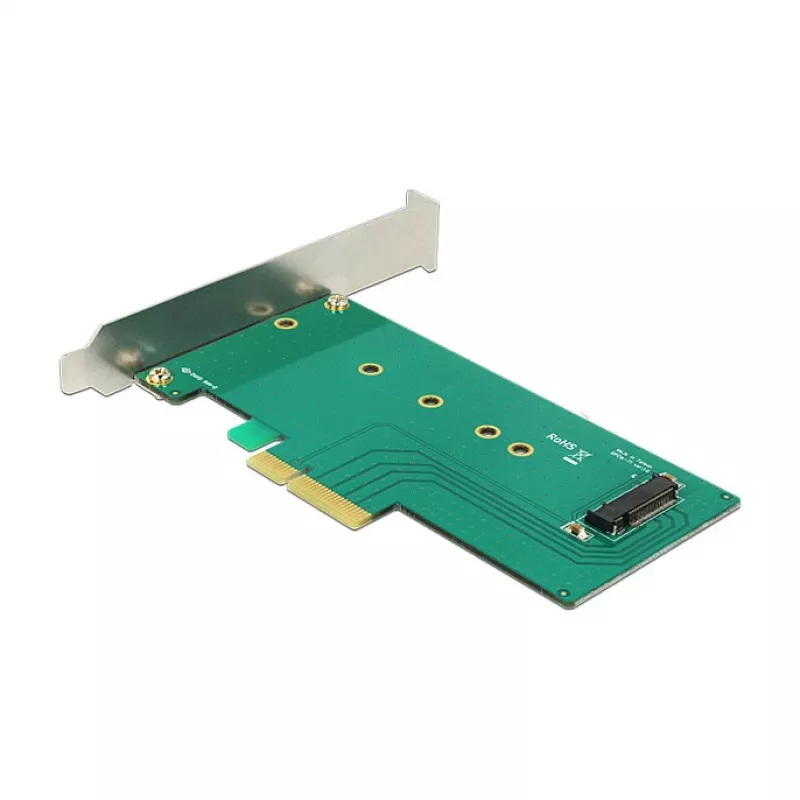

Delock Placa PCI Express x4 para 1 x NVMe M.2 Key M interno 110 mm - Fator de forma Low Profile

PCIe expansion card that adds one internal M.2 Key M slot for NVMe SSDs, supporting module lengths up to 110 mm in a low profile form factor. This card enables high-speed storage expansion via a PCI Express x4 slot, delivering data transfer rates up to 32 Gbps.

Advantages

Bootable NVMe support allows the connected SSD to be used as a system drive. The low profile bracket fits slim desktop and server chassis. An activity LED provides visual indication of drive access.

Suitable for

• Adding NVMe storage to systems with a free PCIe x4 or larger slot
• Low profile desktop and rackmount server builds
• Bootable high-performance storage configurations

Key specifications

• Host interface: PCI Express 3.0 x4
• Internal interface: 1 x M.2 Key M (NVMe)
• Supported M.2 form factors: 2230, 2242, 2260, 2280, 22110
• Maximum data transfer rate: 32 Gbps

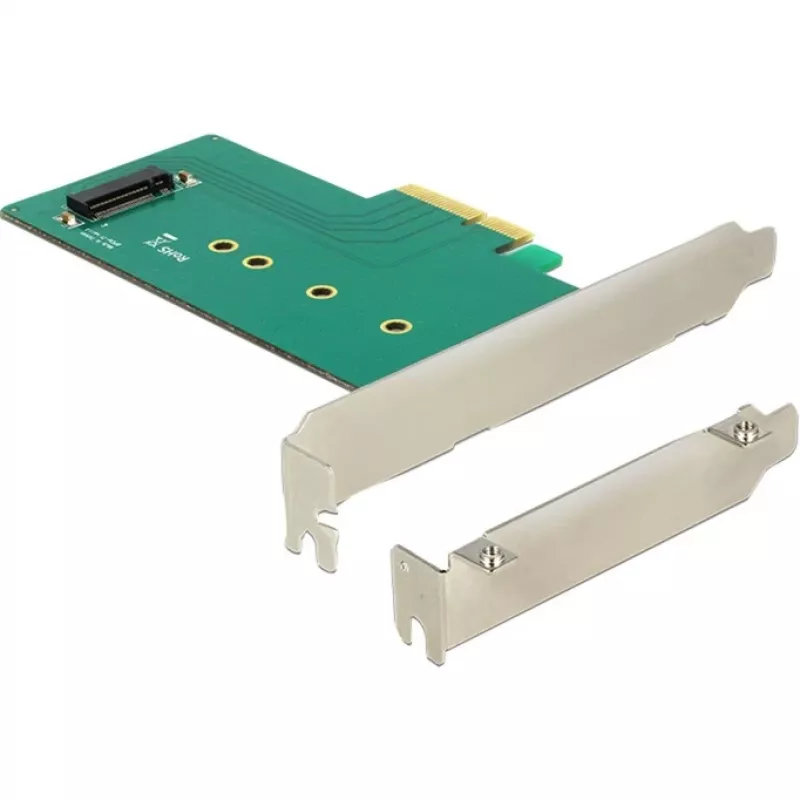

• Low profile bracket included
• LED indicator: activity
• Compatible operating systems: Windows 7/8.1/10, Linux Kernel 4.3+

Recommendations

Verify that your motherboard BIOS supports NVMe boot if you plan to use the connected SSD as a boot device. Ensure adequate airflow for the M.2 SSD, especially for double-sided modules.
