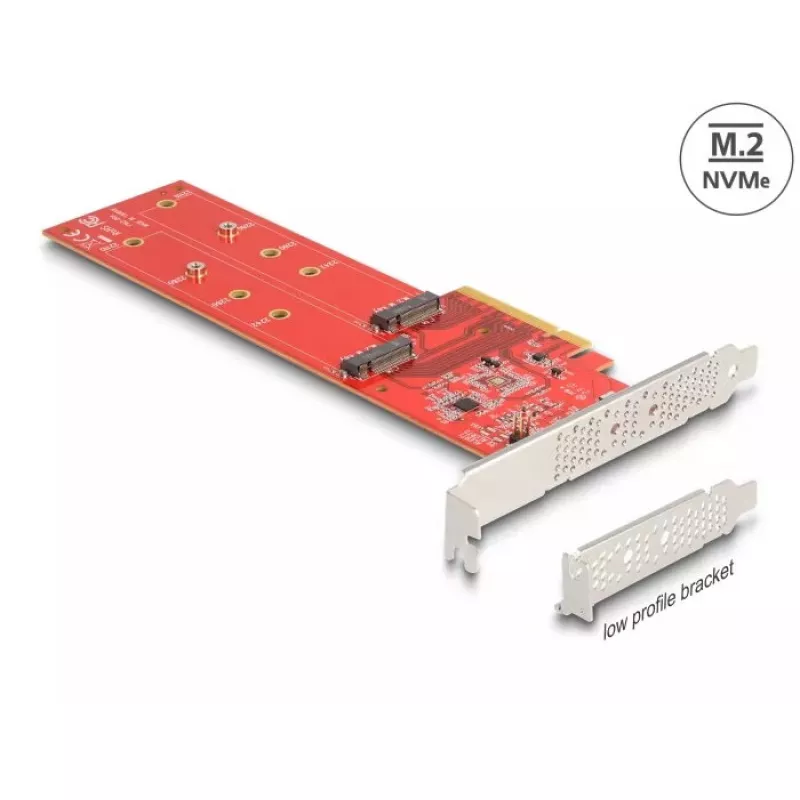

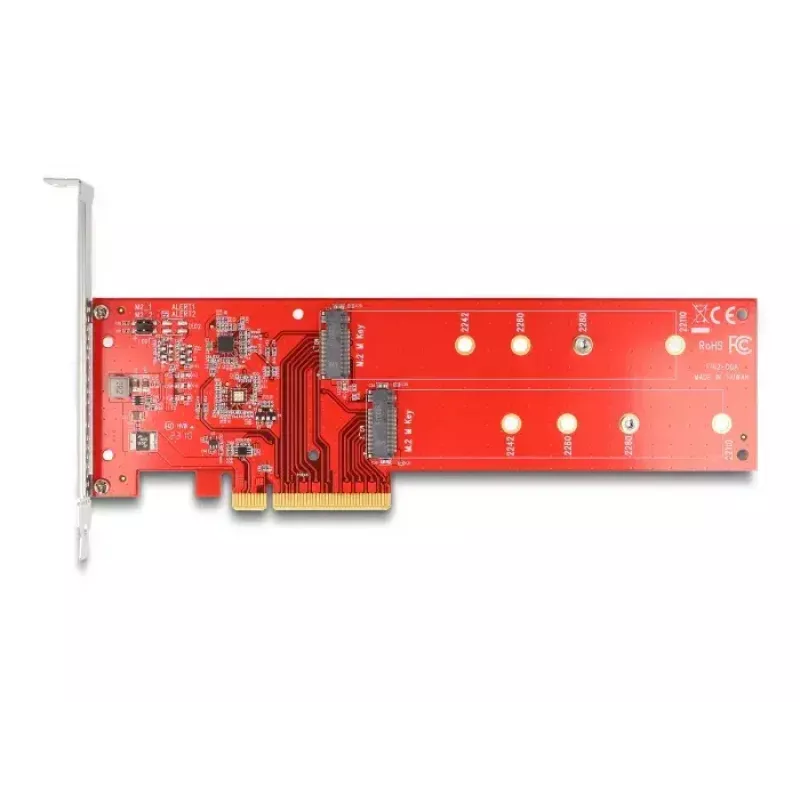

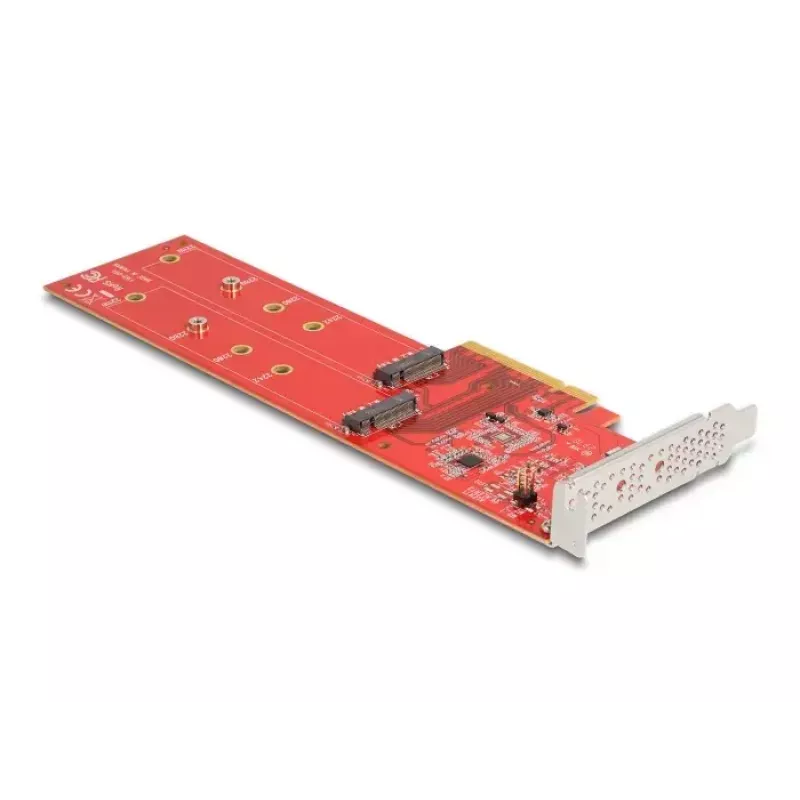

DeLOCK placa PCI Express x8 para 2 x NVMe M.2 Key M 110 mm internos Bifurcation Low Profile

This PCI Express card by DeLOCK expands a PC with two internal NVMe M.2 slots. It accepts M.2 Key M SSDs in lengths 110 mm (22110), 80 mm (2280), 60 mm (2260) and 42 mm (2242) and fits low-profile systems. The card requires motherboard PCIe bifurcation to split the PCIe lanes so both M.2 slots can operate simultaneously; without bifurcation only the first slot is available.

Advantages

The DeLOCK PCIe x8 card provides a compact, low-profile solution to add two high-speed NVMe M.2 drives using a PCIe x8 slot. It supports multiple common M.2 form factors and enables high data throughput when the host board supports PCIe bifurcation. The red-coloured bracket and PCB offer a clear visual identification in system builds.

Suitable for

Key specifications

How to use

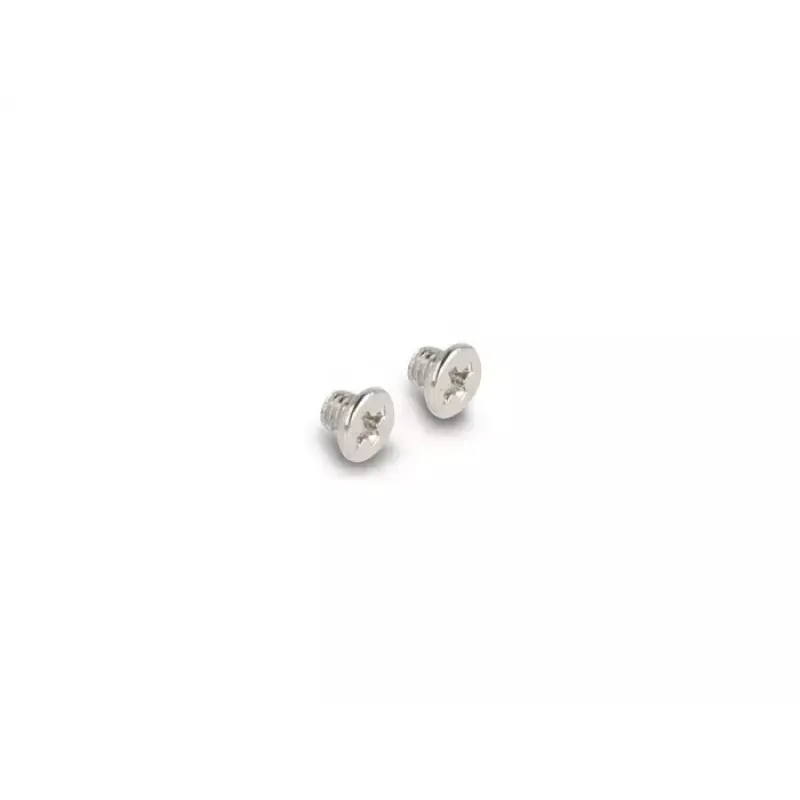

Install the card into a PCIe x8 (or larger) slot on a motherboard that supports PCIe bifurcation. Mount compatible M.2 Key M SSDs of the supported lengths into the two M.2 slots and secure them with the supplied or appropriate screws. Configure the motherboard BIOS/UEFI to enable PCIe bifurcation so both M.2 devices are exposed to the system. If bifurcation is not enabled or not supported, only the first M.2 slot will be usable.

Recommendations

Ensure your motherboard supports PCIe bifurcation and check BIOS/UEFI options or vendor documentation before installation. Use appropriate cooling and verify physical clearance in small-form-factor cases when adding two M.2 drives.
