DeLOCK placas/adaptadores de interface 61065 interno USB 3.2 Gen 1 M.2 macho

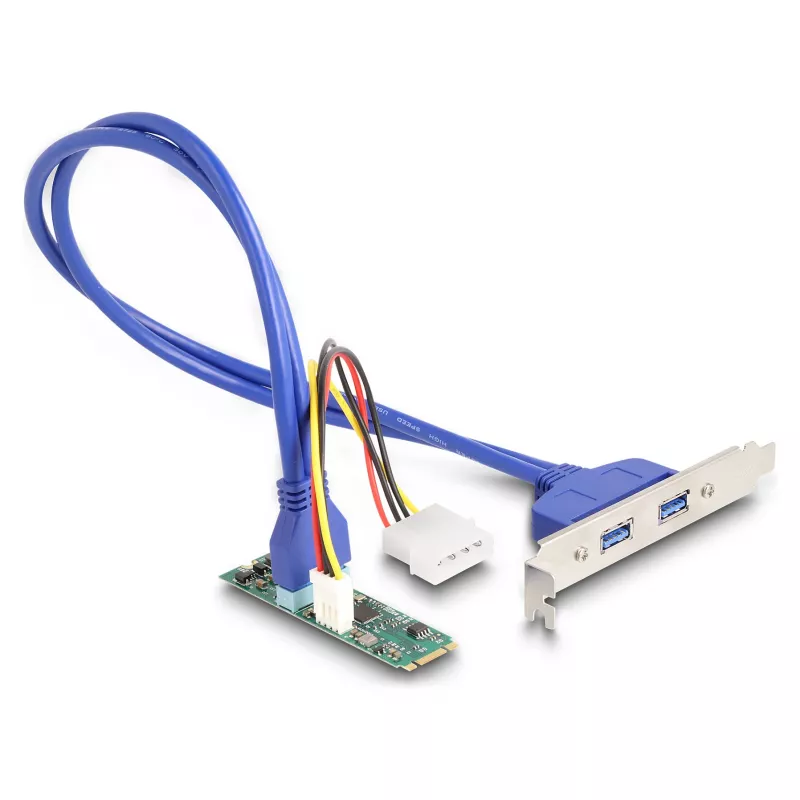

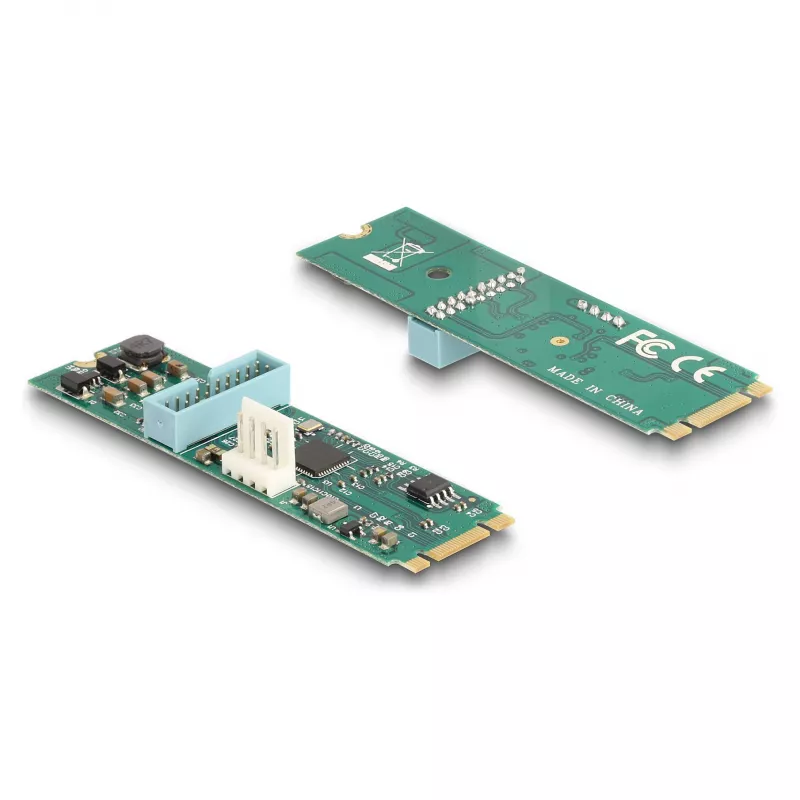

The DeLOCK 61065 is an internal USB 3.2 Gen 1 adapter with an M.2 male connector that expands a system by two USB 5 Gbps Type-A female ports. The compact adapter measures 22 mm in width, 80 mm in depth and 17 mm in height, and is intended for installation inside a compatible host system. The device uses a Renesas uPD720202 or Asmedia ASM1806 controller and supports Windows 10, Windows 11 and Linux Kernel 6.2.

Advantages

The adapter provides two internal USB 3.2 Gen 1 ports offering up to 5 Gbps transfer speed, fits into an M.2 slot via its male connector and preserves a small footprint for installation in constrained internal spaces. It is compatible with common desktop operating systems and uses proven controllers for reliable data transfer. Available in multiple colours of the PCB and connector components.

Suitable for

• Adding two internal USB 3.2 Gen 1 Type-A ports to a desktop or workstation

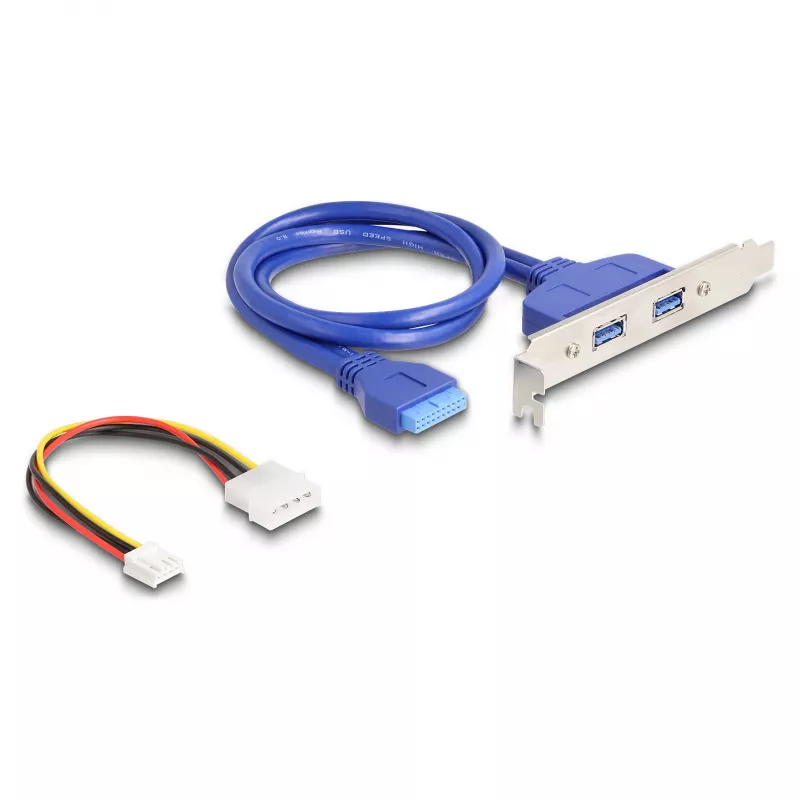

• Expanding USB connectivity for internal devices or front-panel brackets
• Systems running Windows 10, Windows 11 or Linux Kernel 6.2

Key specifications

• Interface: M.2 male (internal)
• Ports: 2 × USB Type-A female, USB 3.2 Gen 1 (5 Gbps)
• Controller: Renesas uPD720202 / Asmedia ASM1806
• Dimensions: 22 mm × 80 mm × 17 mm (W × D × H)
• Compatibility: Windows 10, Windows 11, Linux Kernel 6.2
• Brand: DELOCK, MPN: 61065, EAN: 4043619610655
• Product colour: Green, Grey, Blue, Black

How to use

Install the M.2 male connector into a compatible M.2 slot on the motherboard or expansion area following the host system's installation guidelines. Route the Type-A female ports to the desired internal bracket or mounting location and secure any slot bracket if necessary. After physical installation, boot the system and verify that the operating system recognises the new USB ports; install drivers if required by the OS.

Recommendations

Ensure the host system supports M.2 devices of the required keying and that the chosen slot provides the necessary internal routing. Avoid forcing the connector during installation and confirm driver compatibility on your operating system version before deployment.
