DeLOCK RJ50 2 x conector fêmea para 2 x bloco de terminais com botão de pressão para calha DIN angular

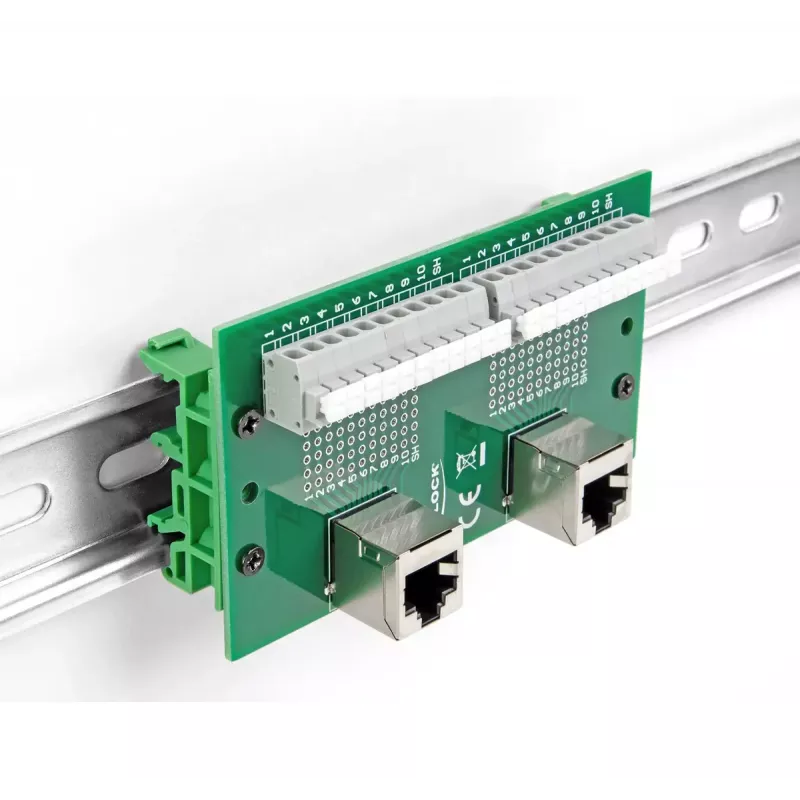

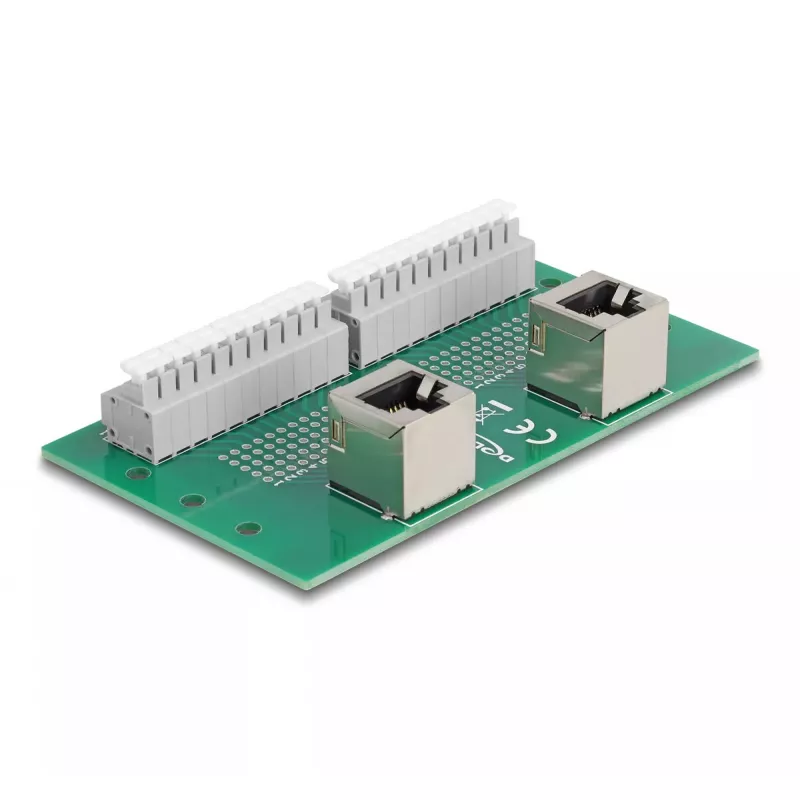

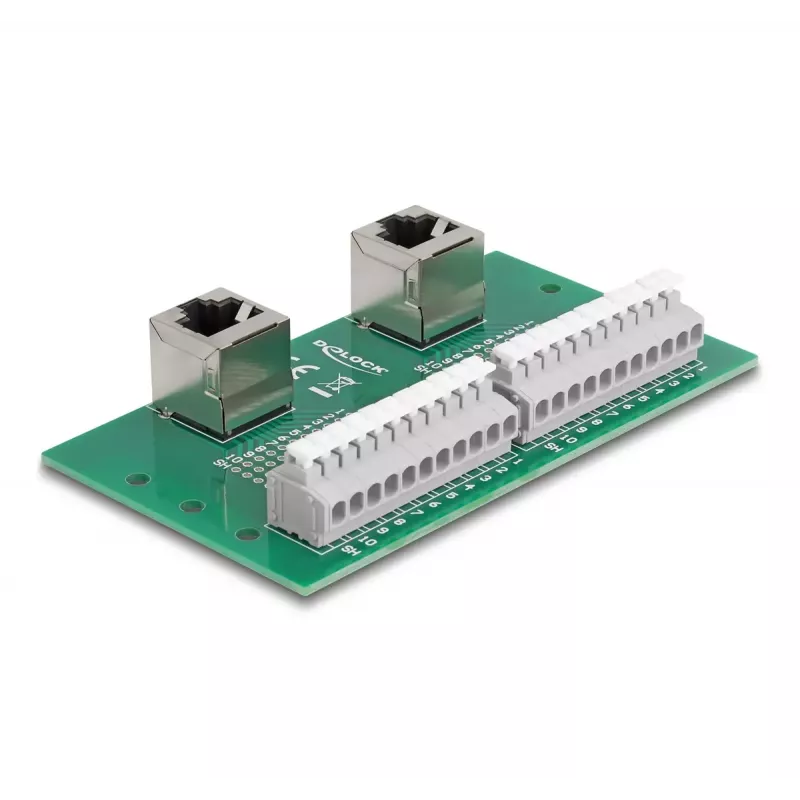

The DeLOCK RJ50 adapter provides a compact solution for connecting control and measuring devices to a DIN rail system. It includes two female RJ50 connectors and two terminal blocks with tool-free push-button connection for wires with stripped ends. The enclosure is designed for attachment to standard 15 mm or 35 mm DIN rails using the supplied mounting clips and measures approximately 60 mm (W) × 91 mm (D) × 18 mm (H).

Advantages

The adapter supports easy and reliable connections via push-button terminal blocks, eliminating the need for additional tools when attaching stranded conductors with stripped ends. Two female RJ50 ports allow simple integration of RJ50-equipped devices, while the DIN rail mounting clips provide secure installation in control cabinets or distribution enclosures. Its compact dimensions save space on the rail.

Suitable for (tasks / use cases)

• Connecting control and measurement devices with RJ50 interfaces
• Temporary or permanent wiring of stripped-end stranded conductors
• Installation on 15 mm or 35 mm DIN rails in control cabinets
• Field devices and network accessory integration in automation systems

Key specifications

• Brand: DELOCK
• Model / MPN: 67015
• EAN: 4043619670154
• Connectors: 2 × female RJ50, 2 × terminal block with push-button

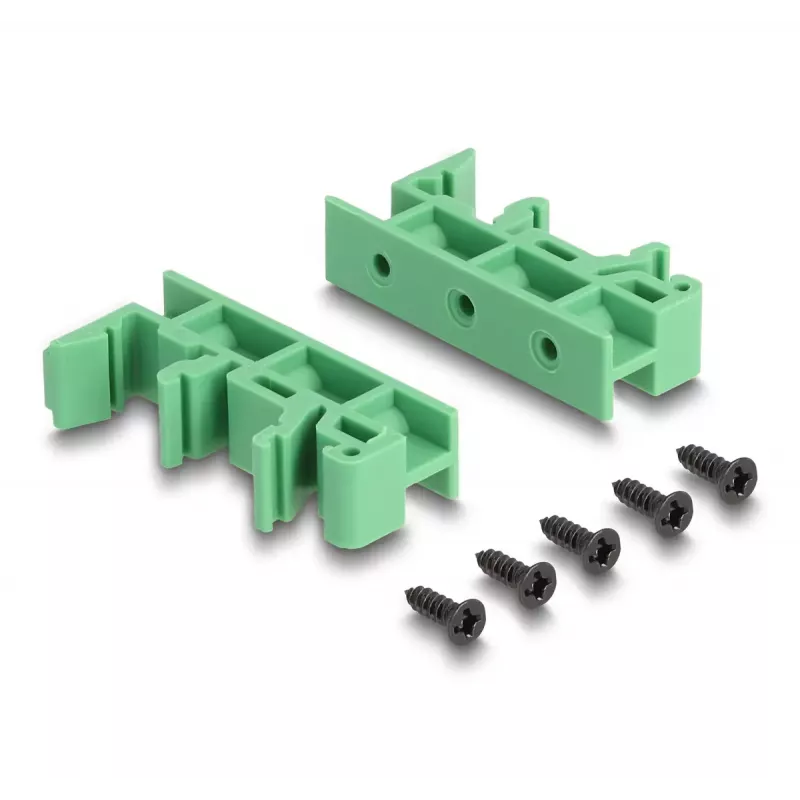

• Mounting: DIN rail (15 mm or 35 mm) with supplied clips
• Dimensions: approx. 60 mm (W) × 91 mm (D) × 18 mm (H)

How to use

Mount the adapter on a compatible 15 mm or 35 mm DIN rail by snapping the supplied clips into place. Insert RJ50 plugs into the two female RJ50 sockets for device connections. For wiring to the terminal blocks, press the push-button to open the clamp, insert the stripped end of the stranded conductor and release the button to secure the conductor. Verify each connection is firm before powering the system.

Recommendations

Use conductors with appropriately stripped lengths and correct cross-section for the terminal block to ensure reliable contact. Do not exceed the electrical ratings of connected devices and follow local installation standards when mounting in control cabinets.
