DELTA Caixa de ligação PK-24 IP67 cinzento

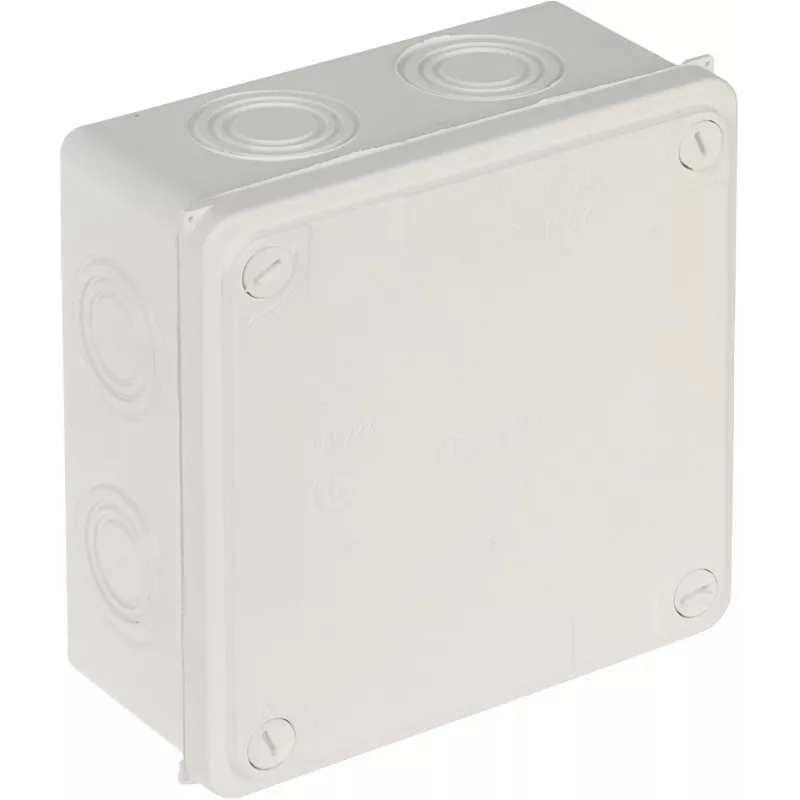

The DELTA PK-24 junction box is a robust and reliable solution for electrical installations requiring high ingress protection. Designed for both indoor and outdoor use, this IP67-rated enclosure ensures complete protection against dust and temporary immersion in water. Manufactured from durable polypropylene (PP) with a TPE gasket, it offers excellent resistance to UV radiation and impact (IK07). The box features 8 flexible membrane cable entries, allowing for easy and secure cable routing without the need for additional glands. The lid is fastened with 4 plastic screws, providing a secure seal. With a usable internal depth of approximately 45 mm, it offers ample space for wiring and connections. The PK-24 is halogen-free and complies with CE and RoHS standards, making it a safe choice for various applications.

Advantages

High ingress protection (IP67) ensures reliable performance in harsh environments. Impact resistance (IK07) protects against mechanical shocks. UV-resistant material allows for outdoor installation. Halogen-free construction enhances safety. Flexible membrane entries simplify cable installation and accommodate different cable diameters.

Suitable for

• Electrical junction boxes for outdoor lighting and power distribution
• Industrial control and automation enclosures
• Telecommunications and network infrastructure
• Solar panel and renewable energy connections
• Marine and agricultural applications

Key specifications

• Brand: DELTA
• Model: PK-24
• MPN: PK-24
• EAN: 5907570041219
• Ingress Protection: IP67
• Impact Protection: IK07
• Material: Polypropylene (PP)
• Gasket Material: Thermoplastic Elastomer (TPE)
• Colour: Grey (RAL 7035)
• Number of Cable Entries: 8
• Cable Entry Type: Flexible Membrane Glands

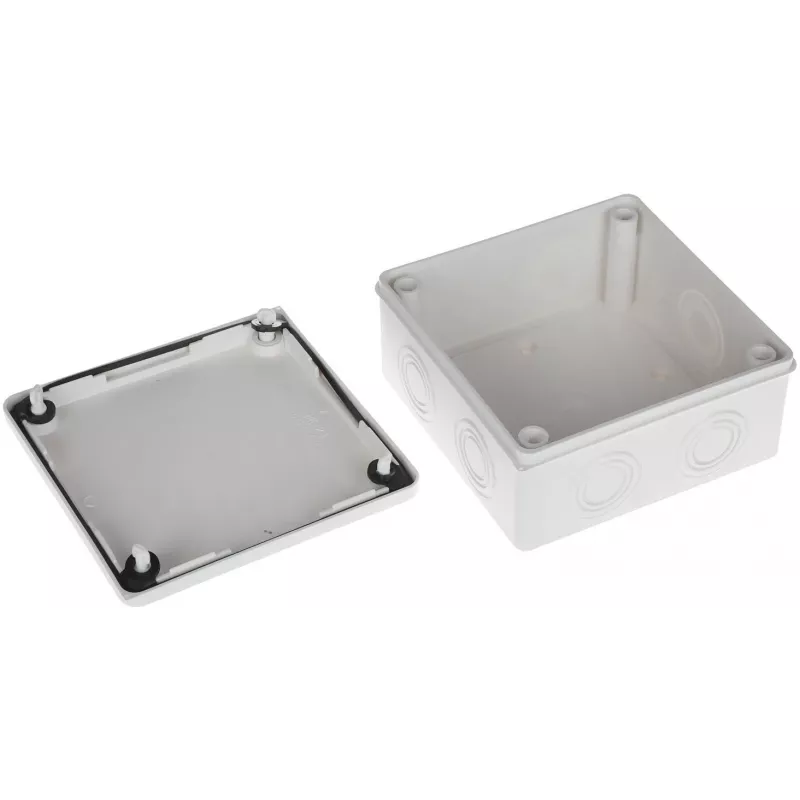

• Lid Fastening: 4x Plastic Screws
• Operating Temperature: -25°C to +60°C
• Glow Wire Test: 650°C
• Rated Insulation Voltage: 400V AC
• Halogen-Free: Yes
• UV Resistance: Yes
• Mounting Type: Surface Mount
• Internal Depth: ~45 mm
• Standards: CE, RoHS

Recommendations

For optimal performance, ensure that the cable entries are properly sealed after installation. Use appropriate cable glands for cables outside the recommended diameter range. The enclosure is suitable for both indoor and outdoor use, but avoid prolonged exposure to extreme temperatures beyond the specified range.
