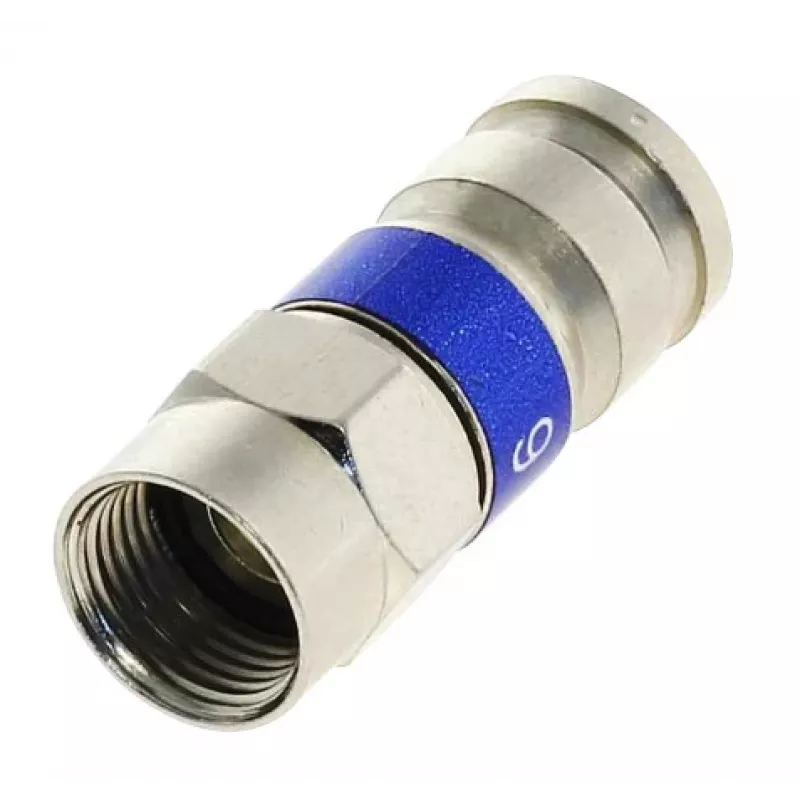

DELTA Ficha de compressão tipo F para cabo coaxial RG-6, latão niquelado, 75 Ohm, resistente às intempéries

F-type compression connector engineered for RG-6 coaxial cable, delivering a secure, weatherproof connection with minimal signal loss. Its nickel-plated brass body and PTFE dielectric ensure corrosion resistance and stable 75-ohm impedance across satellite, cable TV, and terrestrial antenna installations.

Advantages

Compression design provides a permanent, gas-tight seal that outperforms crimp or twist-on connectors, maintaining shielding effectiveness above 100 dB. The waterproof construction withstands outdoor exposure, while the solid brass core supports both solid and stranded center conductors for versatile field use.

Suitable for

• Satellite TV systems (DVB-S/S2) requiring low insertion loss and high return loss
• Cable TV (CATV) and broadband networks operating up to 3 GHz
• Terrestrial antenna installations exposed to weather and temperature extremes
• Professional installers seeking reliable, reusable connectors with standard compression tools

Key specifications

• Connector type: F-type male compression
• Cable compatibility: RG-6 coaxial (solid or stranded center conductor)
• Impedance: 75 Ohm
• Frequency range: 0–3 GHz
• Material: Nickel-plated brass body, PTFE dielectric
• Insertion loss: <0.1 dB @ 1 GHz
• Return loss: >25 dB @ 1 GHz
• Shielding effectiveness: >100 dB
• Operating temperature: -40°C to +60°C
• Weather resistance: Waterproof / weatherproof

Recommendations

For optimal performance, use a calibrated compression tool and strip the cable to the manufacturer's specified dimensions. Verify the connector is fully seated before compression to ensure a reliable, long-lasting connection.
