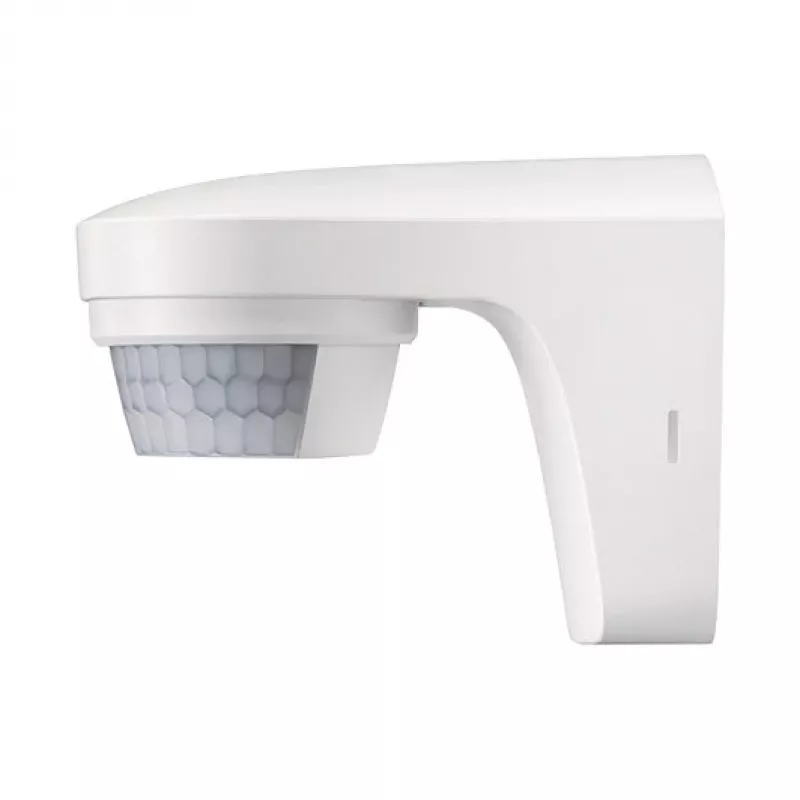

Detetor de movimento de parede THEBEN THE theLuxa S180 WH, 180°, máx. 12 m, branco

Unlike basic PIR switches that only cover a narrow corridor, the THEBEN theLuxa S180 WH combines a wide 180° detection angle with a 12-metre range, making it ideal for entrances, corridors, and outdoor areas. Its wall-mounted design ensures straightforward installation, while the IP55 rating guarantees reliable operation even in dusty or wet conditions.

Highlights

• PIR motion detection with 180° angle and 12 m range
• Wall mounting design for simple installation
• IP55 protection against dust and water jets
• Switching capacity up to 2300 W resistive load and 600 W LED
• Adjustable light sensor (5–1000 lx) and time delay (10 s – 20 min)
• Stand-by power consumption of only ~0.5 W
• Housing in UV-stabilised polycarbonate

In daily use

The detector automatically switches connected lights on when movement is detected and off after an adjustable delay. A manual override via an external push button enables 6-hour continuous lighting when needed. The integrated test function simplifies commissioning.

Full specifications

• Product type: Motion Detector
• Mounting: Wall mounting
• Detection angle: 180°
• Detection range: 12 m
• Operating voltage: 230 V AC, 50–60 Hz
• Switching capacity: 2300 W (10 A) resistive, 600 W LED (>2W per LED)
• Protection type: IP55
• Protection class: II
• Ambient temperature: -25 °C to +50 °C
• Light sensor range: 5–1000 lx
• Time delay setting: 10 s – 20 min
• Optimal mounting height: 2.5 m
• Stand-by power: ~0.5 W
• Housing material: UV-stabilised polycarbonate
• Output: 1 NO contact (light)
• Manual override: Yes (via external push button for 6h)
• Test function: Yes

Final note

Reliable, energy-efficient presence detection for demanding environments.
