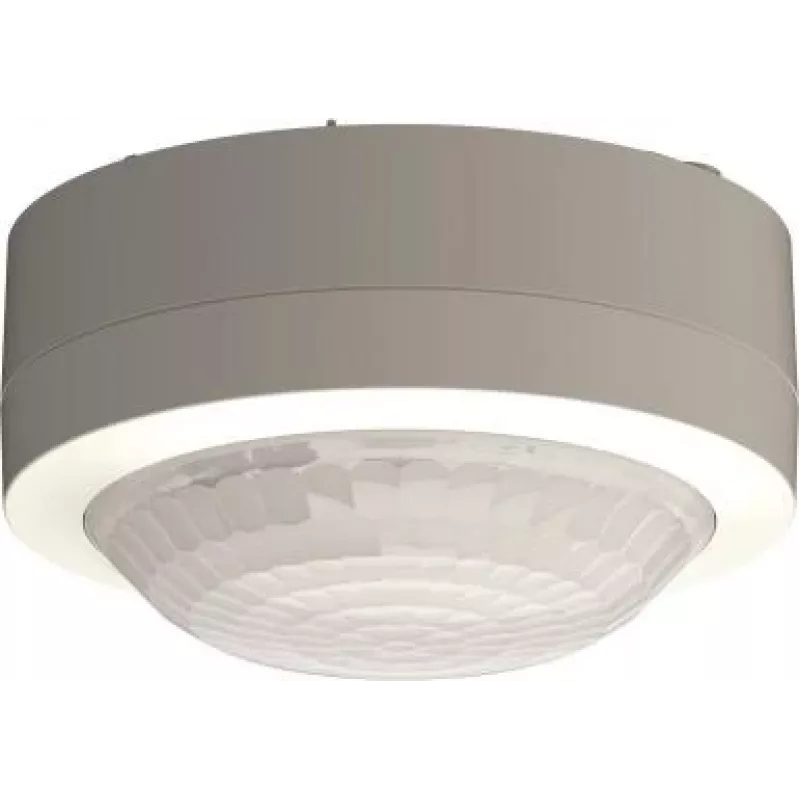

Theben PIRA T8 AP Detetor de movimento de teto por infravermelhos passivos 360°, montagem à superfície, alcance de 8 m, IP54, Branco 1030203

With a 360° detection angle and an 8-metre diameter coverage at 2.5 m mounting height, the Theben PIRA T8 AP delivers reliable, energy-efficient presence detection for indoor and protected outdoor applications. This surface-mounted ceiling sensor uses passive infrared technology to switch lighting loads up to 2300 W incandescent or 1150 VA LED/fluorescent, with adjustable time and brightness settings for tailored automation.

Overview

The PIRA T8 AP is a compact, round motion detector designed for surface mounting on ceilings. It operates on 230 V AC and features a relay output (normally open) for controlling a single lighting channel. The sensor is housed in UV-stabilised polycarbonate in white (RAL 9010), ensuring durability and a clean appearance. Its IP54 rating protects against dust and splashing water, making it suitable for use in bathrooms, corridors, stairwells, and covered outdoor areas.

What stands out

• Full 360° detection coverage with an 8 m diameter range at optimal mounting height
• Wide adjustable settings: time delay from 10 seconds to 30 minutes, brightness threshold from 5 to 2000 lux
• High switching capacity: 2300 W for incandescent/halogen, 1150 VA for LED and fluorescent loads
• Robust IP54-rated housing with UV-stabilised polycarbonate for long-term reliability
• Low standby power consumption of less than 0.5 W

Technical details

• Detection technology: Passive Infrared (PIR)
• Mounting type: Surface-mounted ceiling
• Detection angle: 360°
• Detection range: 8 m diameter at 2.5 m mounting height
• Recommended mounting height: 2.0 – 4.0 m (optimal 2.5 m)
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity incandescent/halogen: 2300 W
• Switching capacity fluorescent/LED: 1150 VA (cos φ = 0.5)
• Time setting range: 10 s – 30 min
• Brightness setting range: 5 – 2000 lux
• IP rating: IP54
• Operating temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Housing material: UV-stabilised polycarbonate
• Number of channels: 1 (light switching)
• Standby power consumption: < 0.5 W
• Switching output: Relay, normally open (NO)
• Installation type: Indoor and protected outdoor areas

Our verdict

The Theben PIRA T8 AP combines broad coverage, flexible settings, and robust construction in a discreet ceiling-mounted design. It is an excellent choice for automating lighting in both residential and commercial spaces where reliability and energy savings are key.
