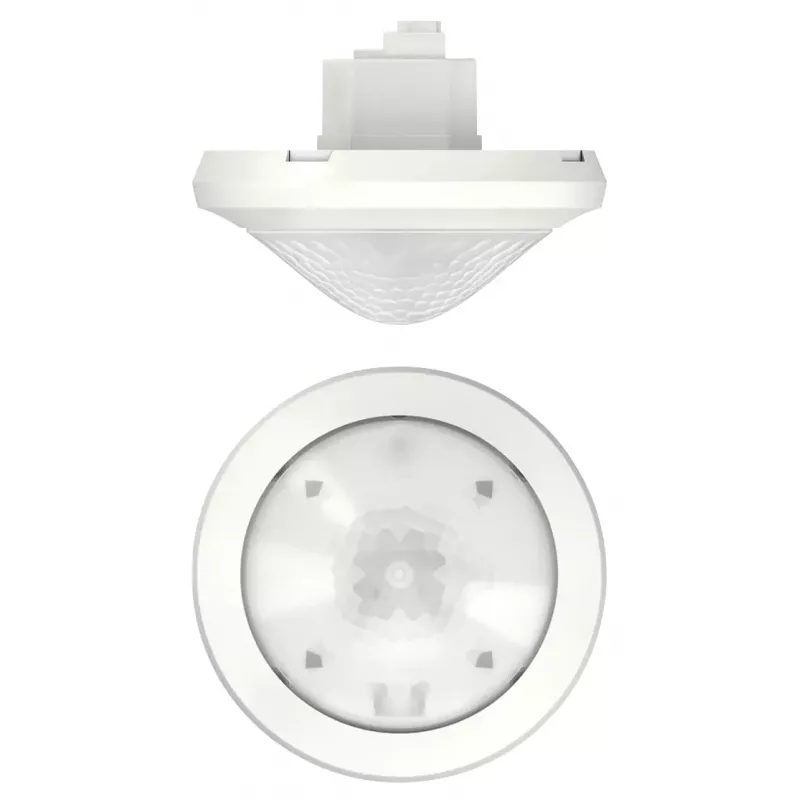

Detetor de presença THEBEN theRonda P360 KNX UP WH, encastrado no teto, 2 canais de iluminação e 2 canais HVAC, branco

The theRonda P360 KNX UP WH stands apart from conventional presence detectors by combining a discreet flush-mount profile with dual light and HVAC control in a single KNX node. Its 360° detection field and integrated brightness and temperature sensors allow fully automated room management without additional gateways or modules.

Highlights

• 360° passive infrared detection with a range of up to 8 m diameter at 3 m mounting height
• Two independent lighting channels and two HVAC channels for flexible zone control
• Integrated brightness measurement (10–2000 lux) and temperature sensing for demand-driven automation
• Flush ceiling installation with UV-stabilised polycarbonate housing, IP20 rated
• Powered directly from the KNX bus (21–30 V DC), no separate power supply needed

In daily use

Once configured via ETS, the detector constantly monitors presence, ambient light, and room temperature. It switches or dims lighting groups according to occupancy and daylight contribution, while the HVAC channels adjust heating or cooling setpoints for occupied and unoccupied periods. The result is a comfortable indoor climate and measurable energy savings in offices, meeting rooms, classrooms, and corridors.

Full specifications

• Product type: KNX presence detector
• Mounting: ceiling flush-mount
• Detection technology: passive infrared (PIR)
• Detection angle: 360°
• Detection range: approx. 8 m diameter at 3 m height
• Recommended installation height: 2–3.5 m
• Number of light channels: 2
• Number of HVAC channels: 2
• Brightness measurement range: 10–2000 lux
• Integrated sensors: presence, brightness, temperature
• Bus system: KNX (TP)
• Operating voltage: 21–30 V DC via KNX bus
• Power consumption: < 0.5 W
• Protection class: IP20
• Operating temperature: -15 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Colour: white
• Configuration: ETS software

Final note

For KNX projects that demand precise presence detection and multi-channel control without visible sensor bulk, the theRonda P360 KNX UP WH delivers a clean ceiling integration and robust automation logic in one compact device.
