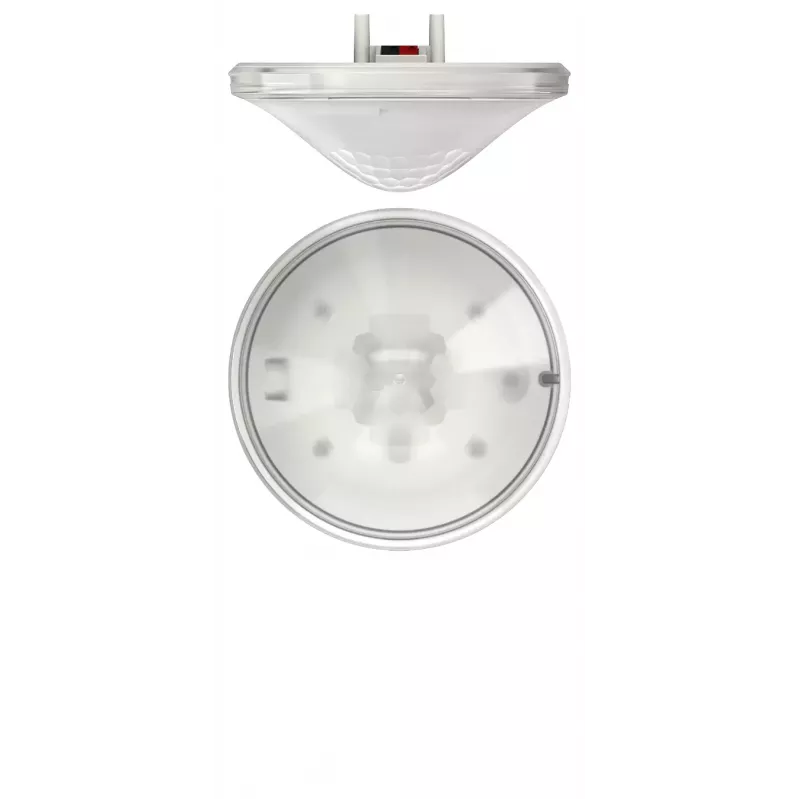

Detetor de presença de teto THEBEN thePrema P360 KNX UP WH para embutir

For KNX installations demanding precise presence detection with a discreet ceiling profile, the thePrema P360 KNX UP WH stands apart through its triple-sensor 360° coverage and three independent channels for lighting, presence, and HVAC control. Its flush-mount design integrates cleanly into ceilings, while mixed-light measurement ensures reliable switching with LED, fluorescent, halogen, and incandescent loads.

Highlights

• 360° detection angle with three PIR sensors for comprehensive coverage
• Three independent KNX channels: lighting, presence, and HVAC
• Mixed-light measurement compatible with LED, fluorescent, halogen, and incandescent lamps
• Flush ceiling mounting for a discreet architectural appearance
• Constant light control and scene integration for energy-efficient automation

In daily use

Installed at a height of 2 to 4 metres, the detector monitors a presence area up to 9 metres in diameter and a motion area up to 28 metres in diameter. It responds to occupancy by switching lights, adjusting HVAC, or triggering scenes, all through KNX telegrams. The white housing blends with standard ceiling finishes, and the 60 mm installation opening keeps the visible profile minimal.

Full specifications

• Brand: THEBEN
• Model: thePrema P360 KNX UP WH
• MPN: 2079000
• EAN: 7612748004450
• Sensor type: Passive Infrared (PIR)
• Number of PIR sensors: 3
• Detection angle: 360°
• Presence detection range: up to 9 m diameter at 3 m mounting height
• Motion detection range: up to 28 m diameter at 3 m mounting height
• Mounting type: Ceiling flush-mounted
• Bus system: KNX
• Channels: 3 (light, presence, HVAC)
• Light measurement: Mixed light (LED, fluorescent, halogen, incandescent)
• Product colour: White
• International Protection (IP) code: IP20
• Operating voltage: 21-32 V DC (KNX bus)
• Recommended installation height: 2-4 m (optimal 3 m)
• Operating temperature: -15 °C to +50 °C
• Installation opening diameter: 60 mm
• Installation depth: 60 mm
• Key functions: Constant light control, presence detection, HVAC control, scene control

Final note

With its multi-channel KNX integration and robust detection performance, the thePrema P360 KNX UP WH is a dependable choice for offices, meeting rooms, and public spaces where both comfort and energy efficiency are priorities.
