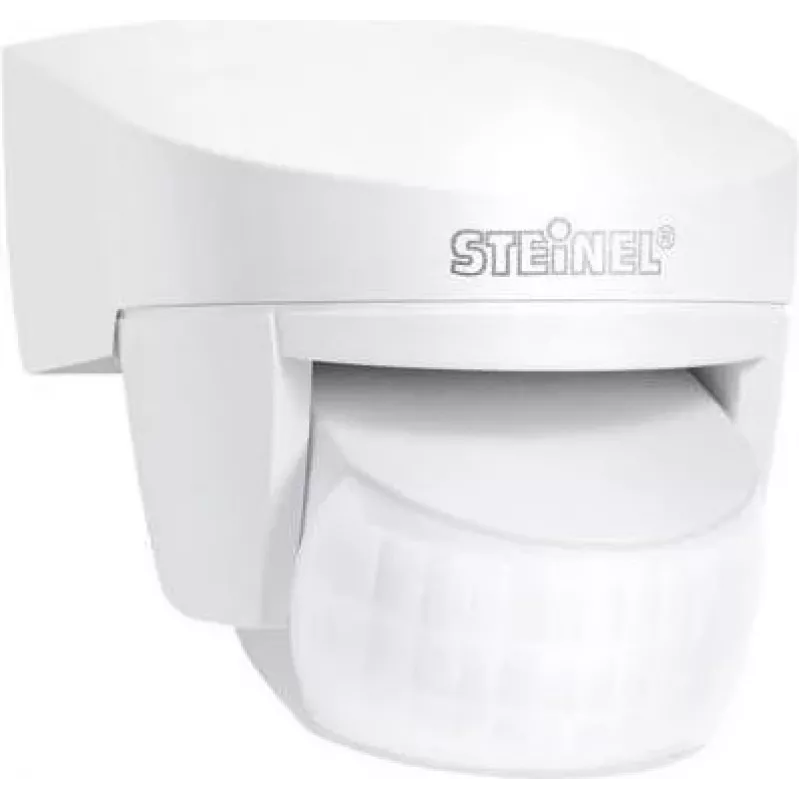

Detetor de movimento STEINEL ST 608810 sensor de infravermelhos com fio montagem na parede branco

The STEINEL ST 608810 wired infrared motion detector provides automatic light control by switching lights on and off in response to movement and ambient light. Designed for wall mounting with a white finish and IP54 protection, the unit offers a 140° detection angle and a reach of up to 14 m, making it suitable for monitoring entrances, walkways and building perimeters. The detector includes an adjustable optical system with spherical Fresnel lenses for consistent detection performance, and a clearly arranged terminal compartment for straightforward wiring and installation.

Advantages

The IS 140-2 optical system swivels 90° and tilts 180° for precise alignment of the detection zone, and comes with shrouds to further customise coverage. The detector allows easy adjustment of time and twilight threshold via a control dial beneath the sensor lens. With a generous terminal compartment and options for concealed or surface-mounted supply leads, the device simplifies installation. IP54 protection and a robust housing provide reliable operation in a variety of environments.

Suitable for

• Outdoor entrances and porches
• Walkways and paths alongside buildings
• Garage and driveway areas
• Perimeter zones requiring automatic lighting control

Key specifications

• Model: Motion Detector STEINEL ST 608810 (IS 140-2)
• Detection angle: 140°
• Detection range: up to 14 m
• Supply voltage: 230–240 V, 50 Hz
• Protection rating: IP54
• Dimensions (W×D×H): 86 × 95 × 70 mm
• Finish: white

How to use

Mount the detector on a wall or in a corner using appropriate fixings; corner wall mounts are available as accessories. Adjust the optical system by swivelling (up to 90°) and tilting (up to 180°) to set the desired detection zone, and use the supplied shrouds to limit coverage if needed. Connect the supply lead in the terminal compartment, making the connection either concealed or surface-mounted. Set the time delay and twilight threshold using the control dial located beneath the sensor lens.

Recommendations

Install the sensor at a height and angle that minimise false triggers from nearby trees or traffic and test the detection zone after installation. For optimal performance outdoors, ensure the sensor is positioned to avoid direct exposure to heavy rain or spray despite its IP54 rating.
