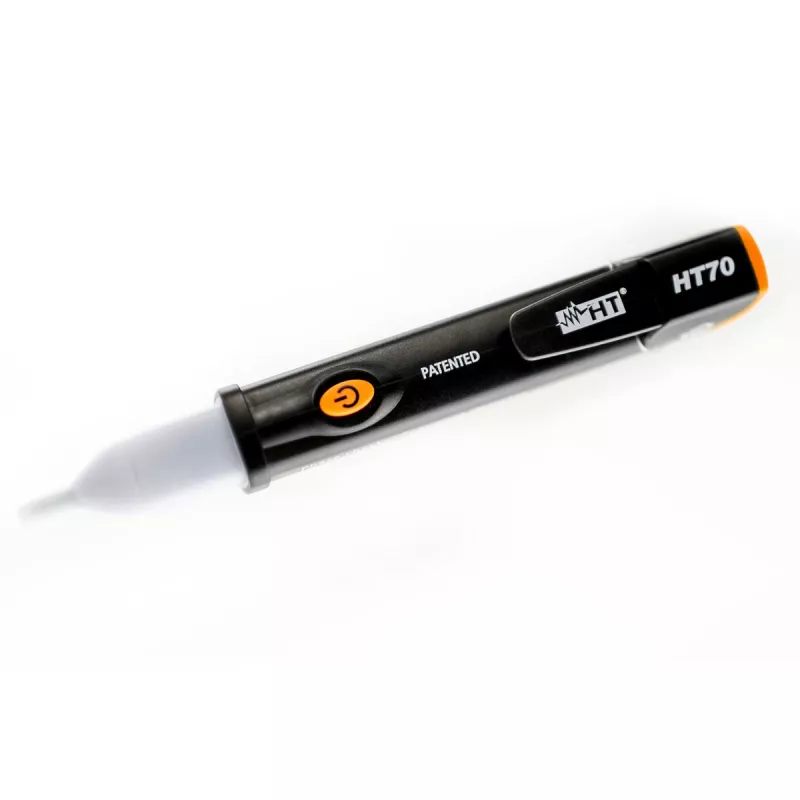

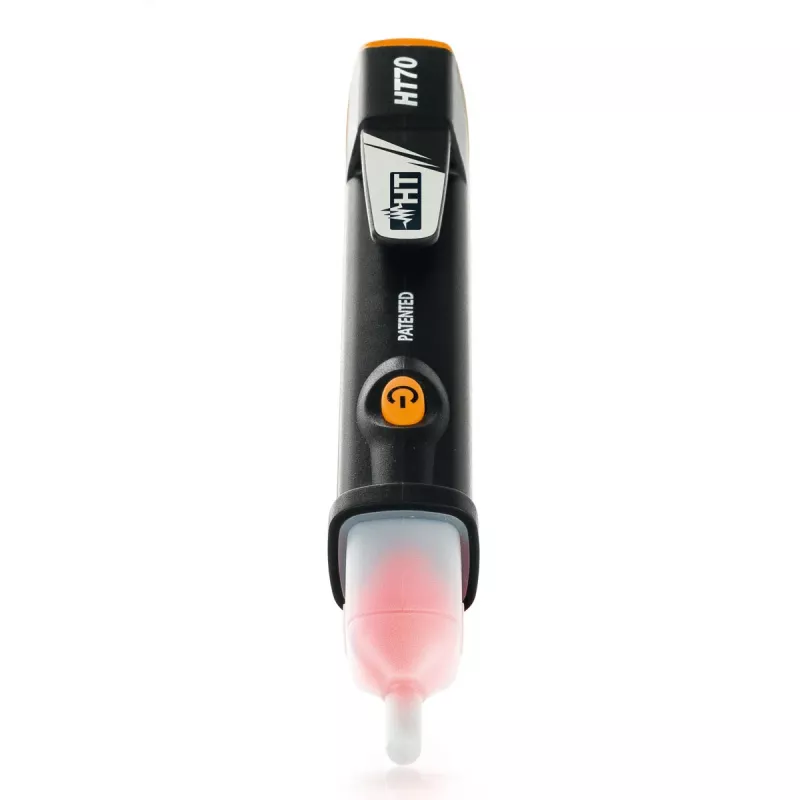

Detetor de tensão sem contacto HT INSTRUMENTS HT70 (1008620)

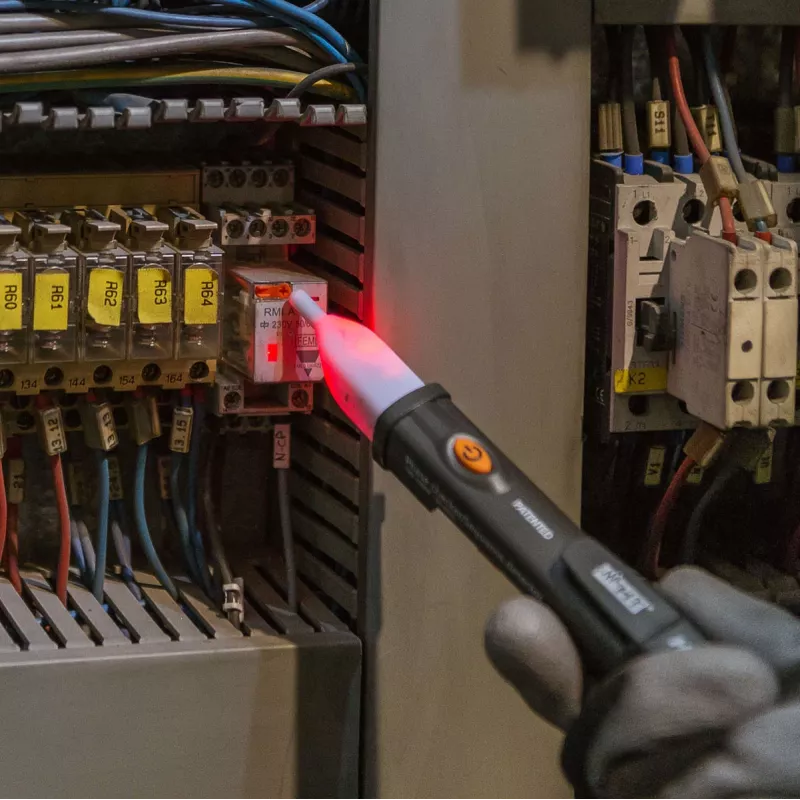

Detecting live AC voltage without direct contact is a daily challenge for electricians and maintenance technicians. The HT70 solves this by providing a safe, quick way to verify the presence of voltage from 12V to 1000V AC, reducing the risk of electrical shock and saving time on troubleshooting.

Who is it for

This tester is ideal for electricians, HVAC technicians, and DIY enthusiasts who need to check outlets, switches, and wiring for live voltage before starting work. Its non-contact operation makes it suitable for use in tight spaces and on insulated wires.

Main features

• Non-contact AC voltage detection from 12V to 1000V
• Visual (red LED) and audible (buzzer) indication
• Integrated LED flashlight for working in dark areas
• Auto power off to conserve battery life
• Compact, pen-style design with ABS housing
• Powered by 2 AAA batteries (not included)

Specifications

• Voltage detection range (AC): 12V - 1000V
• Frequency range: 50/60 Hz
• Safety rating: CAT IV 1000V
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Operating humidity: <80% RH
• Pollution degree: 2
• Max altitude: 2000 m
• Ingress protection: IP40
• Housing material: ABS
• Battery type: 2x 1.5V AAA

Tips

Always test the HT70 on a known live circuit before and after use to ensure proper operation. The LED flashlight can be used independently to illuminate work areas. Replace batteries when the low battery indicator appears to maintain accurate detection.
