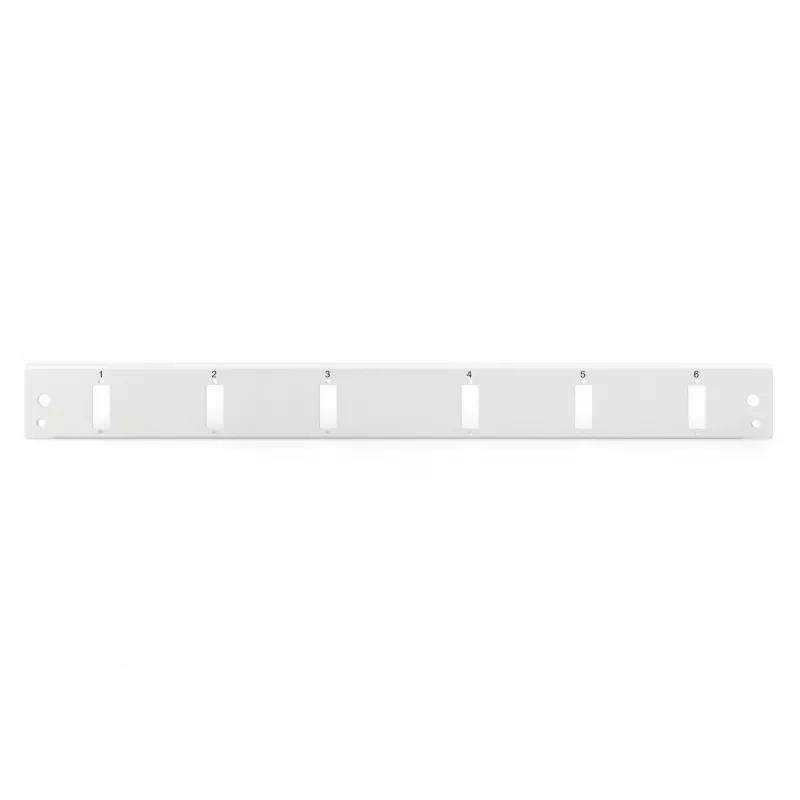

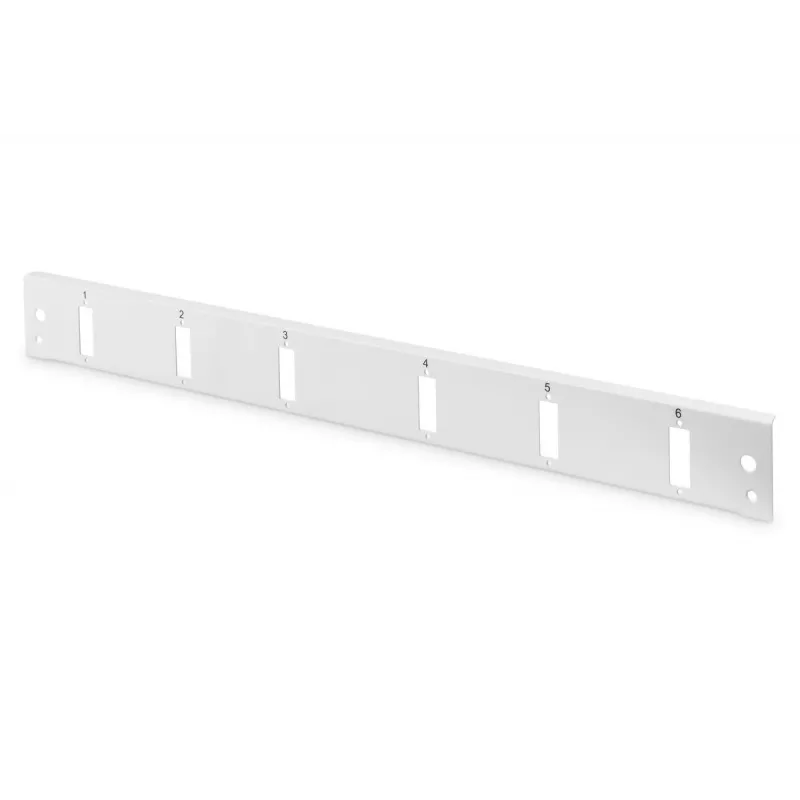

DIGITUS Painel frontal FO Quick Lock 6x SC DX vertical cinzento

The DIGITUS Front Panel DN-96203-QL is a 1U fiber optic splice panel designed for efficient organization and protection of fiber connections in rack installations. It supports up to 6 SC DX connectors and is compatible with the DN-96200-QL basic housing. The panel is supplied with the fixing material required for installation and has compact dimensions (430 mm × 15 mm × 44 mm) in a grey finish.

Advantages

The front panel features a quick lock system that simplifies and speeds up installation compared with conventional fixing methods. It is built to match DIGITUS standards for durability and precise connector alignment, providing tidy cable management and reliable protection for splice points and connectors.

Suitable for

• Data center rack installations
• Telecommunications equipment cabinets
• Network distribution and fiber management panels
• Patch and splice locations requiring 6 SC DX connectors

Key specifications

• Model: DN-96203-QL
• Connector capacity: 6 × SC DX
• Height: 1U (44 mm)
• Width: 430 mm
• Depth: 15 mm
• Color: Grey
• Compatibility: Designed for DIGITUS DN-96200-QL basic housing
• Includes: Fixing material for installation

How to use

Install the front panel into the DN-96200-QL basic housing using the supplied fixing material. Align the panel with the housing front and engage the quick lock mechanism to secure it in place. Route fiber cables and terminate or install SC DX connectors according to standard fiber management and safety practices. Verify connector alignment and secure cable strain relief before closing the housing.

Recommendations

Use the quick lock system for faster front-panel swaps during maintenance; ensure fibers are properly routed and strain-relieved to maintain connector performance and avoid stress on splice points.
