DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado

DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
DIGITUS Professional CAT6A, Classe EA Patch Panel, blindado
93,74 €
PDF
PDF
Stock 7 Código 117834 Modelo DN-91624S-EA-B Garantia 3 anos

Envios e devoluções

Entrega prevista sexta-feira, 4 de dezembro
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

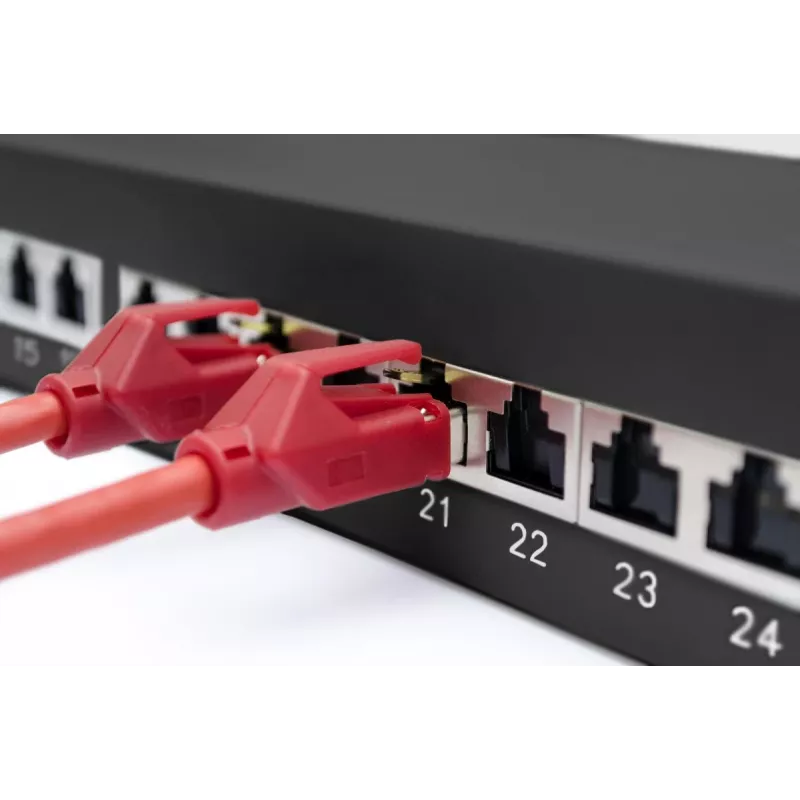

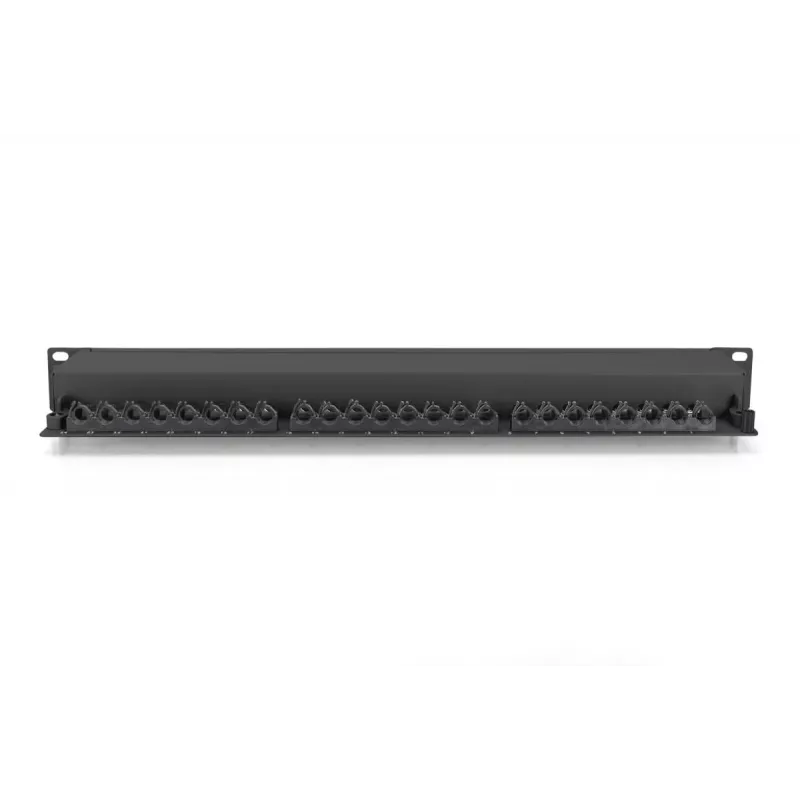

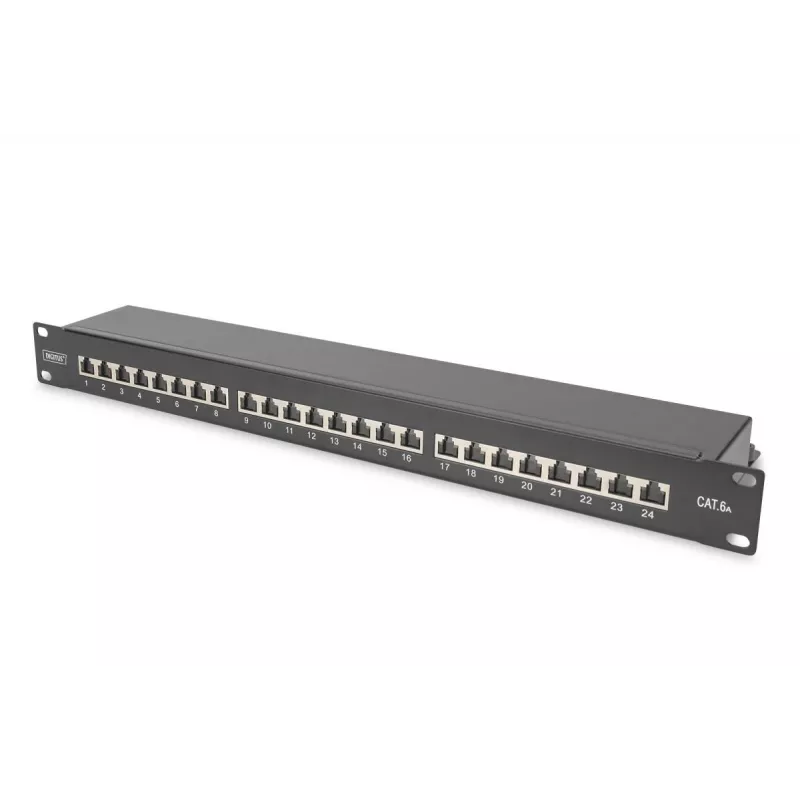

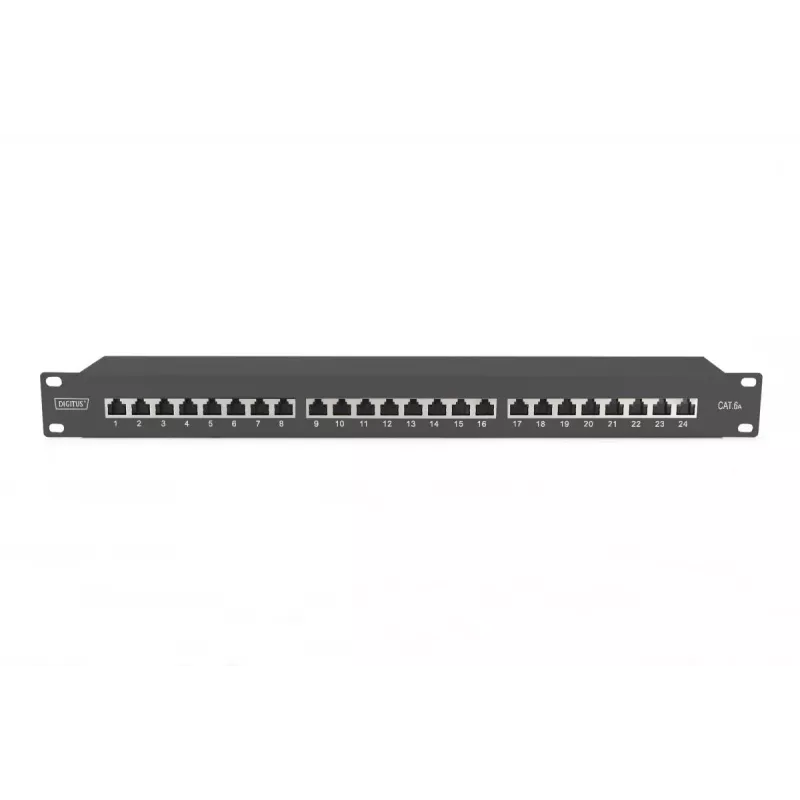

The DIGITUS® DN-91624S-EA CAT 6A 24-port patch panel provides high-end quality and future-oriented standards for structured networks. Constructed from 1.5 mm cold-rolled steel with full metal shielding, it is designed for 19" rack mounting and supports PoE+ (802.3at) and PoE (802.3af) applications. The panel includes dust protection shutters, IDC-strip cable termination and a central grounding connector to ensure reliable shield contact and overall electromagnetic protection.

Advantages

The metal housing and complete shielding deliver effective EMI protection and improved signal integrity. IDC-strip termination and metal-coated cable fixation simplify installation and ensure solid grounding of the cable shield. A central grounding connector and dielectric strength up to 1500 VDC between contact and ground increase safety and durability. Dust protection shutters help maintain connector cleanliness in rack environments.

Key specifications

  • Model: DIGITUS® DN-91624S-EA
  • Ports: 24
  • Category: CAT 6A
  • Housing material: 1.5 mm cold-rolled steel
  • Shielding: complete metal shielding with shield contact

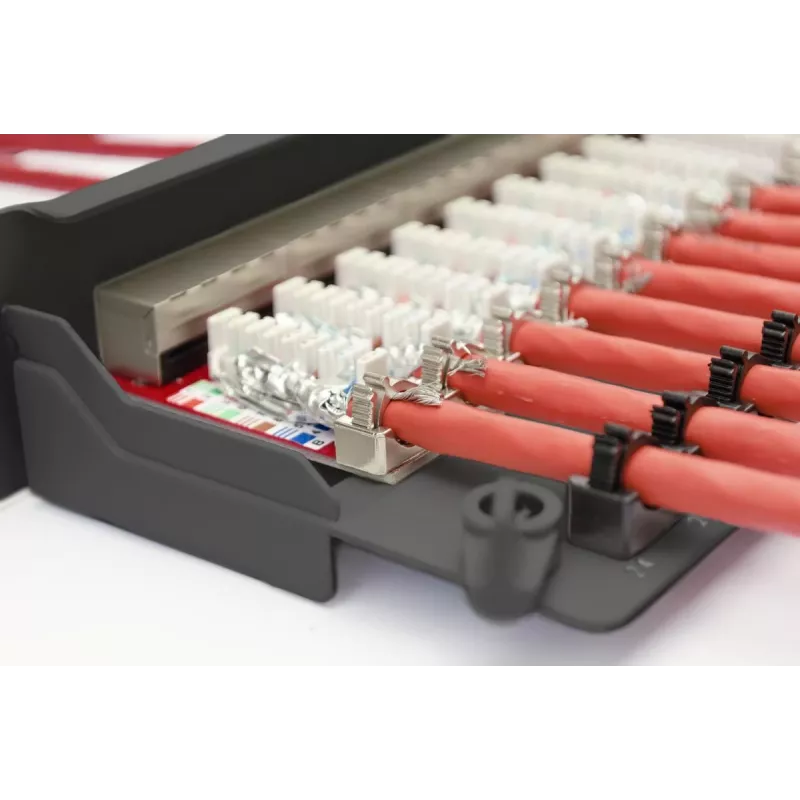

  • Cable termination: IDC-strips
  • Grounding: central grounding connector; metal-coated cable fixation for shield grounding
  • Dielectric strength: up to 1500 VDC (contact/ground)
  • PoE support: 802.3at (PoE+), 802.3af (PoE)
  • Mounting: 19" rack
  • Additional: dust protection shutters

How to use

Mount the patch panel in a standard 19" rack and secure it with appropriate screws. Terminate network cables using the IDC-strips according to the color code and ensure the cable shield is connected to the metal-coated fixation. Connect the central grounding connector to the rack or building ground to establish a continuous shield ground. Verify connections and test links before placing the assembly into production.

Recommendations

For optimal performance, use CAT 6A shielded cables and maintain consistent grounding throughout the rack. Regularly inspect the dust protection shutters and clean contacts if necessary. Follow PoE power budgets and equipment specifications when deploying powered devices.

Destaques principais
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C

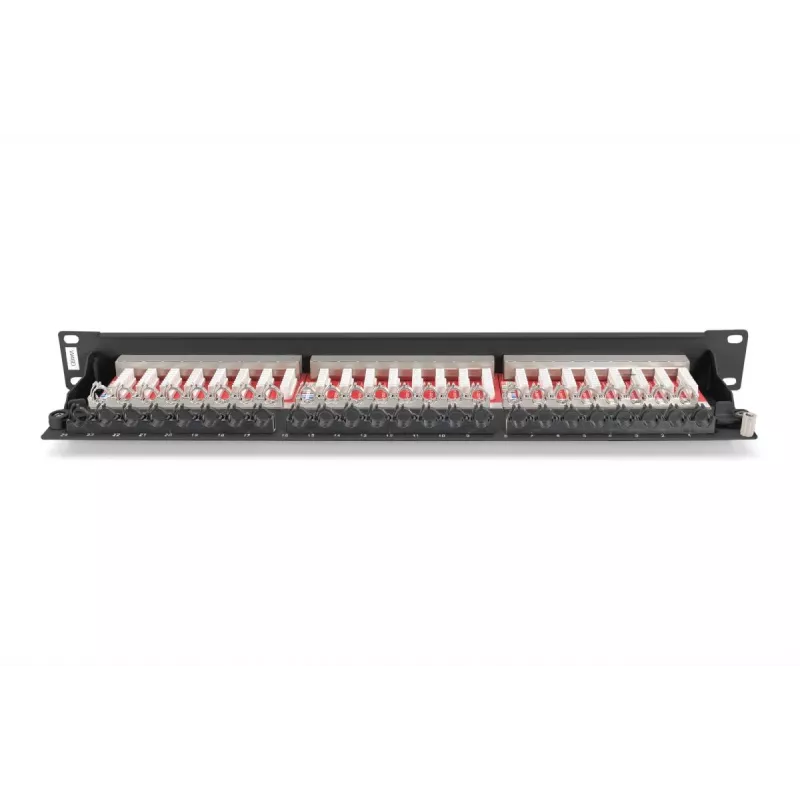

  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-0, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors"
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Especificações

Especificações
Altura
44 mm
Capacidade do rack
1U
Código da pauta aduaneira do Reino Unido
85369010
Código do Sistema Harmonizado (HS)
85371098
Conectores
RJ-45
Cor do produto
Preto
Largura
482.6 mm
Largura da embalagem
483 mm
Material
Aço
Montagem
Montagem em bastidor
Número de portas
24
País de origem
China
Peso da embalagem
1.69 kg
Profundidade
109 mm
Profundidade da embalagem
110 mm
Tampa antipoeira
Sim
Temperatura de funcionamento (T-T)
-20 - 70 °C
Tipos de cabos suportados
Cat6a
Volume da embalagem
2390.85 cm³
