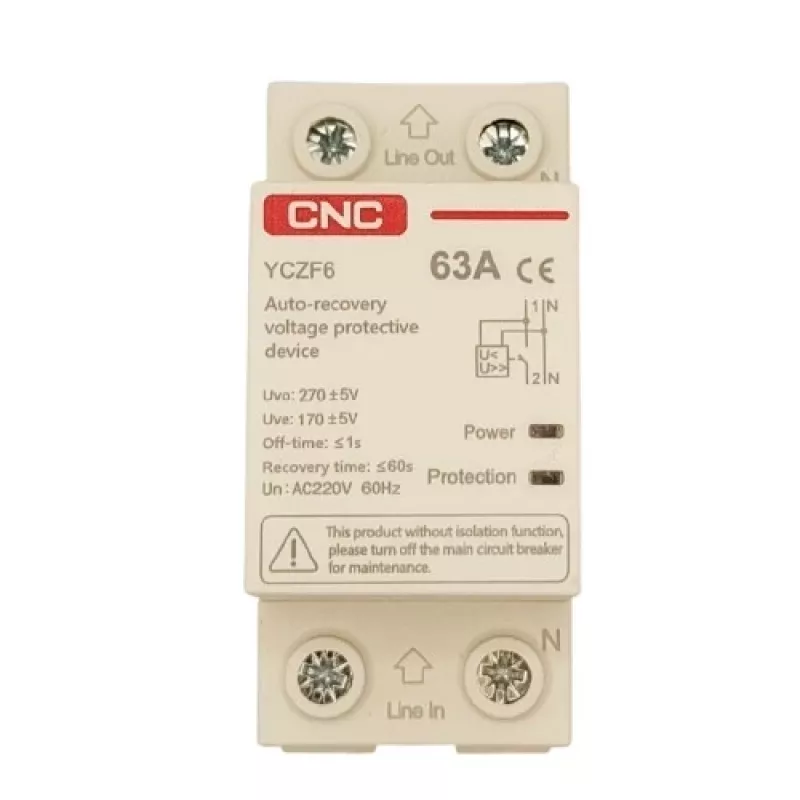

CNC EL240302 Relé de proteção de tensão com reposição automática, 1P+N, 63 A, 230 V

The CNC EL240302 is a voltage protection relay with auto-reset function, designed to protect electrical equipment from overvoltage and undervoltage in AC 230V circuits with a rated operating current up to 63A. It quickly and reliably disconnects the circuit when voltage issues occur and automatically reconnects power when voltage returns to normal. It features a compact design, reliable operation, and easy installation on a DIN rail.

Key features

• Overvoltage protection
• Undervoltage protection
• Automatic reset
• LED indicators for power and protection status (red, green)
• DIN rail mounting (35mm)

Specifications

• Brand: CNC
• MPN: EL240302
• Rated voltage: AC 230V
• Current: 63 A
• Frequency: 50/60Hz
• Overvoltage threshold: AC 270V ±5V
• Undervoltage threshold: AC 170V ±5V
• Overvoltage recovery value: AC 255V ±5V
• Undervoltage recovery value: AC 185V ±5V
• Response time: ≤ 1s
• Return time: ≤ 60s
• Number of contacts: 1P+N
• Power consumption: < 2W
• Electrical life: > 50000 cycles
• Installation: on DIN rail (35mm)
• Operating temperature: -35°C to +70°C
• Mounting surface inclination must not exceed 5°
