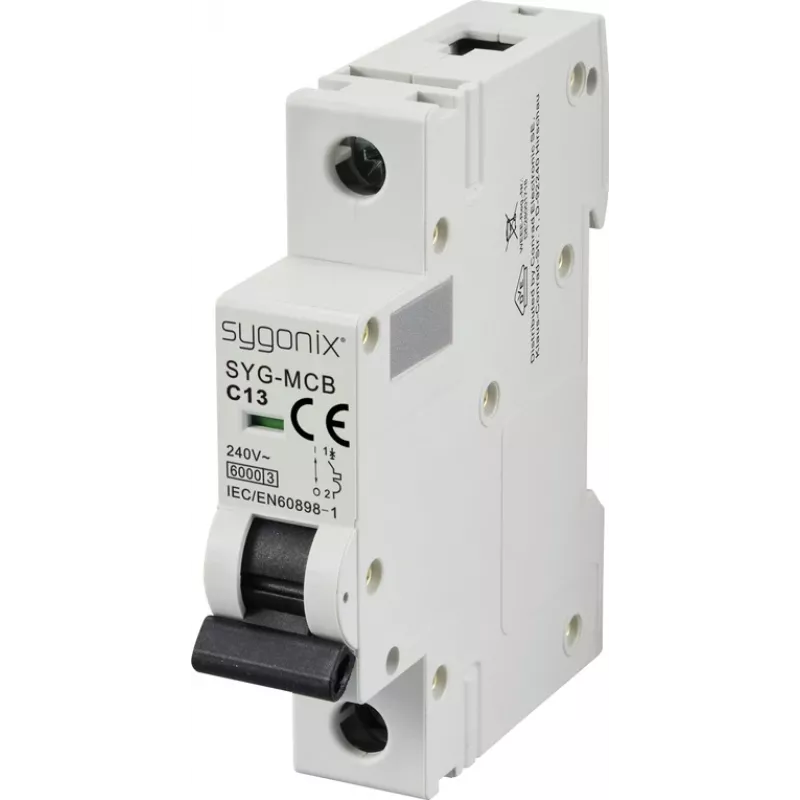

Disjuntor automático Sygonix SY-6440890 SYG-MCB 1P C13 6kA 13A 240V AC

The Sygonix SY-6440890 is a 1-pole miniature circuit breaker with C-curve tripping characteristic, rated for 13 A and 240 V AC. Its 6 kA breaking capacity and DIN rail mounting make it a reliable choice for protecting circuits in residential and commercial installations.

Highlights

• 1-pole MCB with C-curve for general circuit protection
• Rated current 13 A, rated voltage 240 V AC
• Short-circuit breaking capacity 6 kA
• DIN rail mounting for standard distribution boards
• Screw terminals accept conductors from 1 to 25 mm²

In daily use

This breaker trips on overloads and short circuits, protecting wiring and connected equipment. The C-curve suits circuits with moderate inrush currents, such as lighting and socket outlets. Its compact size and screw terminals allow straightforward installation.

Full specifications

• Number of poles: 1
• Tripping characteristic: C
• Rated current: 13 A
• Rated voltage: 240 V AC
• Rated short-circuit breaking capacity (Icn): 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Connection capacity: 1 - 25 mm²
• Protection class: IP20
• Standard compliance: EN 60898-1
• Energy limiting class: 3
• Overvoltage category: III
• Operating temperature range: -25°C to +55°C

Final note

A dependable MCB for standard circuit protection, meeting EN 60898-1 requirements.
