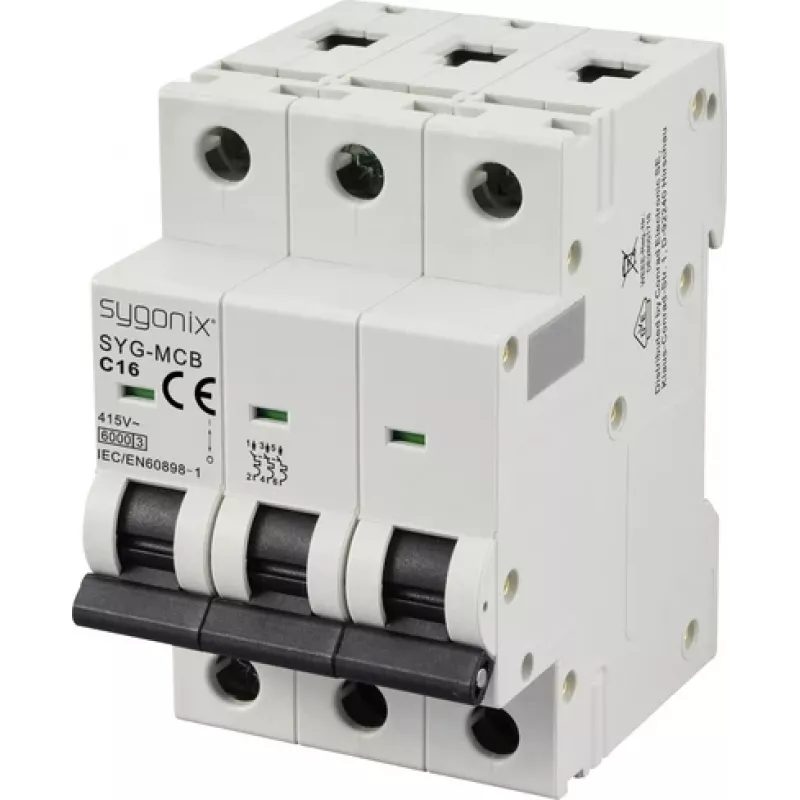

Disjuntor de proteção de linha Sygonix SY-6441084 3 polos C16 16A 6kA, 415V AC, montagem em calha DIN

The Sygonix SY-6441084 is a 3-pole miniature circuit breaker (MCB) with a C tripping characteristic, rated at 16 A and 415 V AC. It provides reliable overcurrent and short-circuit protection with a breaking capacity of 6 kA, making it suitable for residential and commercial distribution boards. Its compact DIN rail mounting allows quick installation in standard enclosures.

Highlights

• 3-pole MCB with C curve for general circuit protection
• Rated current 16 A, rated voltage 415 V AC
• Short-circuit breaking capacity 6 kA
• DIN rail mounting for easy installation
• Terminal capacity 1–25 mm²

In daily use

This breaker is ideal for protecting three-phase circuits against overloads and short circuits. Its C characteristic handles moderate inrush currents, making it suitable for lighting and socket circuits. The IP20 terminal protection and IP40 housing ensure safe operation in distribution boards.

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 3
• Tripping characteristic: C
• Rated current: 16 A
• Rated voltage: 415 V AC
• Short-circuit breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Energy limiting class: 3
• Degree of protection (housing): IP40
• Degree of protection (terminals): IP20
• Terminal capacity: 1–25 mm²
• Operating temperature range: -25°C to +55°C
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 500 V
• Electrical life: ≥ 10,000 operations
• Mechanical life: ≥ 20,000 operations
• Standards: IEC/EN 60898-1

Final note

With its robust construction and compliance with IEC/EN 60898-1, the Sygonix SY-6441084 offers dependable protection for modern electrical installations.
