Dispositivo de bloqueio para disjuntor Sygonix SY-6872536 vermelho 54 mm

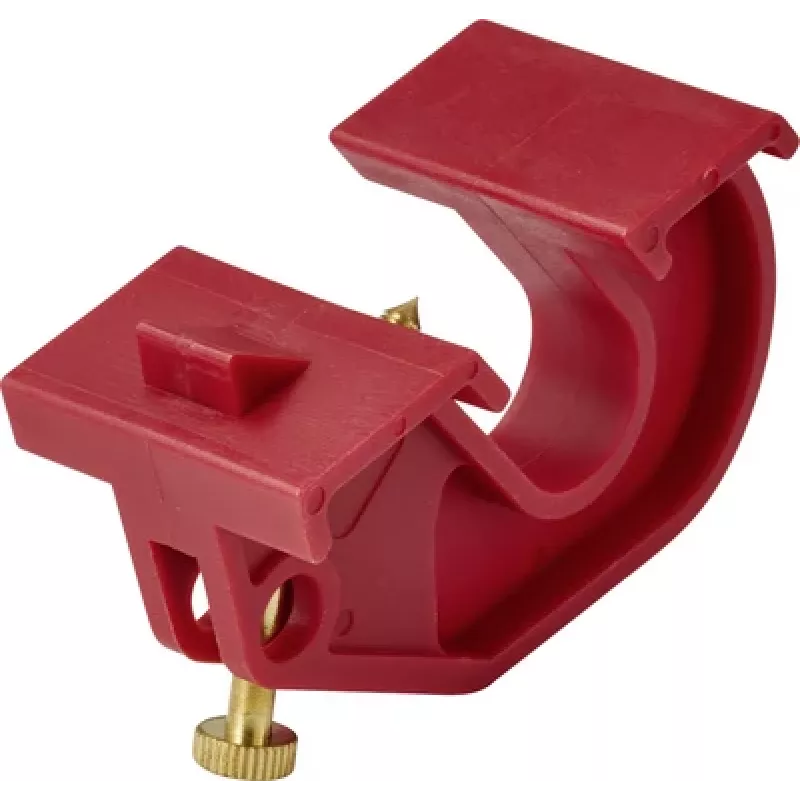

The Sygonix SY-6872536 is a circuit breaker lockout device engineered for safety in electrical maintenance. Unlike generic lockout tags that only warn, this clamp-on lock physically prevents the breaker toggle from being moved to the ON position, eliminating accidental re-energization during service or repair.

Highlights

• Tool-free clamp-on installation fits standard single and multi-pole circuit breakers with toggle width up to 54 mm
• Reinforced nylon construction is non-conductive, corrosion resistant, and UV resistant for long service life
• Accepts padlocks with shackle diameter up to 7 mm (padlock not included)
• High-visibility red colour clearly signals a locked-out breaker
• Withstands temperatures from -20 °C to +120 °C and resists chemicals

In daily use

During lockout/tagout procedures, the device is clamped over the breaker toggle and secured with a padlock. Only the person who applied the lock can remove it, ensuring the circuit remains de-energized until work is complete. The tool-free design allows quick installation without special tools, and the rugged nylon body withstands harsh industrial environments.

Full specifications

• Product type: Circuit breaker lock
• Application: Lockout/tagout (LOTO)
• Colour: Red
• Material: Reinforced nylon
• Max. toggle width compatibility: 54 mm
• Max. padlock shackle diameter: 7 mm
• Temperature range: -20 °C to +120 °C
• Chemical resistance: Yes
• Corrosion resistance: Yes
• UV resistance: Yes
• Dielectric strength: High (non-conductive)
• Installation method: Tool-free, clamp-on
• Safety feature: Prevents accidental re-energization
• Padlock included: No

Final note

A reliable LOTO accessory that meets the demands of professional electrical safety programs.
