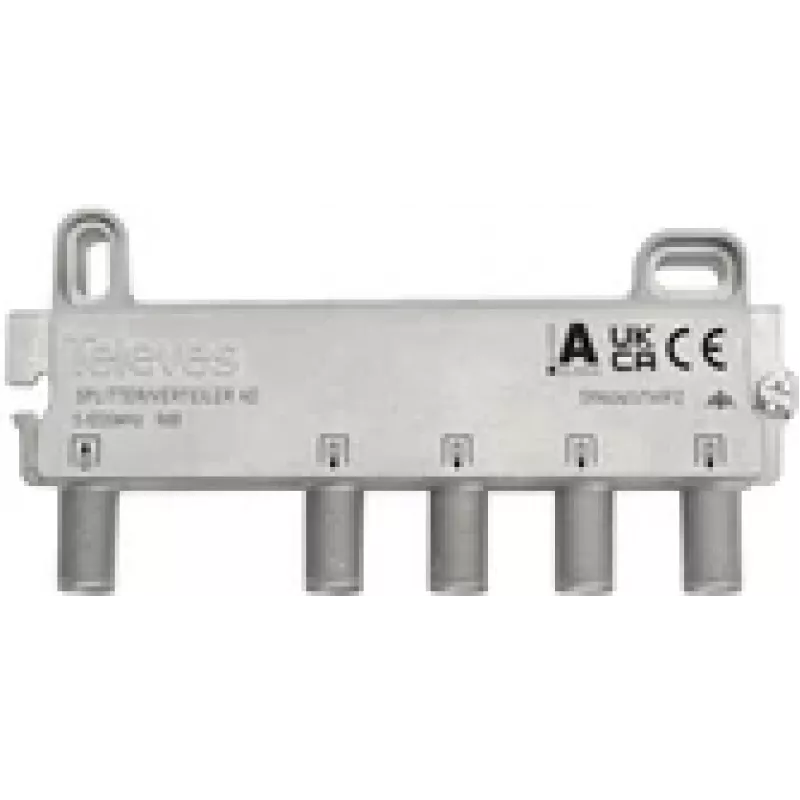

Distribuidor de 4 vias Televes VT49FZ 5–1218 MHz 9 dB

Televes VT49FZ 4-way splitter distributes an RF signal from a single input to four outputs within the 5–1218 MHz frequency range. The device provides a consistent 9 dB splitting level per output and is intended for use in antenna and cable networks where compact, passive distribution is required. Its design supports multiple receivers or tuners while preserving the signal characteristics typical for terrestrial and cable TV services.

Advantages

The splitter delivers uniform signal division across four outputs with 9 dB attenuation per path, ensuring predictable signal levels at each receiver. It covers a wide frequency band (5–1218 MHz), suitable for VHF/UHF terrestrial signals and many cable services. Passive construction requires no external power and offers mechanical compatibility with standard coaxial installations, reducing the need for additional active equipment.

Suitable for

• Home or small office antenna distribution to multiple TVs or set‑top boxes
• Splitting cable TV signals to several tuners or receivers
• Local test setups where consistent passive splitting across 5–1218 MHz is required
• Situations where a compact, wall‑mounted or rack‑mounted passive splitter is preferred

Key specifications

• Frequency range: 5–1218 MHz
• Number of outputs: 4
• Splitting attenuation per output: 9 dB
• Type: passive RF splitter
• Connector type: standard coaxial F-type compatible

How to use

Connect the incoming antenna or cable feed to the splitter input and attach coaxial cables from each of the four outputs to the target receivers or devices. Ensure all connections are tightened to provide secure contact and minimize signal loss. Place the splitter in a dry, ventilated location and route coaxial cables to avoid sharp bends or kinks. No external power source is required for operation.

Recommendations

For best results, verify signal levels at each receiver after installation; use an inline amplifier only if individual outputs do not meet the required signal thresholds. Avoid chaining multiple passive splitters without amplification, as cumulative attenuation can degrade reception quality. Use good-quality coaxial cable and properly grounded installations to reduce interference and maintain signal integrity.
