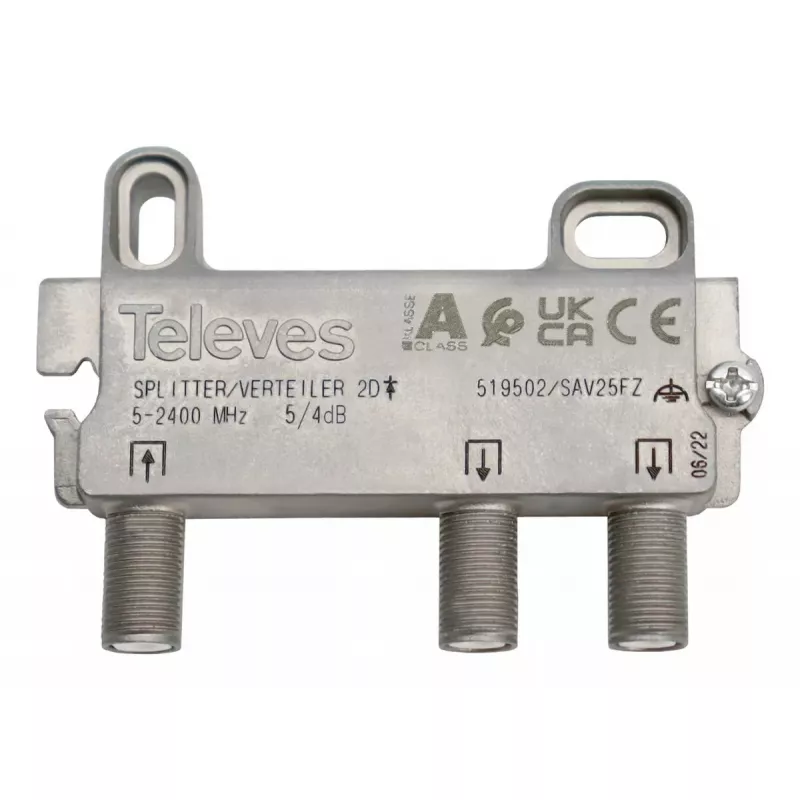

Distribuidor de cabo Televes 519502 aço inoxidável 5-2400 MHz

The Televes 519502 is a 2-way F‑connector splitter for SMATV and cable distribution, covering a frequency range of 5–2400 MHz. It has a compact stainless steel chassis (74 × 18 × 54 mm) and low through losses due to miniaturized electronic components, making it suitable for indoor installation on a wall, rack plate or Standard DIN rail.

Advantages

Compact dimensions and miniaturized internal components reduce insertion loss and improve electrical performance. The Zamak/stainless steel chassis provides effective shielding against interference while keeping the unit lightweight (0.059 kg). Designed for indoor mounting, the splitter fits wall panels, rack plates or DIN rails for flexible installation.

Suitable for

• SMATV and cable TV distribution systems
• Splitting a single feed to two receivers

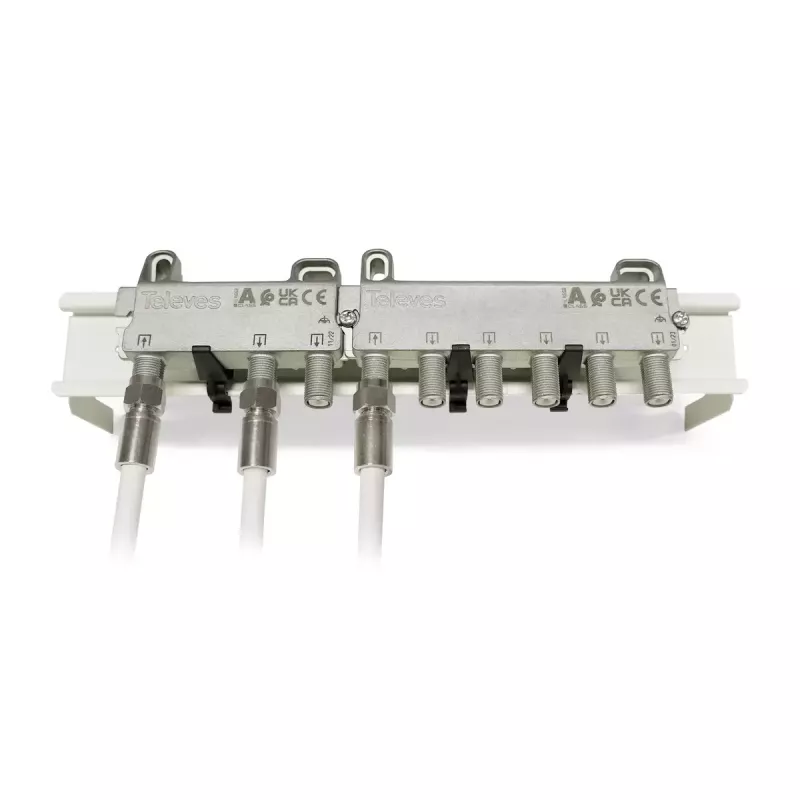

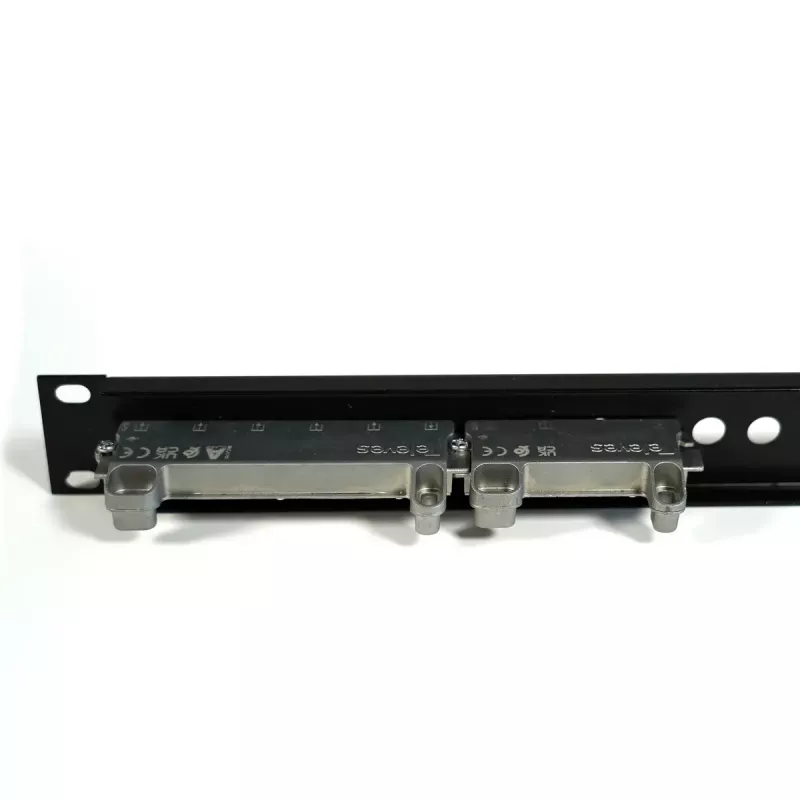

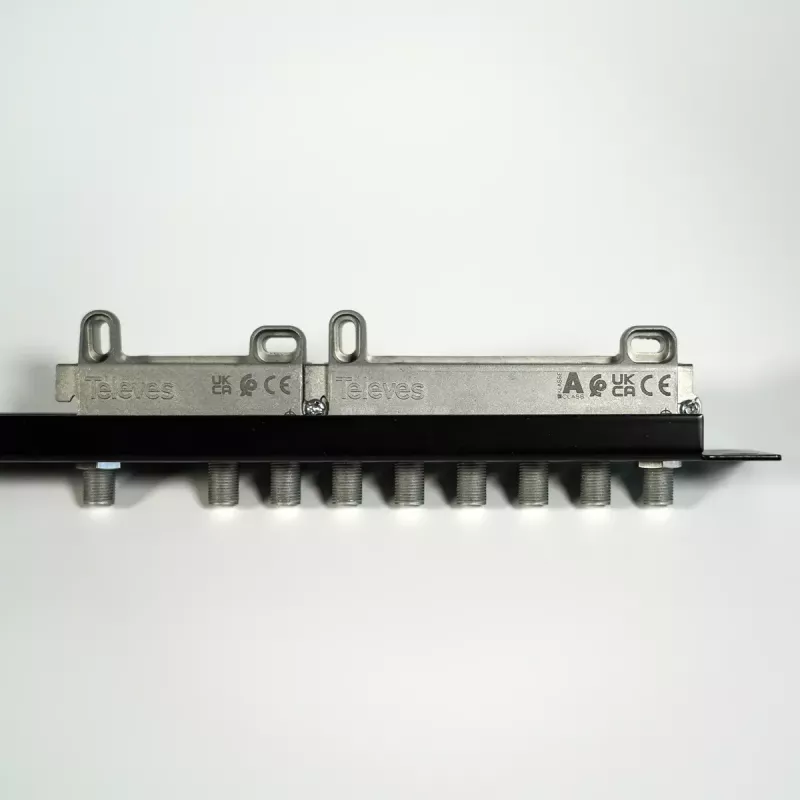

• Indoor installations on walls, rack plates or DIN rails

Key specifications

• Model: Televes 519502 (MPN: SAV25FZ)
• Type: 2-way splitter with F connectors
• Frequency range: 5–2400 MHz
• Body material: stainless steel / Zamak chassis
• Dimensions: 74 mm (W) × 18 mm (D) × 54 mm (H)
• Weight: 0.059 kg

How to use

Connect the incoming coaxial cable to the splitter input F connector and attach the two output cables to the output F connectors. Ensure all F connectors are tightened to provide proper contact and shielding. Mount the splitter indoors on a wall, rack plate or DIN rail using appropriate fasteners, keeping it away from moisture and extreme heat sources.

Recommendations

For best performance, use good‑quality F‑type cables and connectors, avoid sharp bends in coaxial cables, and verify signal levels after installation to ensure acceptable losses across the 5–2400 MHz range.
