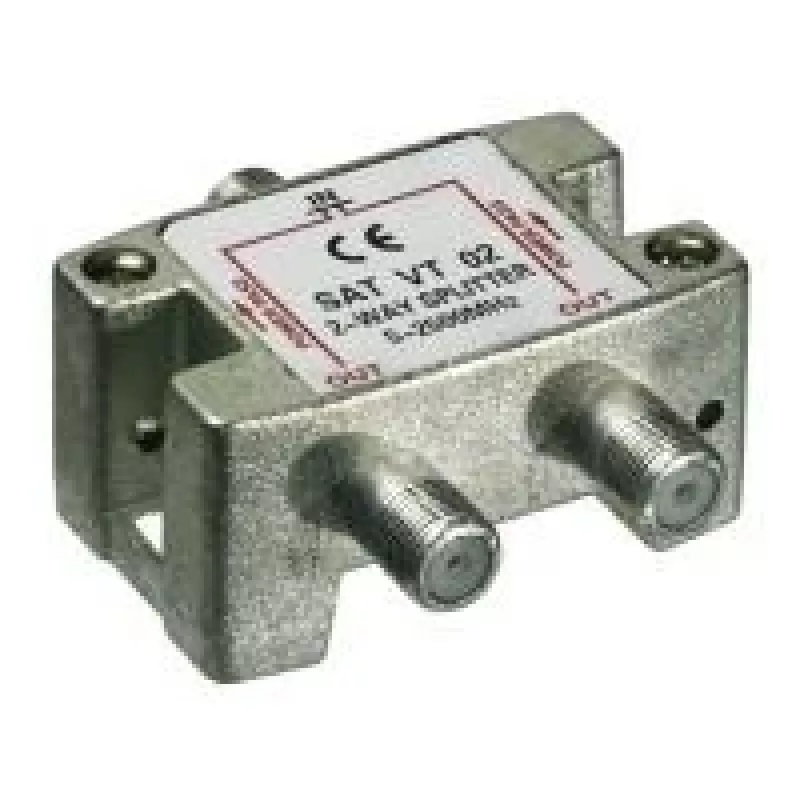

Distribuidor SAT de 2 vias Wentronic Goobay 5-2500 MHz tipo F (67001)

This 2-way SAT splitter from Wentronic Goobay stands out with its wide 5–2500 MHz frequency range, making it suitable for modern satellite installations including UHD and 8K-ready systems. Unlike basic splitters, it offers high shielding and DC pass-through on all ports, ensuring reliable signal distribution for multiple receivers.

Highlights

• Distributes one satellite signal to two outputs
• Broad frequency range: 5–2500 MHz
• F-type connectors, 75 Ohm impedance
• DC pass on all ports for remote-powered LNBs
• Zinc die-cast housing with wall-mount holes

In daily use

Install the splitter close to your satellite dish or distribution point. Connect the incoming cable from the LNB to the input, then run cables to two receivers. The DC pass-through allows one receiver to power the LNB while the other operates normally. The robust metal housing protects against interference and physical damage.

Full specifications

• Product type: SAT splitter / distributor
• Inputs: 1
• Outputs: 2
• Frequency range: 5–2500 MHz
• Connector type: F-type (female)
• Impedance: 75 Ohm
• Insertion loss: approx. 4 dB per output
• Isolation: >20 dB
• Return loss: >10 dB
• DC pass: Yes, all ports
• Shielding factor: >100 dB
• Housing material: zinc die-cast
• Colour: silver
• Mounting: screw holes for wall mounting

Final note

For reliable satellite signal splitting in residential and commercial setups, this Wentronic Goobay splitter delivers consistent performance across the full satellite band.
