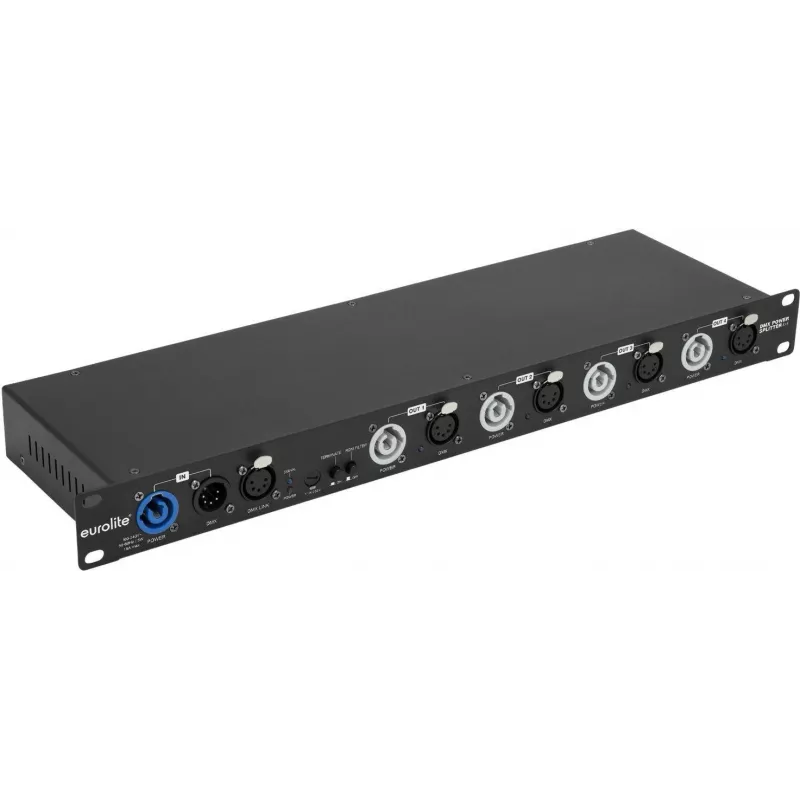

DMX-Power-Splitter EUROLITE 70064807 4x4 5-Pin XLR

EUROLITE 70064807 4x4 5-pin XLR DMX power splitter distributes a single DMX input to multiple isolated outputs, ensuring stable signal distribution for stage lighting and installation projects. The unit features a 4x4 topology with 5-pin XLR connectors designed for professional lighting rigs and event setups where reliable DMX distribution and reduced interference are required. Built to separate and buffer channels, this DMX power splitter helps protect consoles and fixtures from ground loops and signal degradation.

Advantages

This DMX power splitter provides galvanic isolation between input and outputs, reducing the chance of interference and preventing ground loop issues. Its 5-pin XLR connectors follow professional DMX wiring conventions to maintain compatibility with a wide range of lighting equipment. The 4x4 configuration allows one DMX feed to be routed to multiple lines without signal loss, and the rugged construction is suitable for repeated use in live events and fixed installations.

Suitable for

Key specifications

How to use

Connect the DMX controller or console to the unit's primary 5-pin XLR input, then run 5-pin XLR cables from the isolated outputs to the respective lighting fixtures or DMX chains. Ensure proper wiring and termination of the final DMX line in each run according to DMX512 practice. Power the unit and verify signal distribution by checking fixture response from each output. When integrating into larger systems, use the splitter to create separate DMX branches to minimize cable runs and reduce the risk of signal faults propagating across the entire system.

Recommendations

Place the splitter in a dry, ventilated location away from high electromagnetic interference sources. Use quality 5-pin XLR cables and respect proper DMX termination on the last device of each branch to preserve signal integrity. Inspect connectors and cables regularly and replace damaged cabling to avoid intermittent faults during events.
