Donau Elektronik 119-11 fio flexível 1 x 0,14 mm² preto 100 m

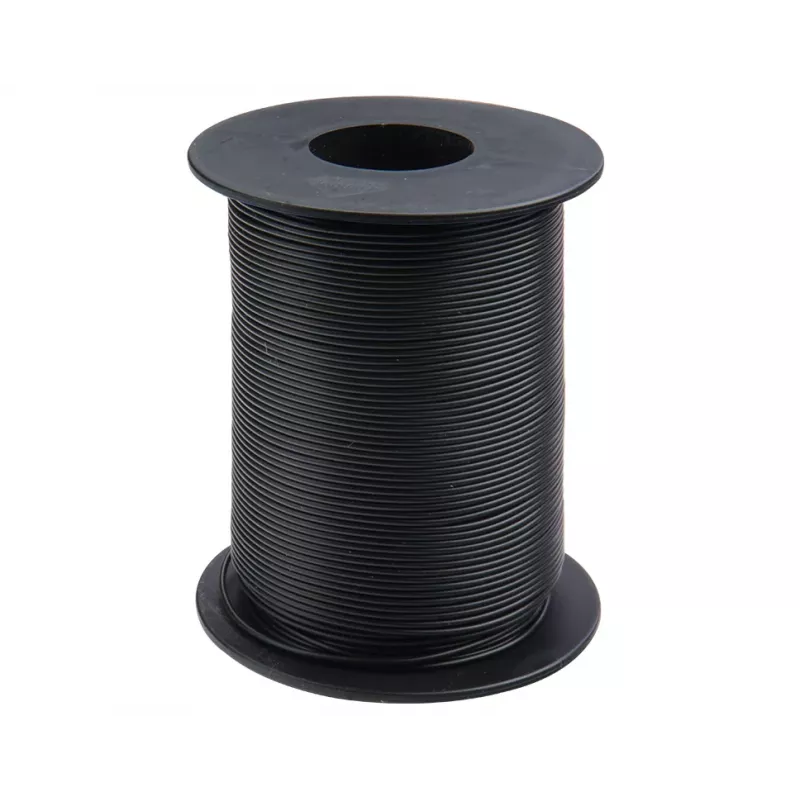

For low-voltage internal wiring and model building, a reliable, flexible conductor is essential. The Donau Elektronik 119-11 stranded wire delivers exactly that: a single-core, tinned copper conductor with a 0.14 mm² cross-section, insulated in black PVC. Supplied on a 100-meter spool, it provides ample length for multiple projects, from repairing electronics to creating custom wiring harnesses. Its fine strand construction (7 x 0.16 mm) ensures excellent flexibility, making it easy to route in tight spaces without breaking.

Who is it for

This wire is ideal for hobbyists, technicians, and engineers working on low-voltage circuits, model railways, LED lighting, or internal appliance wiring. It suits anyone who needs a dependable, RoHS-compliant stranded wire that can handle up to 1.5 A and temperatures from -20°C to +80°C.

Main features

• Stranded tinned copper conductor (7 x 0.16 mm) for superior flexibility
• PVC insulation in black for easy identification and durability
• 100 m spool length for extended use
• Rated voltage: 300 V; max current: 1.5 A
• Operating temperature range: -20°C to +80°C
• RoHS compliant for environmental safety

Specifications

• Wire type: Stranded wire (Litze)
• Number of cores: 1
• Conductor cross-section: 0.14 mm² (AWG 26)
• Conductor material: Tinned copper
• Strand construction: 7 x 0.16 mm
• Insulation material: PVC
• Insulation colour: Black
• Nominal outer diameter: 1.3 mm
• Length: 100 m
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Max current rating: 1.5 A
• Conductor resistance: Approx. 130 Ohm/km
• Application: Internal wiring, model building, low voltage circuits
• Packaging: Spool / Reel
• RoHS compliant: Yes
• Series: Donau Elektronik 119 Series

Tips

When stripping the insulation, use a wire stripper set to 0.14 mm² to avoid nicking the fine strands. For soldering, pre-tin the wire ends for a secure connection. Store the spool in a dry place to maintain insulation integrity.
