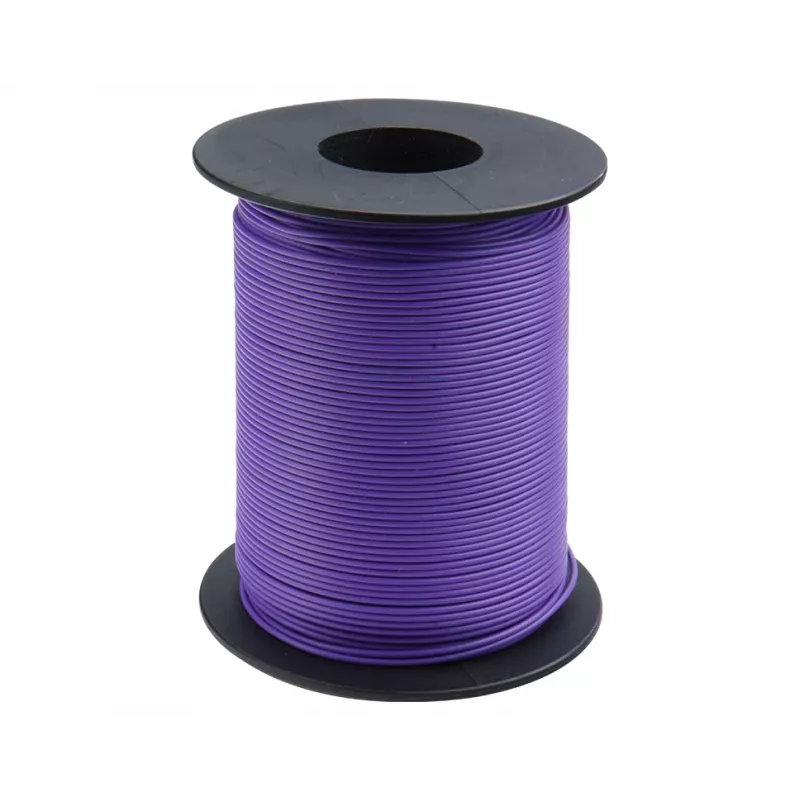

Donau Elektronik 119-16 fio flexível 1 x 0,14 mm² violeta 100 m

For electronics enthusiasts, technicians, and model builders, this 100-meter spool of violet stranded wire from Donau Elektronik is a dependable choice for internal wiring and control circuits. The 1 x 0.14 mm² tinned copper conductor offers excellent solderability and corrosion resistance, while the PVC insulation provides reliable protection and flexibility.

Key specifications

• Wire type: Stranded (Litze)
• Number of cores: 1
• Conductor cross-section: 0.14 mm² (26 AWG)
• Conductor material: Tinned copper
• Conductor construction: 18 x 0.1 mm
• Insulation material: PVC
• Insulation colour: Violet
• Length: 100 m
• Rated voltage: 300 V
• Operating temperature range: -20°C to +70°C
• Approx. outer diameter: 1.3 mm
• Conductor resistance: approx. 13.5 Ohm/100m
• Flame retardancy: Self-extinguishing
• Standards: VDE, RoHS

Why choose it

This wire is manufactured to VDE standards and is RoHS compliant, ensuring safety and environmental responsibility. The tinned copper strands resist oxidation, making soldering easier and connections more reliable over time. The violet PVC jacket is not only visually distinct for colour-coding but also provides good insulation and mechanical protection.

Ideal use cases

• Internal wiring of electronic devices
• Control circuits and signal wiring
• Model building and hobby projects
• Prototyping and repairs

Good to know

Supplied on a convenient spool, the wire can be easily dispensed and stored. The self-extinguishing PVC insulation enhances safety in case of fire. With a wide operating temperature range, it performs reliably in various environments.
