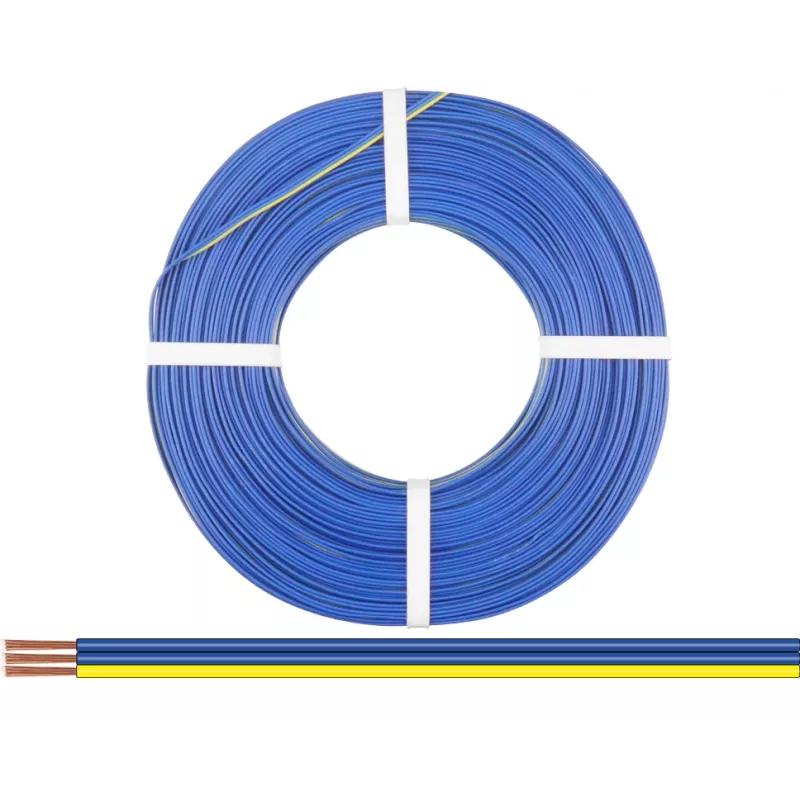

Donau Elektronik 318-223-50 Fio flexível de 3 condutores 0,14 mm² azul/azul/amarelo 50 m bobina

For projects that demand compact, flexible multi-conductor wiring, this 3-core stranded wire from Donau Elektronik stands out with its fine-stranded copper construction and PVC insulation. Each core is colour-coded blue, blue, and yellow, making circuit identification straightforward even in tight enclosures. The 50-metre spool provides ample length for prototyping, repairs, or small production runs without frequent reordering.

Highlights

• 3 conductors, each 0.14 mm² cross-section, ideal for low-current signal and control applications
• Fine-stranded copper conductors ensure excellent flexibility and resistance to fatigue
• PVC insulation rated for 300 V nominal voltage and temperatures from -20°C to +80°C
• Distinct colour coding: blue, blue, yellow – simplifies tracing and reduces wiring errors
• Supplied on a 50 m spool, RoHS compliant for environmentally conscious projects

In daily use

Whether you are wiring a model railway layout, building a custom control panel, or repairing electronic equipment, this wire handles easily and routes cleanly. The fine stranding allows tight bends without breaking, while the PVC jacket resists abrasion and common chemicals. The 300 V rating covers most low-voltage DC and AC circuits, making it a dependable choice for hobbyists and technicians alike.

Full specifications

• Product type: Multi-core stranded wire
• Number of conductors: 3
• Conductor cross-section: 0.14 mm² per core
• Conductor material: Copper, fine-stranded
• Insulation material: PVC
• Conductor insulation colours: Blue, blue, yellow
• Cable length: 50 m
• Nominal voltage: 300 V
• Operating temperature range: -20°C to +80°C
• Approx. outer diameter: 3.5 mm
• Packaging: Spool
• RoHS compliant: Yes

Final note

With its balanced flexibility, clear colour coding, and generous length, this Donau Elektronik wire is a practical addition to any electronics workspace.
