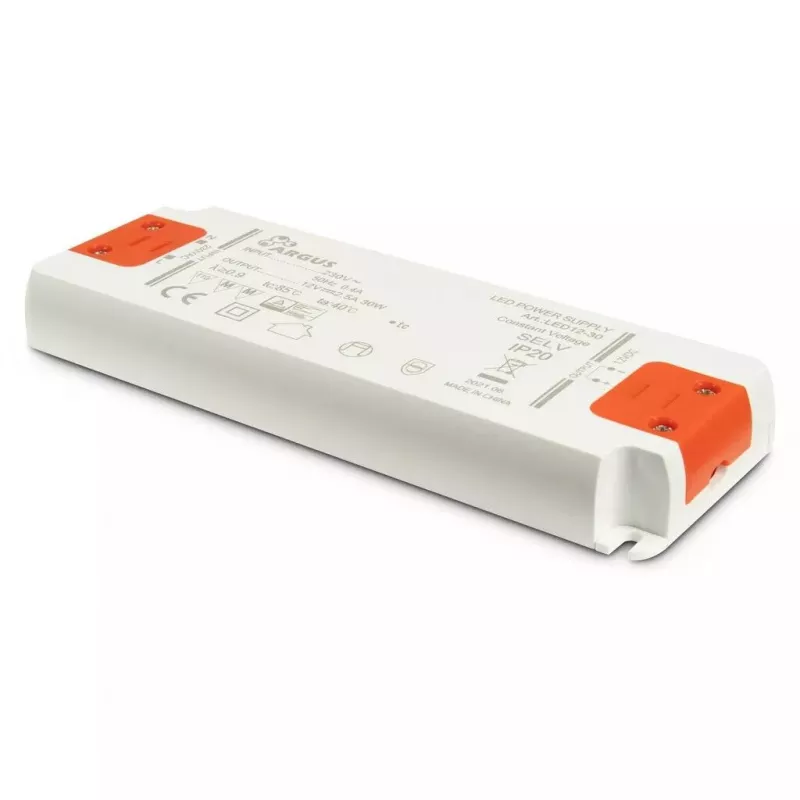

Driver LED Inter-Tech LED12-30 30W IP20 100000h 207-253V

The Inter-Tech LED12-30 is a 30W LED driver delivering a 12V output at 2500mA. Designed for installations requiring a compact, long‑life power supply, it accepts an AC input of 207–253V at 50/60Hz, has an IP20 protection rating and an MTBF of 100,000 hours. The unit includes five protective circuits to safeguard connected LEDs and components and measures 58mm × 160mm × 18mm.

Advantages

This LED driver provides a stable 12V DC output at 2500mA with built‑in protection against common electrical faults. Its long MTBF of 100,000 hours and compact dimensions make it suitable for confined installations. The IP20 rating and multiple protection circuits contribute to reliable operation in indoor environments.

Suitable for

• Indoor LED lighting installations
• Powering LED strips and modules requiring 12V/2500mA
• Compact luminaires and retrofit projects
• Applications needing a durable 30W constant-voltage driver

Key specifications

• Output voltage: 12V DC
• Output current: 2500mA
• Power: 30W
• Input voltage: 207–253V AC, 50/60Hz
• Protection class: IP20
• MTBF: 100,000 hours
• Dimensions (W×D×H): 58mm × 160mm × 18mm

How to use

Install the LED12-30 in a dry, ventilated indoor location and mount it according to local electrical codes. Connect the AC input to a 207–253V, 50/60Hz supply and the DC output to 12V LED devices rated for up to 30W and 2500mA. Ensure correct polarity on the DC connections and secure all wiring. Do not expose the unit to water or install in locations that require a higher IP rating.

Recommendations

Use this driver with compatible 12V LED modules and strips whose combined power does not exceed 30W. For extended service life, avoid high ambient temperatures and provide adequate ventilation around the unit.
