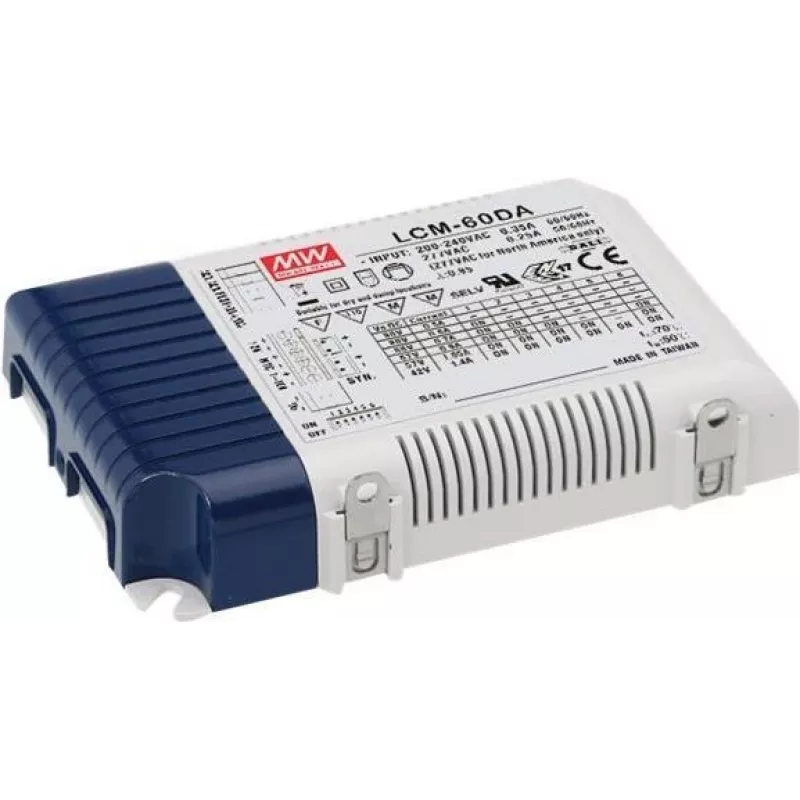

Driver LED SYNERGY21 Mean Well série LCM-60 60W 700mA regulação 0-10V

The SYNERGY21 Mean Well LCM-60 Series LED Driver is a high-performance, constant current LED driver designed for professional lighting applications. With an output power of 60W and a selectable output current via DIP switch (350mA, 500mA, 700mA, 1050mA, 1400mA), this driver offers flexibility for various LED modules. The nominal output current is 700mA, providing an output voltage range of 30-86VDC. It features 0-10VDC, PWM, or resistance dimming, active PFC (>0.95), and efficiency up to 90%. Housed in a fully isolated plastic case with IP20 rating, it ensures reliable operation in indoor environments.

Advantages

High efficiency up to 90% reduces energy loss. Active Power Factor Correction ensures compliance with harmonic regulations. Multiple dimming options (0-10V, PWM, resistance) provide versatile control. Selectable output current via DIP switch allows one driver to suit multiple LED loads. 5-year warranty guarantees long-term reliability.

Suitable for

• Indoor LED lighting fixtures
• Commercial and residential lighting
• LED panel lights, downlights, and track lighting
• Applications requiring dimmable LED drivers

Key specifications

• Output Power: 60W
• Output Current (selectable): 350mA, 500mA, 700mA, 1050mA, 1400mA
• Nominal Output Current: 700mA
• Output Voltage Range (at 700mA): 30-86VDC
• Input Voltage: 90-305VAC / 127-431VDC
• Dimming: 0-10VDC, PWM, or Resistance
• Power Factor: >0.95 at 115VAC full load
• Efficiency: Up to 90%
• Protections: Short Circuit, Over Voltage, Over Temperature
• Housing Material: Fully Isolated Plastic Case
• IP Rating: IP20
• Operating Temperature: -20°C to +90°C (case)
• No Load Power Consumption: <0.5W
• Electrical Class: Class II
• Warranty: 5 Years

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum output power. Use with compatible LED modules that match the selected current and voltage range. Suitable for dry indoor locations only.
