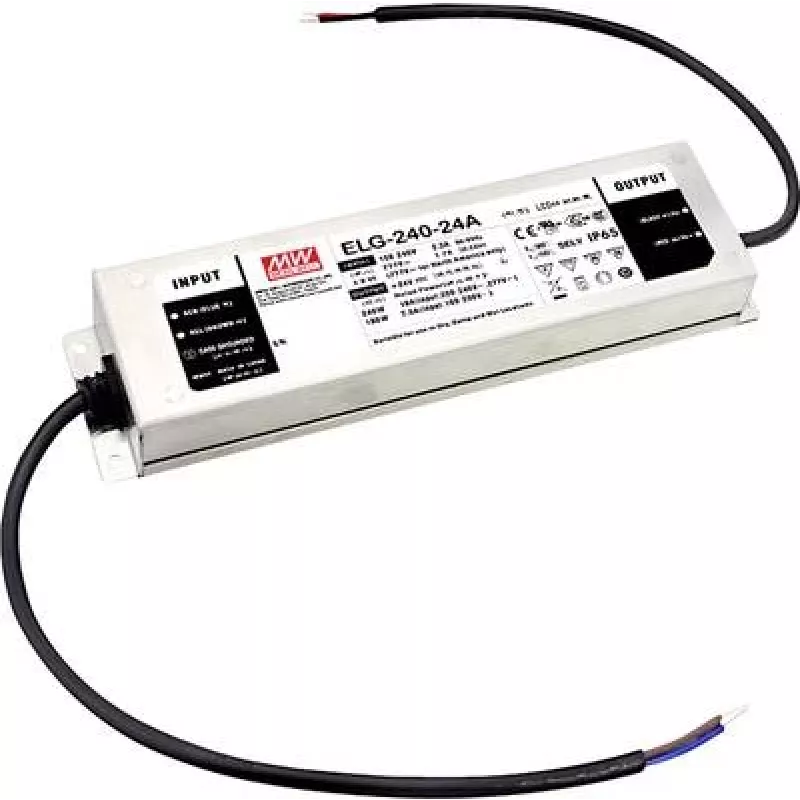

Driver LED MEAN WELL ELG-240-24-3Y potência de saída 240 W IP20

The MEAN WELL ELG-240-24-3Y is an AC-DC LED driver that delivers a single 24 VDC output with combined constant voltage and constant current (CV+CC) functionality. It provides up to 240 W of output power and a fixed constant-current limit while operating from a wide AC input range, making it suitable for a variety of LED lighting installations. The unit features a three-wire AC input, IP20-rated enclosure, and a cable output for straightforward connection.

Advantages

This LED driver offers wide input voltage compatibility (100–305 VAC) with power factor correction (PFC) for improved mains behaviour, a stable 24 VDC output at up to 10 A, and integrated CV+CC control to support a range of LED loads. Its compact dimensions allow easy integration into fixtures and housings, and cable output simplifies installation. The design emphasizes reliable continuous output up to the rated 240 W.

Suitable for

• Indoor LED lighting fixtures
• Linear LED strips and modules requiring 24 VDC
• Commercial and architectural lighting installations
• Retrofit projects where a compact 240 W driver is needed

Key specifications

• Output voltage: 24 VDC
• Maximum output current: 10 A
• Output power: 240 W
• Output mode: Combined constant-voltage and constant-current (CV+CC) with fixed CC limit
• AC input voltage range: 100–305 VAC
• Input configuration: three-wire AC input
• Ingress protection: IP20
• Output connection: cable output
• Dimensions (W×D×H): 71 × 244 × 37.5 mm

How to use

Install the driver in a location that meets the IP20 rating and provides adequate ventilation. Connect the three-wire AC input according to local electrical codes and the driver wiring diagram, then connect the 24 VDC cable output to the LED load, observing correct polarity. Ensure the total connected LED power does not exceed 240 W and that the load current does not exceed the fixed 10 A limit.

Recommendations

For reliable long-term operation, avoid mounting in damp or outdoor environments due to the IP20 rating, maintain sufficient clearance for heat dissipation, and verify compatibility of LED modules with a 24 VDC supply and the driver's CV+CC behaviour.
