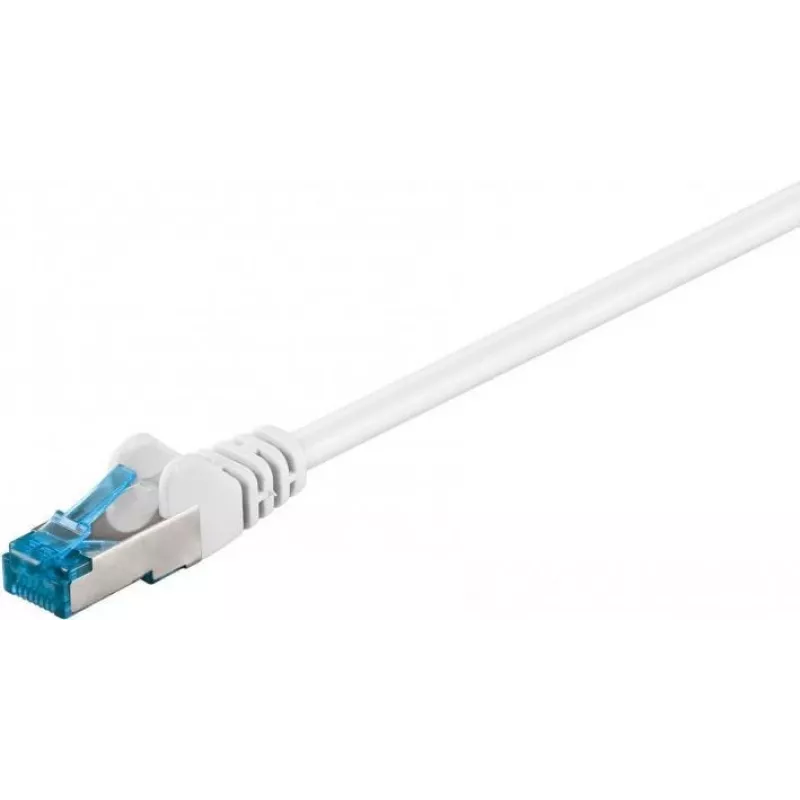

DSIT Cabo patch Ethernet CAT 6a S/FTP LSOH, 7,5 m, Branco

High-speed networking demands a cable that can keep up without compromising safety or signal integrity. The DSIT CAT 6a S/FTP LSOH Ethernet Patch Cable delivers 10 Gigabit performance over 7.5 meters, wrapped in a low-smoke zero-halogen jacket that protects both your network and your environment. Whether you're wiring a data center, upgrading an office backbone, or future-proofing your home setup, this cable ensures reliable, high-bandwidth connectivity with minimal interference.

Who is it for

IT professionals, network administrators, and tech-savvy home users who need a dependable, high-performance cable for 10GBASE-T applications. It's ideal for connecting servers, switches, routers, and workstations in environments where fire safety and low toxicity are critical, such as offices, schools, hospitals, and residential buildings.

Main features

• CAT 6a performance with 500 MHz bandwidth supports 10 Gigabit Ethernet up to 100 meters (this 7.5 m length is perfect for patch panels and short runs).
• S/FTP shielding: each twisted pair is individually foil-wrapped, and the entire cable is braid-screened, providing superior protection against EMI and crosstalk.
• LSOH (Low Smoke Zero Halogen) jacket emits minimal smoke and no toxic halogens in case of fire, meeting IEC 60332-1, IEC 61034, and IEC 60754 standards.
• Bare copper conductors (26 AWG stranded) ensure excellent conductivity and flexibility for easy routing and repeated reconnections.
• Gold-plated RJ45 male connectors on both ends with molded strain relief for durable, secure connections.
• Complies with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, and is RoHS and CE certified.

Specifications

• Cable type: Ethernet Patch Cable
• Category: CAT 6a (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 7.5 meters
• Color: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Connectors: RJ45 Male to RJ45 Male
• Conductor material: Bare Copper
• Conductor gauge: 26 AWG
• Construction: Stranded, 4 twisted pairs
• Wiring standard: TIA/EIA-568B
• Flammability: LSOH compliant (IEC 60332-1, IEC 61034, IEC 60754)
• Applications: Data centers, office networks, home networks
• Compliance: RoHS, CE, TIA/EIA-568-C.2, ISO/IEC 11801

Tips

For optimal performance, avoid sharp bends and do not exceed the minimum bend radius (typically 4x the cable diameter). When routing through walls or conduits, ensure the cable is not stretched or pinched. Pair with CAT 6a shielded connectors and patch panels to maintain the shielding continuity and achieve full 10G speeds.
