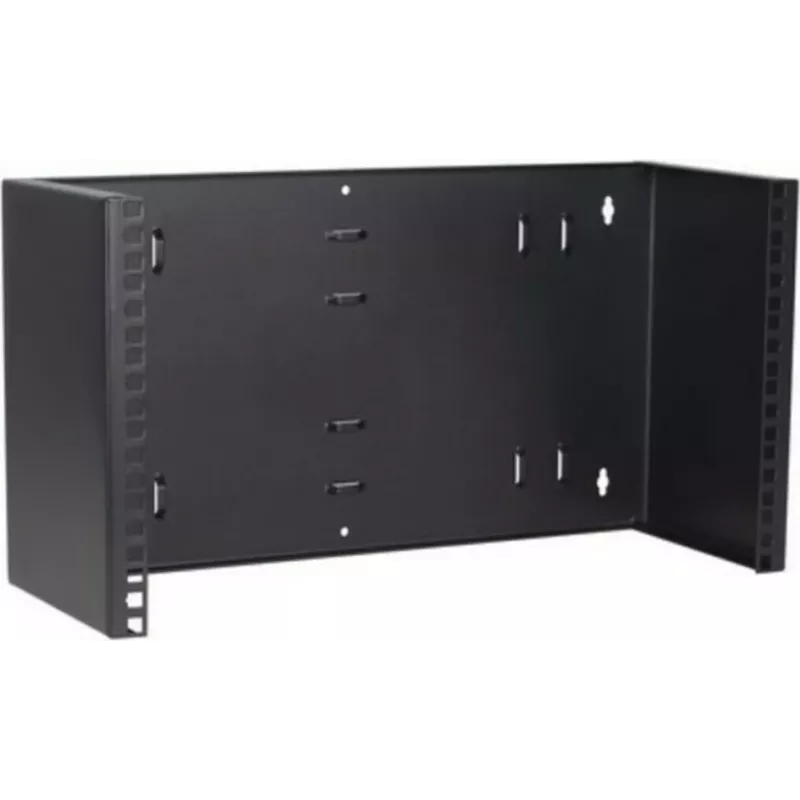

DSIT rack de estrutura aberta 19" 6U para montagem na parede, fixo, 180 mm de profundidade, preto (DS-WMB6-S)

Managing network equipment in tight spaces often means choosing between bulky floor-standing racks and flimsy makeshift mounts. The DSIT DS-WMB6-S solves this by providing a sturdy, space-saving 6U wall-mount frame that keeps your 19-inch gear secure and accessible without consuming valuable floor area. Its open-frame design offers excellent ventilation and easy cable routing, while the fixed (non-hinged) construction ensures maximum stability for permanent installations.

Who is it for

This rack is ideal for small offices, home offices (SOHO), network closets, and industrial environments where floor space is at a premium. It suits IT administrators, system integrators, and AV technicians who need to mount switches, patch panels, KVMs, small servers, or AV equipment on a wall. If you require quick access to rear connections, a hinged model might be more appropriate, but for fixed, secure mounting, this frame excels.

Main features

• 6U rack height with standard 19-inch mounting width, compatible with all EIA-310 compliant equipment.
• Fixed open-frame design with 180 mm usable depth, accommodating shallow network devices and patch panels.
• Robust welded steel construction with black powder-coated finish for durability and corrosion resistance.
• Square mounting holes accept cage nuts (not included), allowing flexible equipment installation.
• Supports up to 30 kg total load, sufficient for typical small-scale network setups.
• Passive ventilation due to open frame—no additional cooling required.

Specifications

• Rack Units: 6U
• Rack Standard: 19-inch
• Mounting Type: Wall Mount
• Frame Type: Fixed (Non-Hinged)
• Usable Depth: 180 mm
• Material: Steel
• Color: Black
• Construction: Welded Frame
• Finish: Powder Coated
• Max Load Capacity: 30 kg
• Mounting Holes: Square (for cage nuts)
• Ventilation: Passive (Open Frame)
• Compliance: RoHS, CE
• Included Accessories: Wall mounting hardware (screws, anchors)

Tips

For a clean installation, use a stud finder to locate wall studs and mount the rack securely. Consider using cage nuts and screws (not included) to match your equipment's mounting requirements. Since the frame is open, ensure cables are neatly routed and secured to maintain airflow and accessibility.
