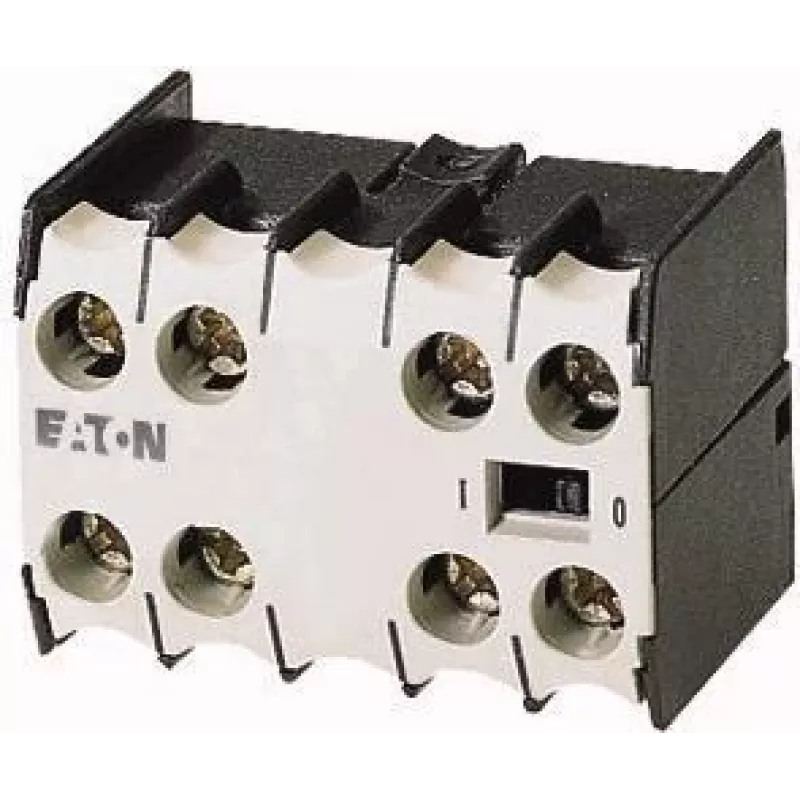

Eaton 02DILE bloco de contactos auxiliares, 2NO+2NC, montagem lateral, terminais de parafuso, preto/branco 010240

The Eaton 02DILE auxiliary contact block expands the control capabilities of Eaton DILM series contactors with four additional contacts—two normally open and two normally closed. It mounts directly onto the side of compatible contactors, providing reliable signaling and interlocking functions in industrial control circuits.

Advantages

Side mounting allows quick installation without tools, saving time during panel assembly. The screw terminals ensure secure, vibration-resistant connections. The block's compact design maintains a small footprint while delivering four auxiliary contacts for flexible circuit design.

Suitable for

• Eaton DILM7 to DILM38 contactors
• Control circuits requiring additional NO/NC contacts
• Industrial automation and motor control applications

Key specifications

• Contact configuration: 2 NO + 2 NC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 3 A
• Rated operational current (DC-13, 220 V): 1 A
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to 50 °C
• Storage temperature range: -40 to 80 °C
• Number of auxiliary contacts: 4
• Product series: DILM
• Standards: IEC/EN 60947-5-1
• Colour: black/white

Recommendations

Verify compatibility with your specific Eaton DILM contactor model before ordering. For harsh environments, consider additional protection as this block is rated IP20 and intended for use inside enclosures.
