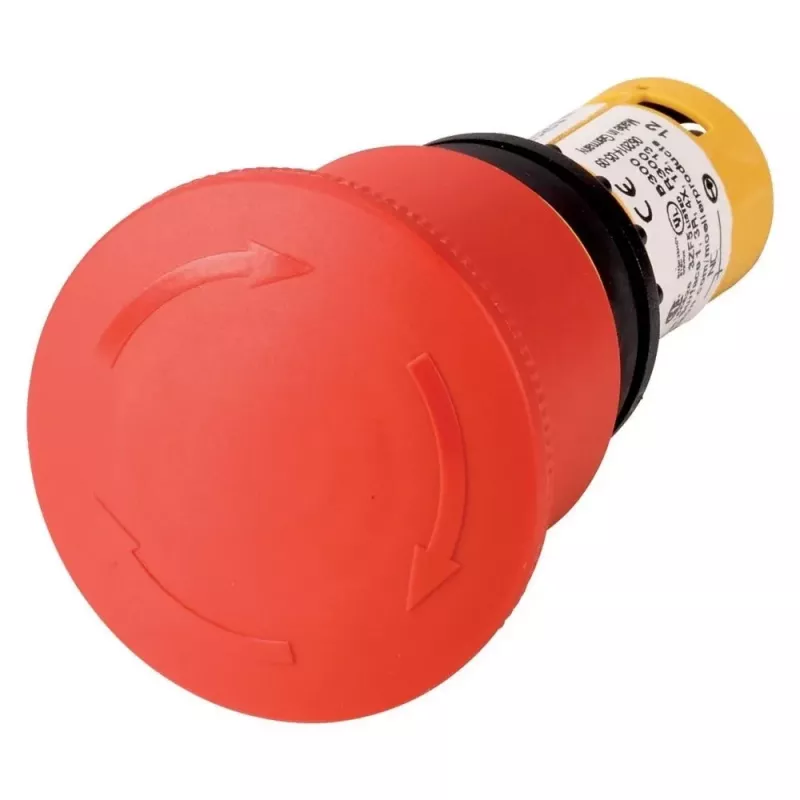

Eaton C22-PVT45P-K11 botão de paragem de emergência, 1 NC + 1 NO, desbloqueio por tração, IP66/IP67/IP69, cabeça de cogumelo vermelha 45 mm 121610

The Eaton C22-PVT45P-K11 emergency stop pushbutton stands out with its robust IP66, IP67, and IP69 ingress protection, making it suitable for demanding industrial environments where dust and high-pressure washdowns are present. Its 45 mm red mushroom head and yellow collar ensure high visibility and quick identification in critical situations.

Highlights

• Pull-to-release mechanism prevents accidental reset
• Contact configuration: 1 normally closed (NC) and 1 normally open (NO)
• Mounting hole diameter: 22.5 mm
• Screw terminals for secure wiring
• Wide operating temperature range: -25°C to +70°C

In daily use

Designed for panel mounting, this emergency stop switch provides reliable operation with a mechanical life exceeding 100,000 operations. The mushroom head actuator is easy to press in emergencies, and the pull-to-release feature ensures the machine remains stopped until intentionally reset.

Full specifications

• Product type: Emergency stop pushbutton
• Series: C22
• Actuator type: Mushroom head
• Actuator diameter: 45 mm
• Contact configuration: 1 NC + 1 NO
• Mounting hole diameter: 22.5 mm
• Ingress protection: IP66, IP67, IP69
• Actuator colour: Red
• Collar colour: Yellow
• Rated operational voltage: Max 500 V AC/DC
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Terminal type: Screw terminals
• Operating temperature range: -25°C to +70°C
• Mechanical life: >100,000 operations

Final note

This Eaton emergency stop switch is engineered for reliability in harsh conditions, meeting international standards for industrial control devices.
