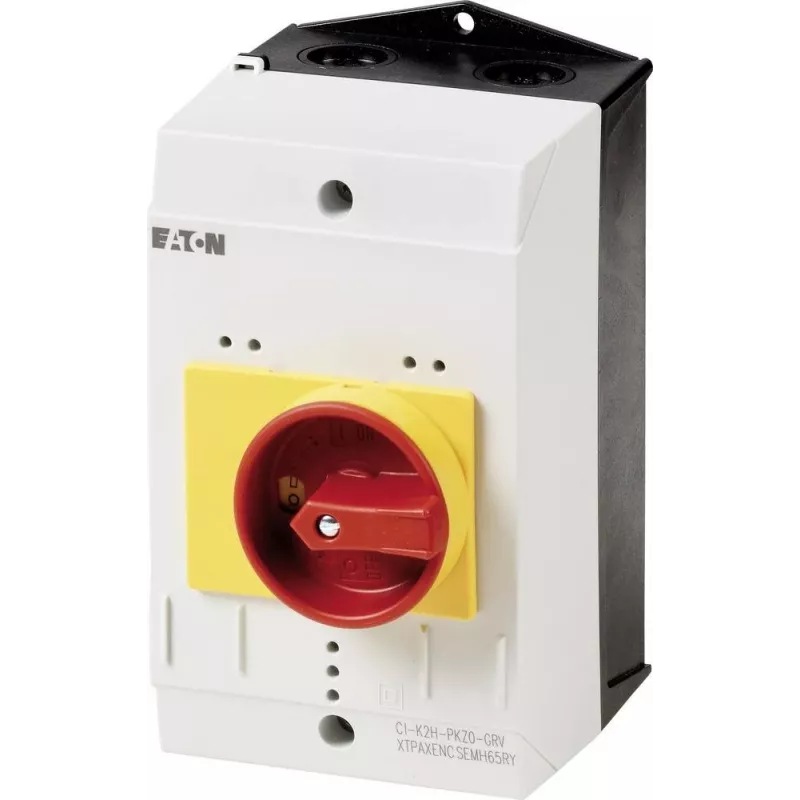

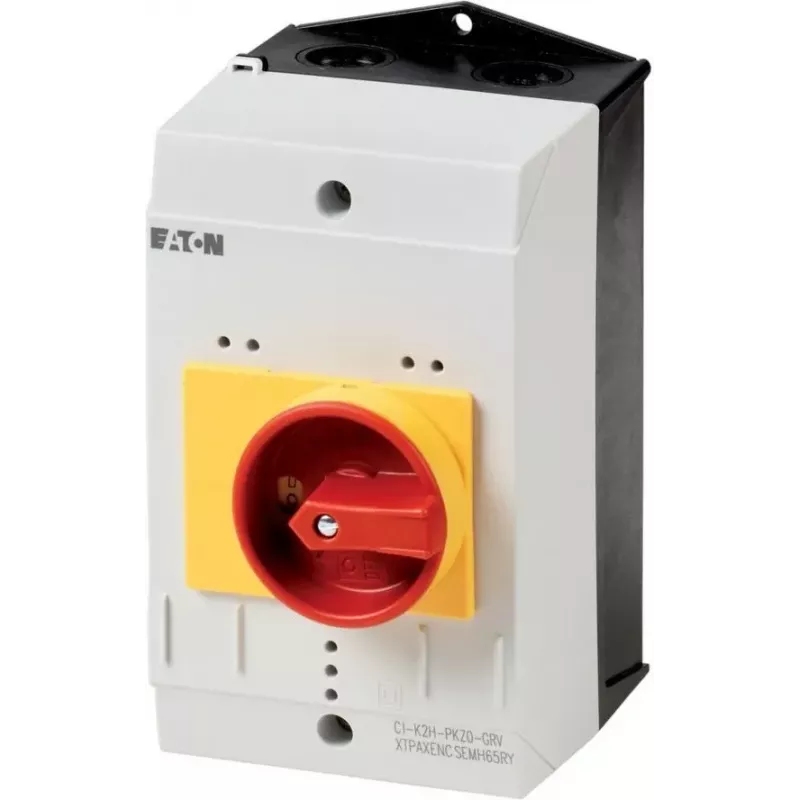

Eaton CI-K2-PKZ0-NA-GR caixa vazia com botão de emergência, 160 x 100 x 100 mm, amarelo/vermelho 262681

In industrial control panels and machine safety applications, the Eaton CI-K2-PKZ0-NA-GR provides a ready-to-install emergency stop station. This surface-mount enclosure combines a yellow insulated plastic housing with a red emergency stop actuator, designed for use with PKZ0 motor protective circuit breakers. Its compact 160 x 100 x 100 mm dimensions suit control circuits where space is limited.

Key specifications

• Enclosure type: Control circuit device enclosure
• Function: Emergency stop
• IP protection rating: IP65
• External dimensions (L x W x H): 160 x 100 x 100 mm
• Enclosure material: Insulated plastic
• Enclosure colour: Yellow
• Emergency stop button colour: Red
• Number of actuators: 1 (emergency stop)
• Compatibility: For PKZ0 motor protective circuit breakers
• Mounting type: Surface mount
• Operating temperature: -25 to +70 °C
• Series: CI
• Construction: 1-part enclosure
• Insulation: Double insulated

Why choose it

The enclosure offers double insulation and IP65 protection, making it suitable for demanding industrial environments. Its compatibility with PKZ0 breakers simplifies integration into existing motor control circuits.

Ideal use cases

• Machine safety emergency stop stations
• Industrial control panels
• Motor control circuit protection

Good to know

The enclosure is part of the Eaton CI series and meets IEC/EN 60947 and VDE 0660 standards. It is designed for surface mounting and operates reliably from -25 to +70 °C.
